Fully Automatic Working Radar Auxiliary Collision Avoidance Radar HLD-RADAR 900/900C-Highlander

Product Features

Automatic Tuning

Dynamic automatic tuning keeps the radar in real time at its best performance for optimal target detection.

Automatic Clutter Suppression

Automatic Sea & Rain Clutter Suppression allows the radar performance to automatically adapt to different sea states, vessel types and installation limitations.

Automatic Target Acquisition

Radar targets are automatically acquired whenever they are within the defined zone. Up to 10,000 targets are automatically tracked.

Automatic Collision Avoidance Alarm

Collision Avoidance Alarm is automatically triggered whenever dangerous targets are detected via preset collision avoidance CPA/TCPA parameters.

Automatic Collision Avoidance Decision Support

The automatic auxiliary collision avoidance system utilizes the static and dynamic data of the own vessel and target vessels provided by the magnetron radar, and, through continuous computation of the collision avoidance algorithm, provides the crew with reasonable collision avoidance suggestions. The crew can quickly evaluate these algorithm-based recommendations and take appropriate actions, thereby improving decision-making efficiency and navigation safety.

Target Fusion

Target Fusion prevents confusion of radar targets and AIS targets while optimizing radar display.

Information Display

Multiple AIS Information Displays.

Menu Language

Selectable between English & Chinese.

AIS integrated with ARPA

Target Correlation: AIS Priority

ARPA integrated with AIS

Target Correlation: Radar Priority

Multi-Function Display

A multi-function workstation with flexibility and redundancy, allowing easy selection on any multi-function display among Chart Radar, Conning or Alert Management System.

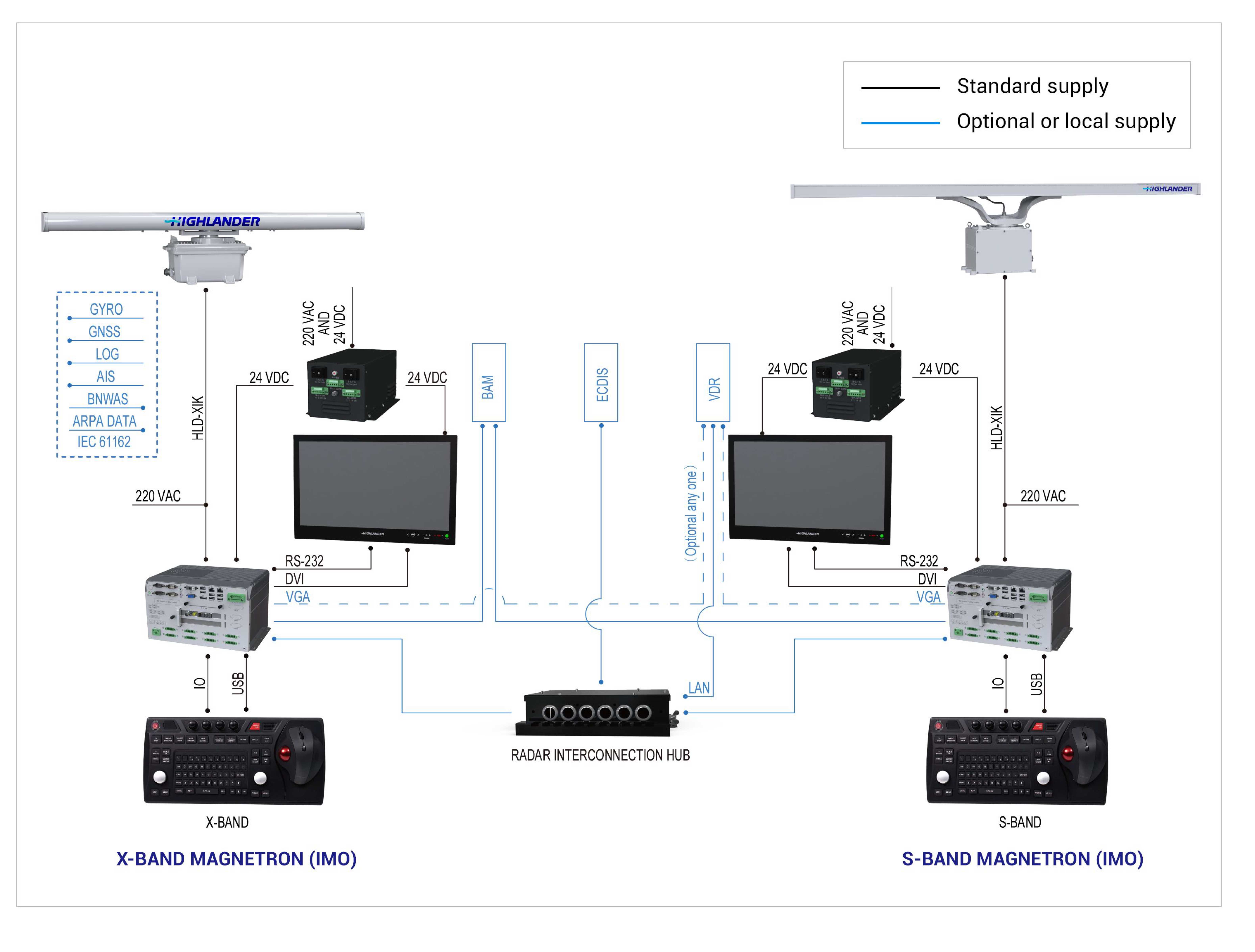

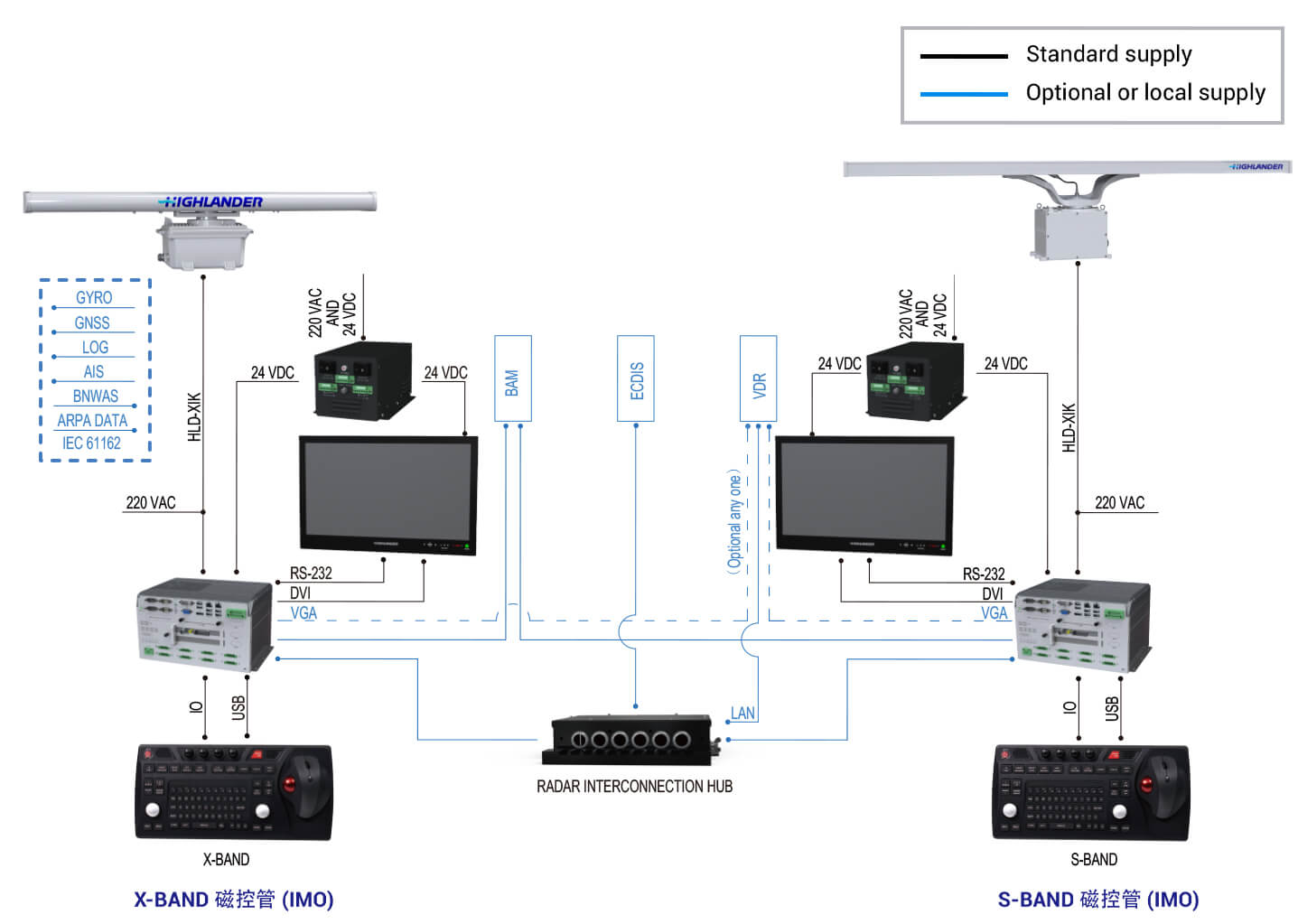

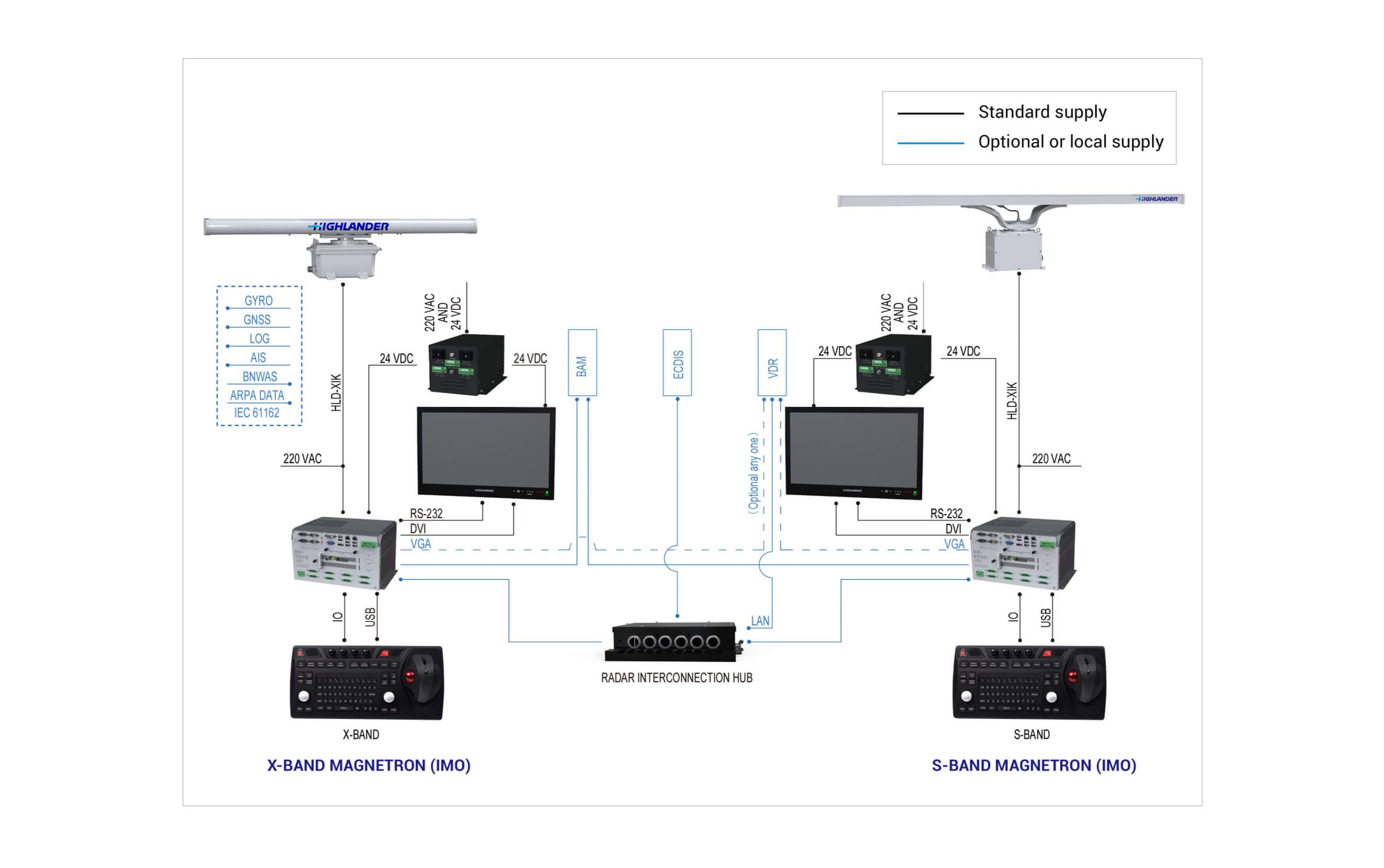

Product Configuration

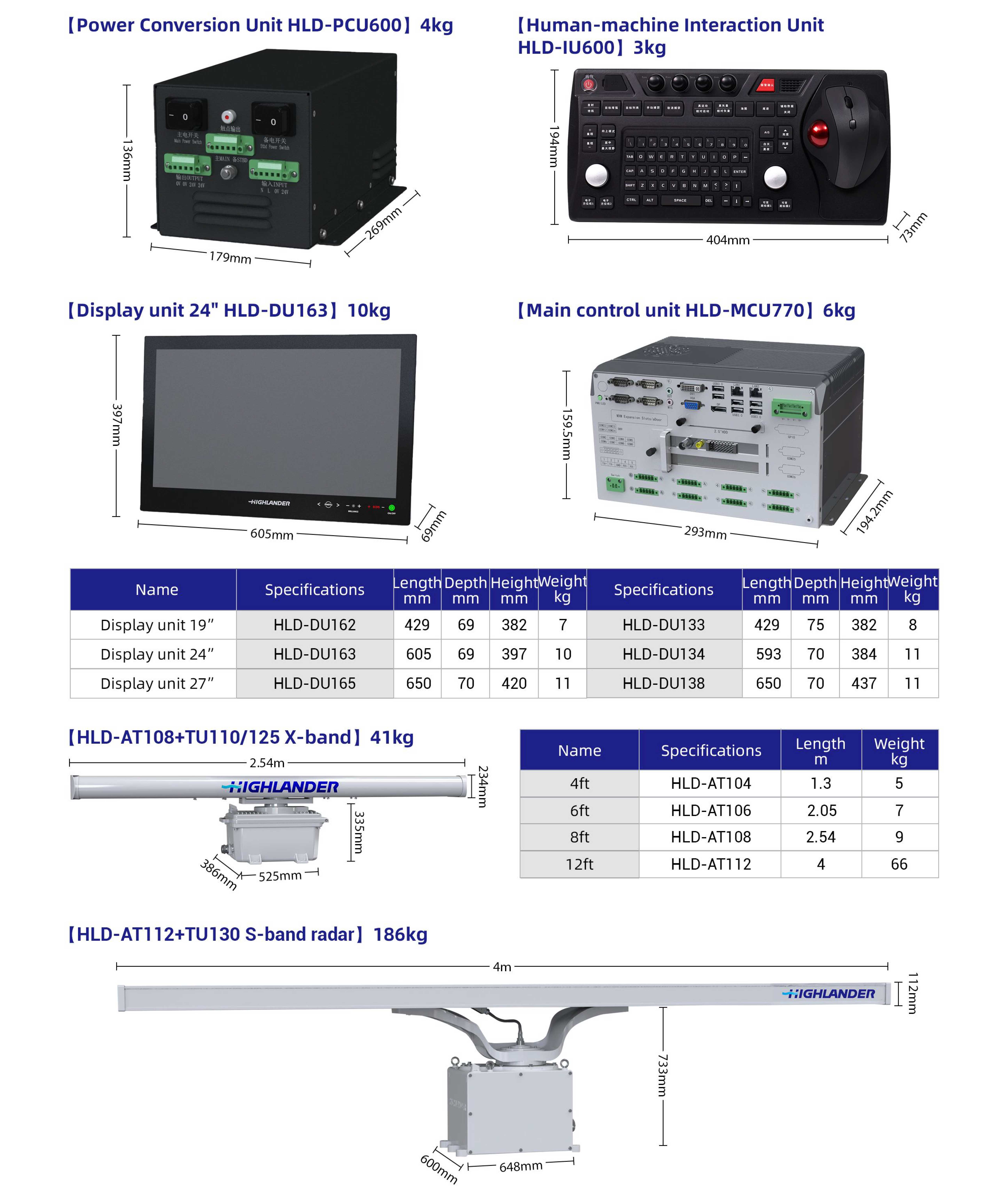

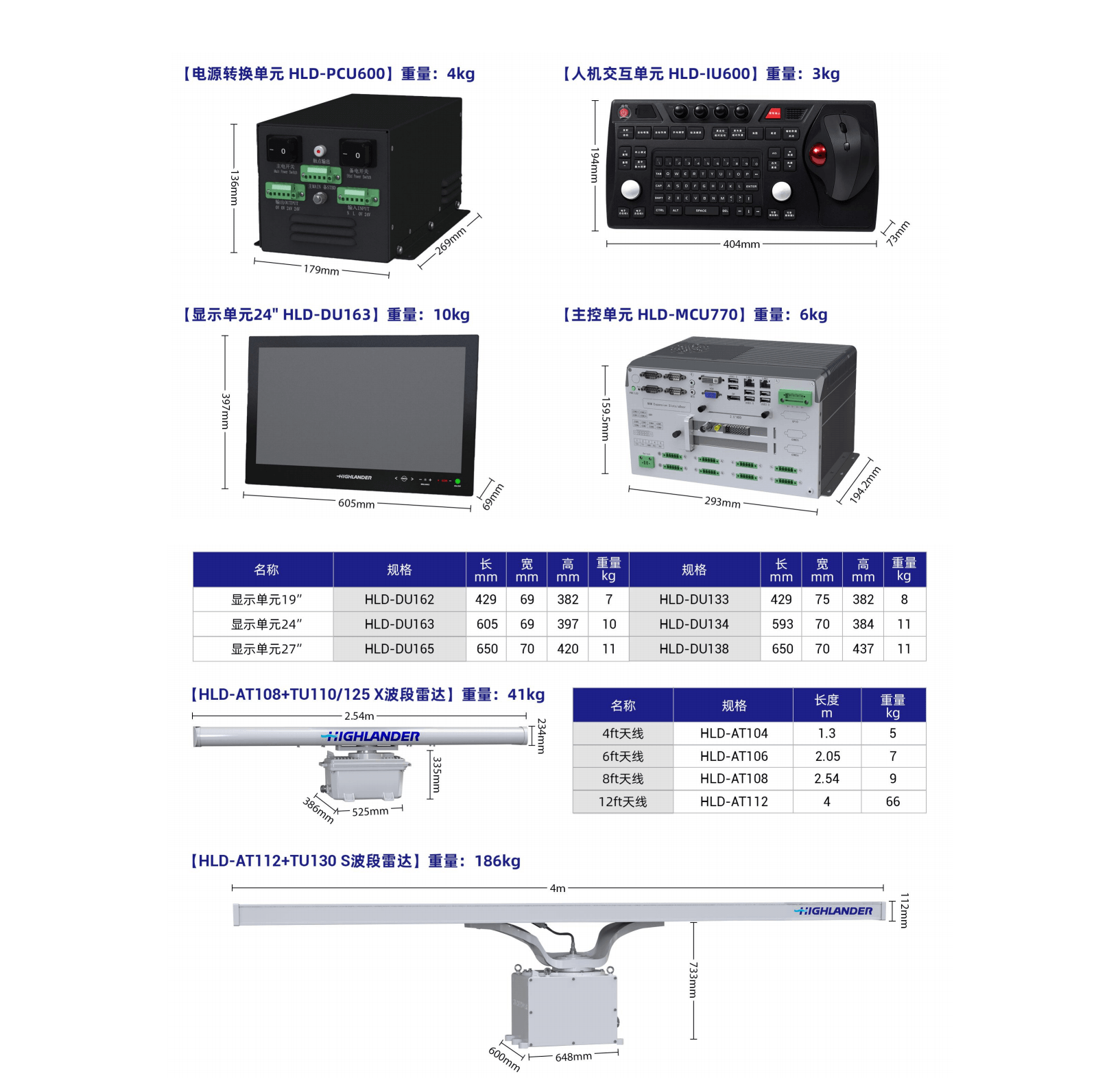

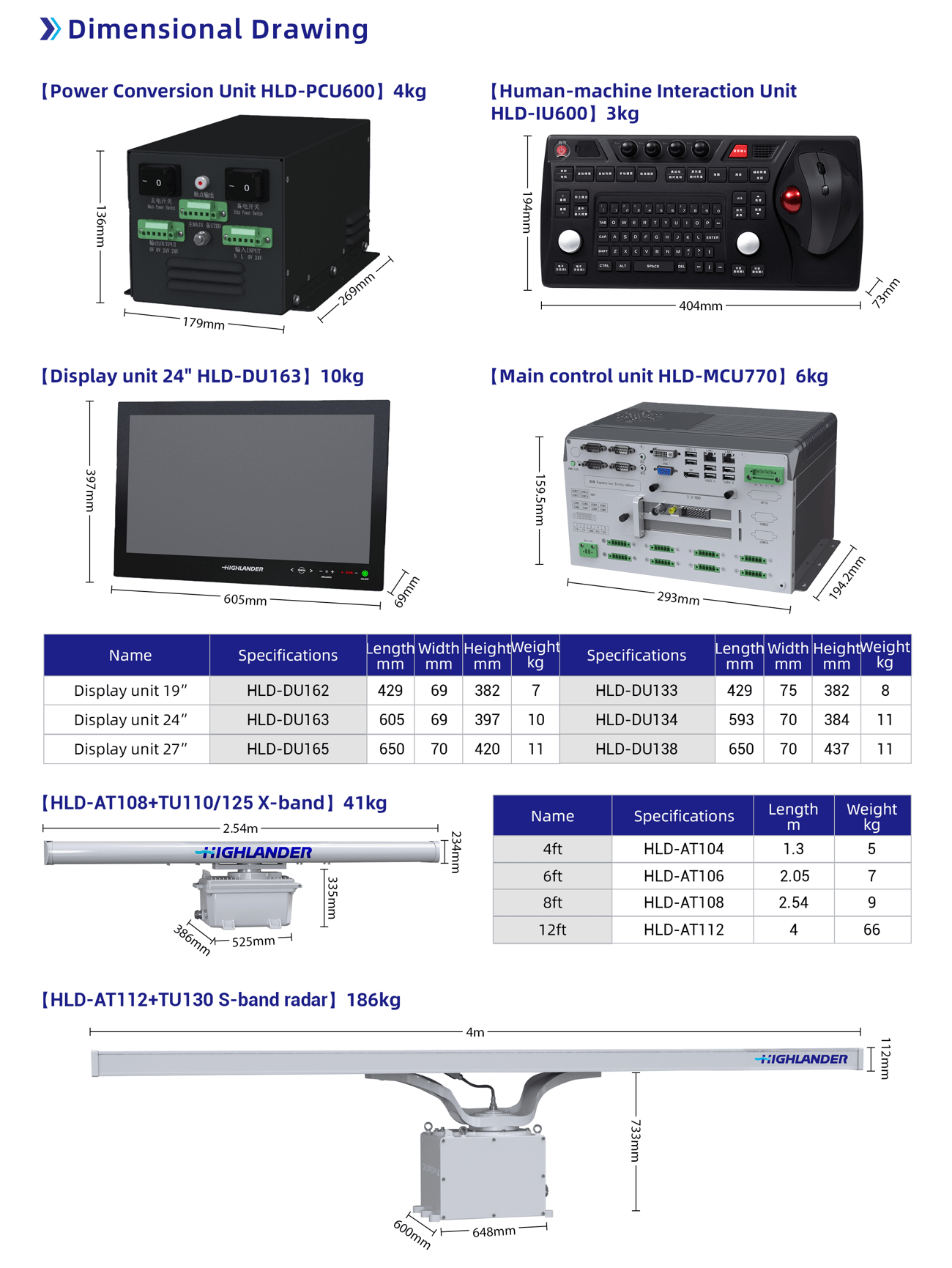

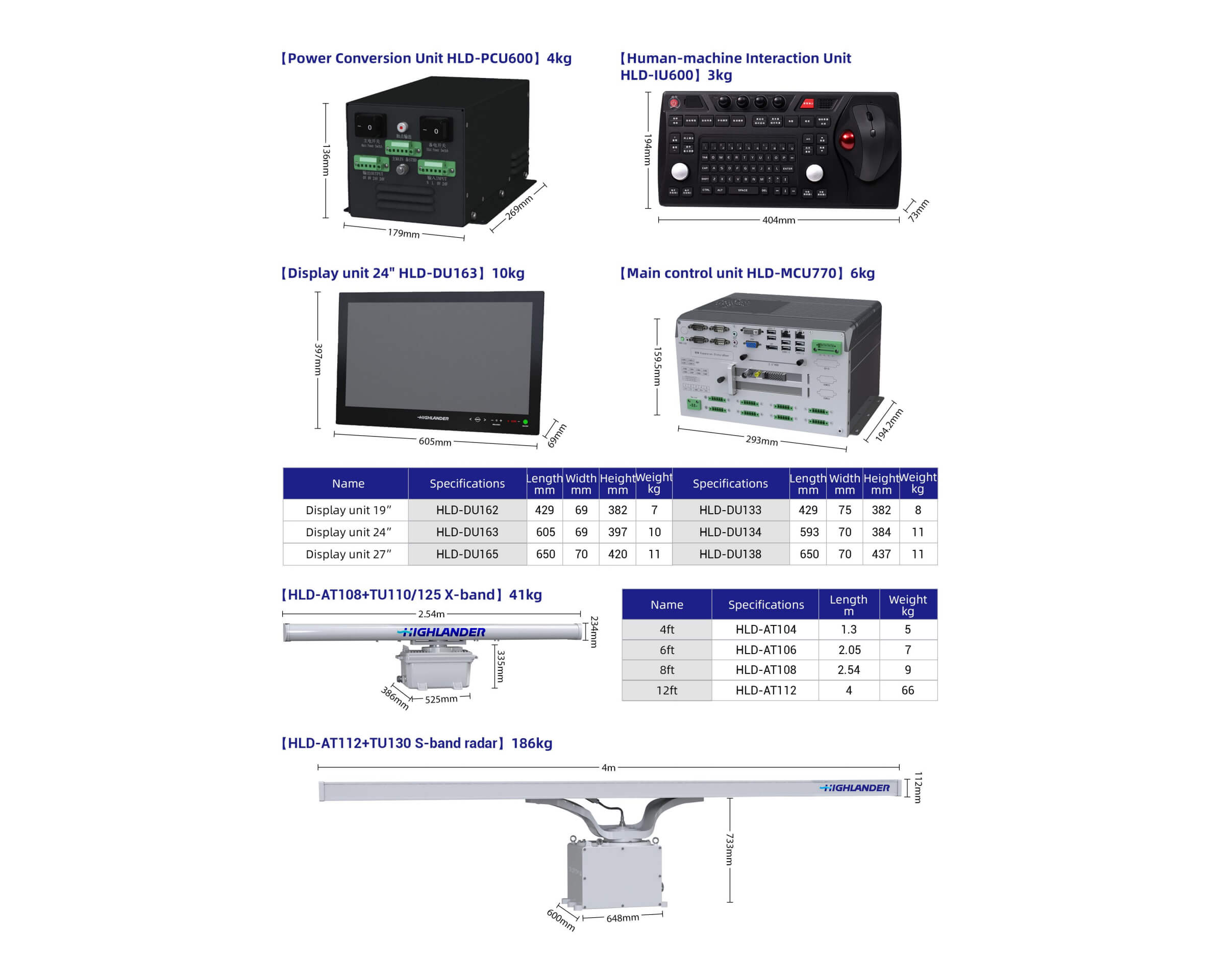

HLD-RADAR 900-X (X-BAND) Configuration

Antenna:

HLD-AT104/106/108

Transceiver Unit:

HLD-TU110/125

Display Unit:

HLD-DU162/163/165

HLD-DU133/134/138

HMI Unit:

HLD-IU600

Main Control Unit:

HLD-MCU770

Power Conversion Unit:

HLD-PCU600

Optional HLD-RADAR 900-X (X-BAND) Configuration

ECDIS Key HLD-LIC900

Console (with Visor)

Tabletop Stand

De-icing Device

HLD-RADAR 900-S (S-BAND) Configuration
