Home Products & Services Navigation Products Doppler Log HLD-DSL 600
Technical Parameters Dimension Diagram
Expert Consultation

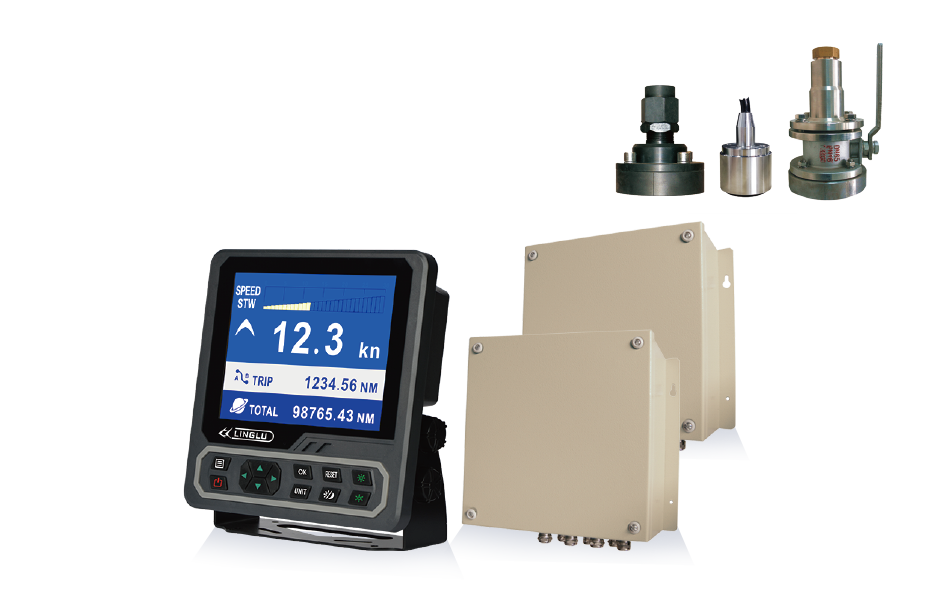

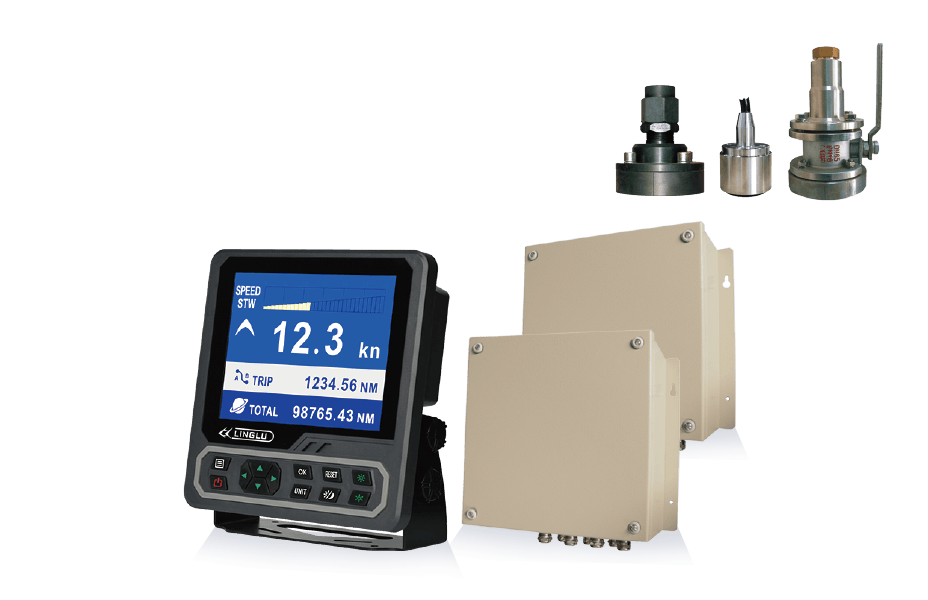

Doppler Log HLD-DSL 600
HLD-DSL 600 Doppler Log
Sales: 18149706718
Maintenance: 18074089111
Related Solutions
Doppler Log HLD-DSL 600
Technical Parameters
Technical Specifications
Technical Specifications
Display:

8-inch TFT, 800×600 pixels

Power Supply:

AC 220V, 50/60Hz

Data Output:

IEC 61162-1 VBW, VLW

Trip Log:

0 to 9999.99 NM (resettable)

Total Log:

0 to 999999.99 NM

Distance Accuracy:

0.2 NM or 2%, whichever is greater

Speed Accuracy:

0.2 kn or 2%, whichever is greater

Speed Range:

-10kn ~ +40kn

Operating Temperature:

-15°C ~ +55°C

Humidity:

10~90% RH, non-condensing

Protection Rating:

Display: IP23, Transceiver: IP56, Transducer: IP68

Gross Weight:

22kg

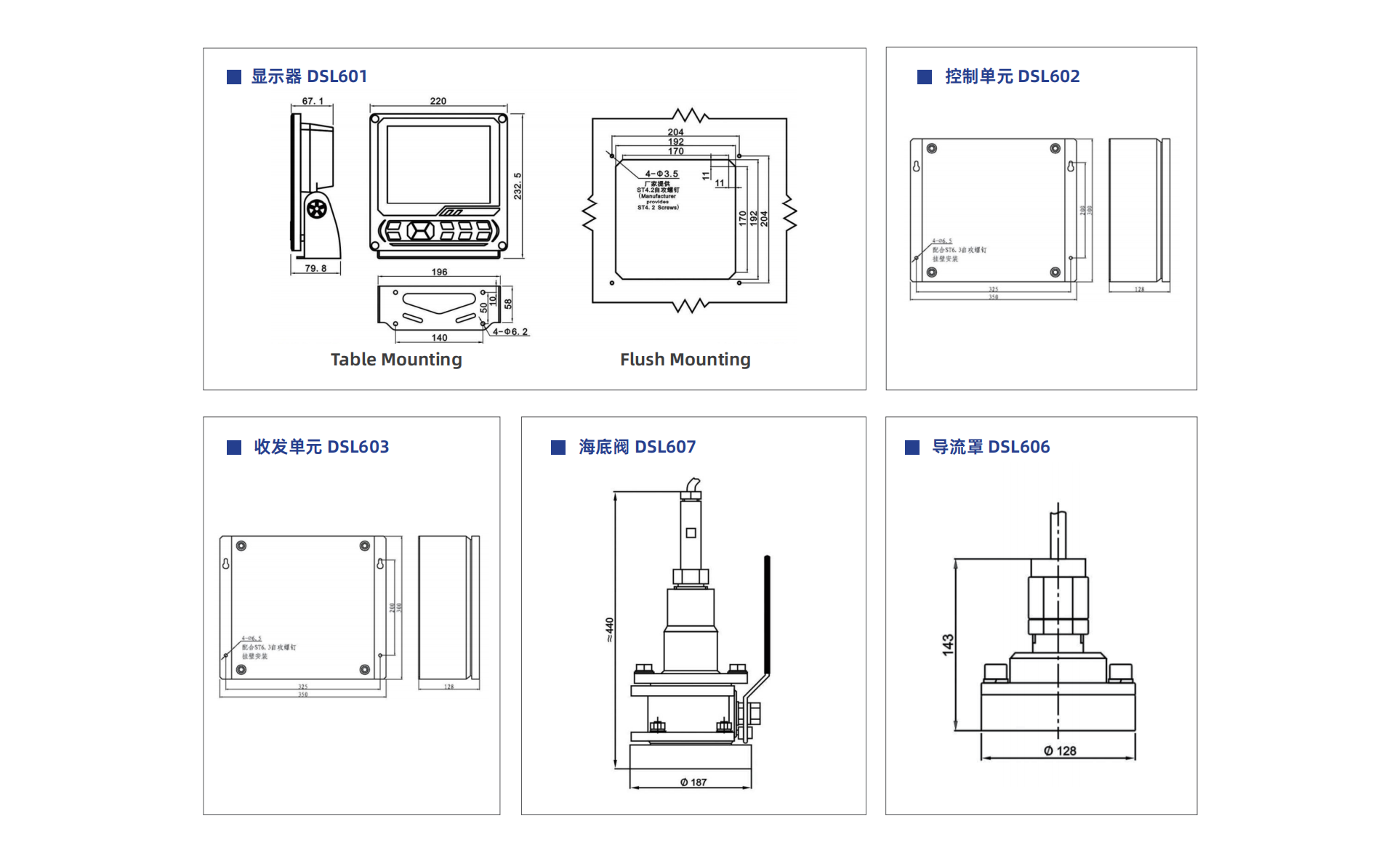

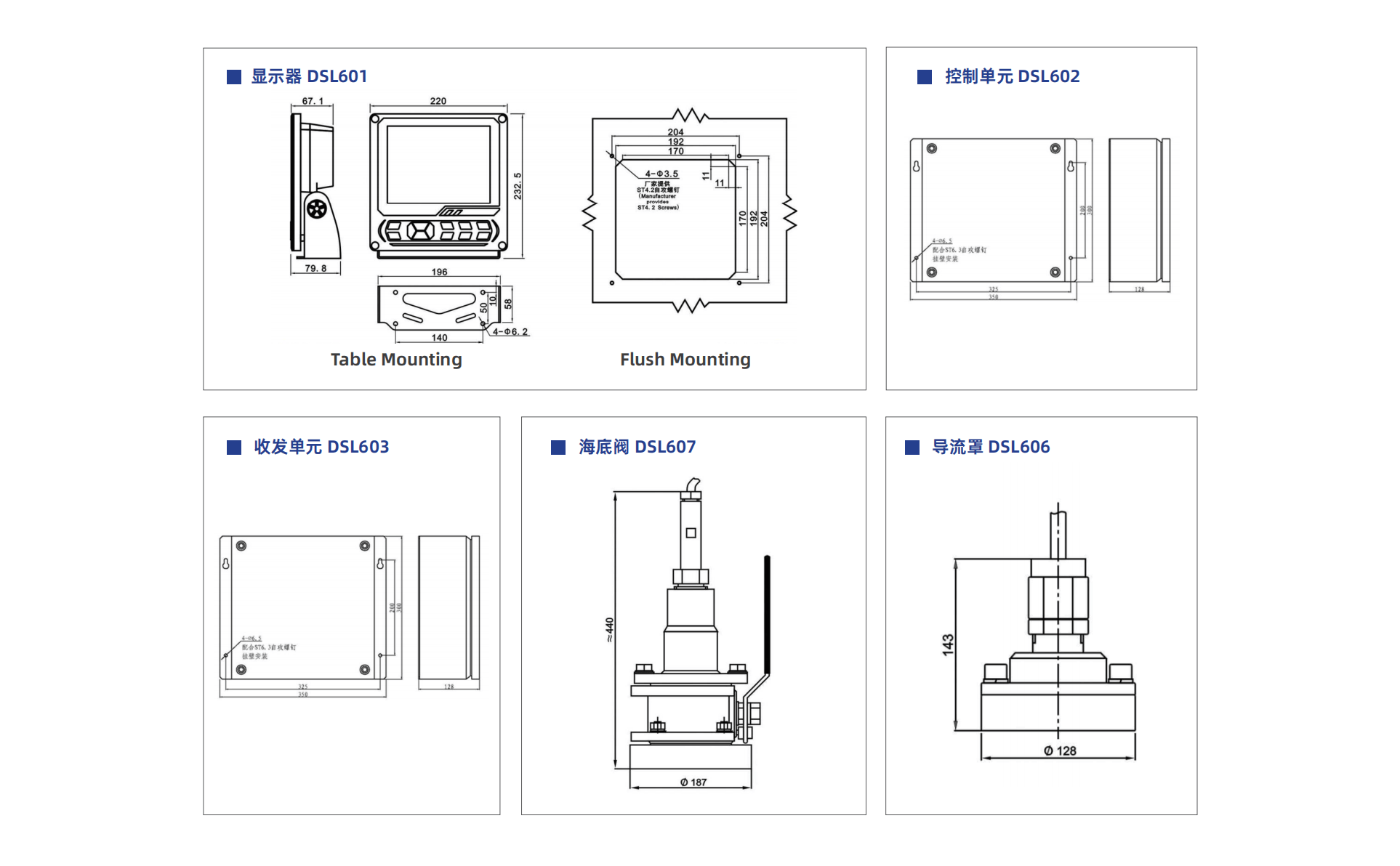

Dimension Diagram
Dimension Diagram
