Home Products & Services Navigation Products Weather Instrument Repeater HLD-AMD 602
Technical Parameters Dimension Diagram
Expert Consultation

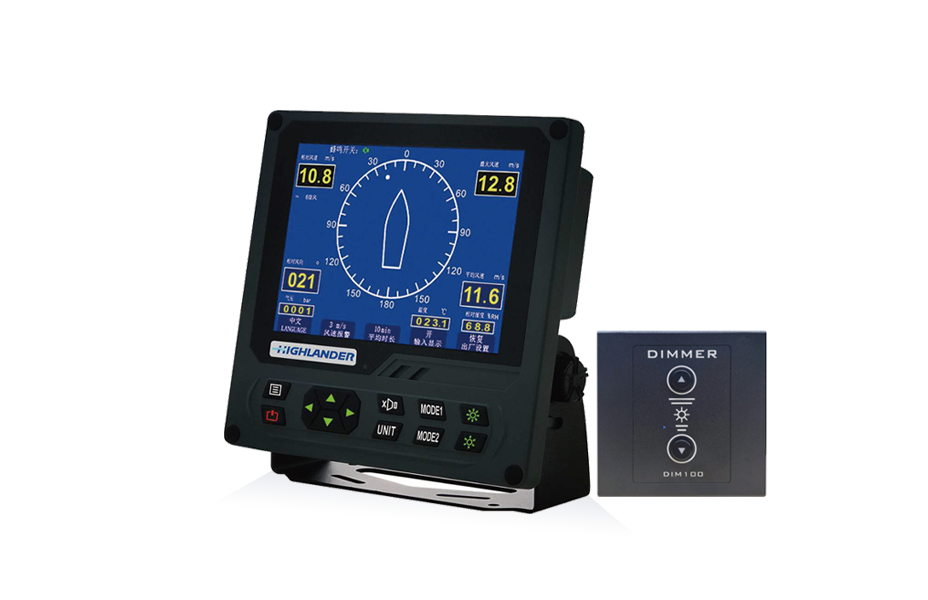

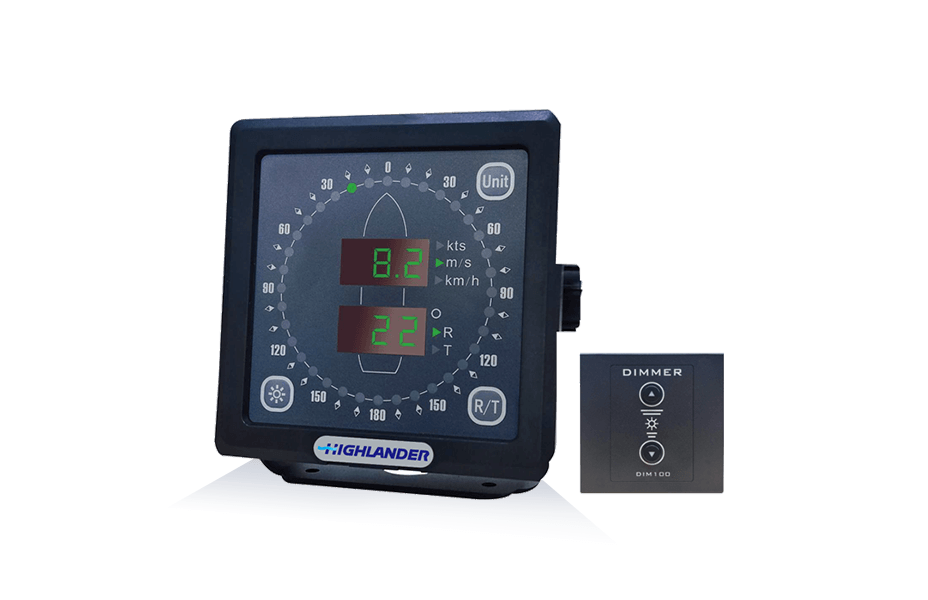

Weather Instrument Repeater HLD-AMD 602
HLD-AMD602 Weather Instrument Repeater
Sales: 18149706718
Maintenance: 18074089111
Related Solutions
Weather Instrument Repeater HLD-AMD 602
Technical Parameters
Technical Specifications
Technical Specifications
Dimensions:

220mm(W) × 232.5mm(H) × 79.8mm(D)

Display Angle:

000~359°

Protection Rating:

IP23

Gross Weight:

1.0kg

Operating Temperature:

-25°C ~ +55°C

Wind Speed/Direction Data:

$--MWV,x.x,a,x.x,a,A*hh**<CR><LF>

Humidity Data Input:

$--MTA,x.x,C*hh**<CR><LF>

Barometric Pressure Data Input:

$--MMB,x.x,l,x.x,B*hh<CR><LF>

Temperature Data Input:

$--MTA,x.x,C*hh<CR><LF>

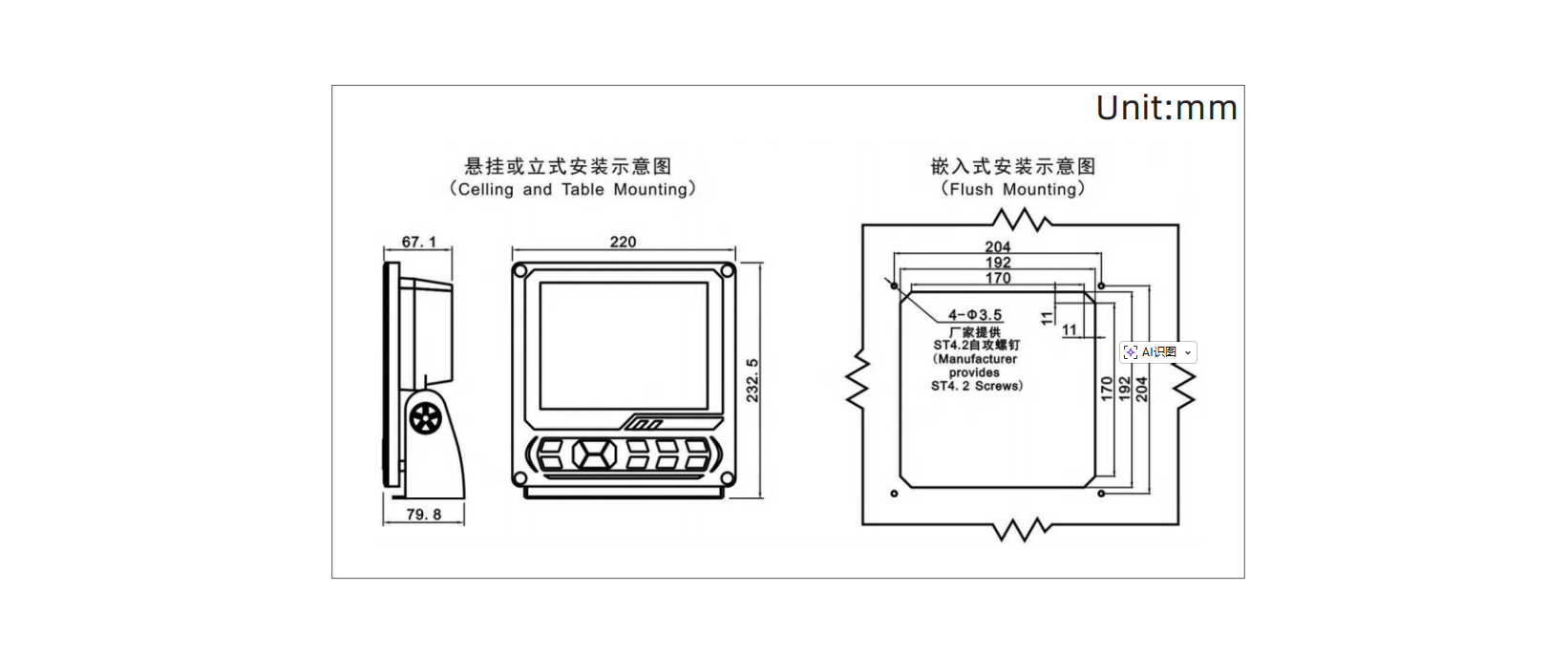

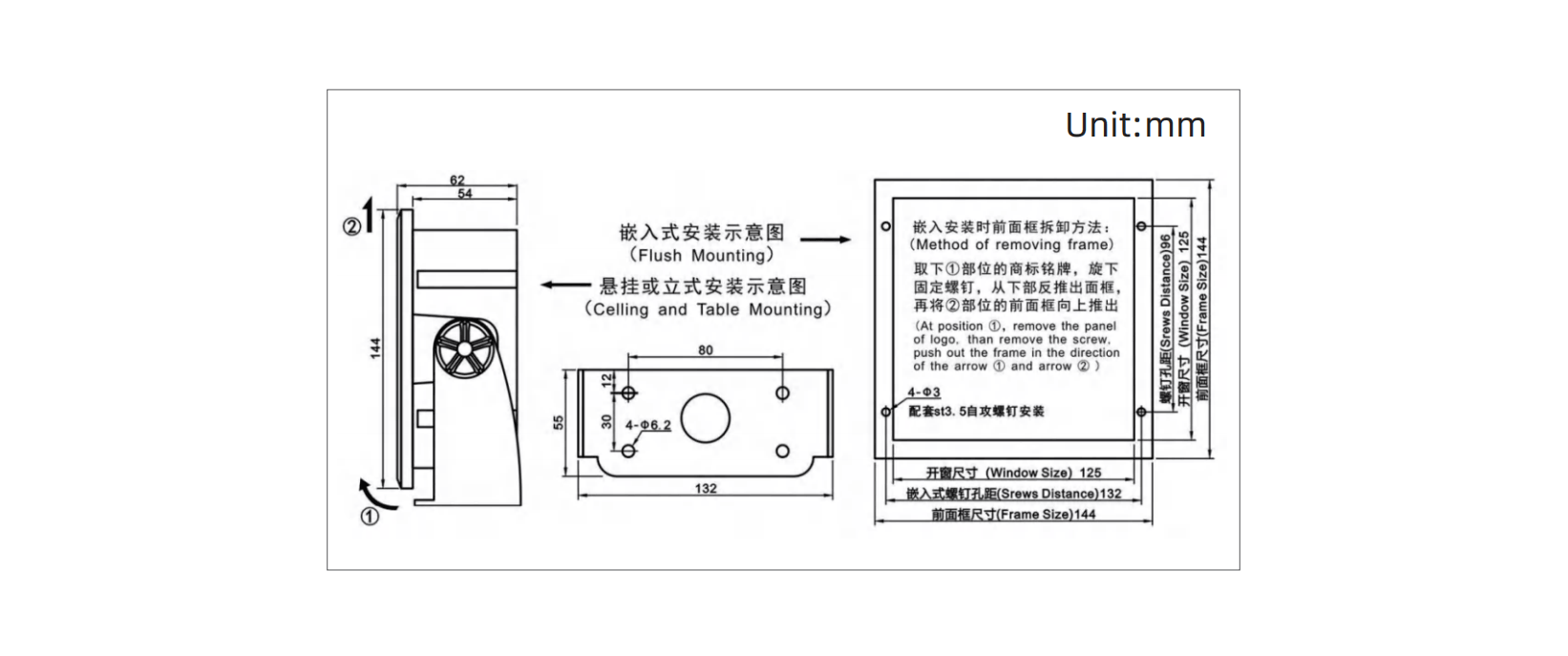

Dimension Diagram
Dimension Diagram
