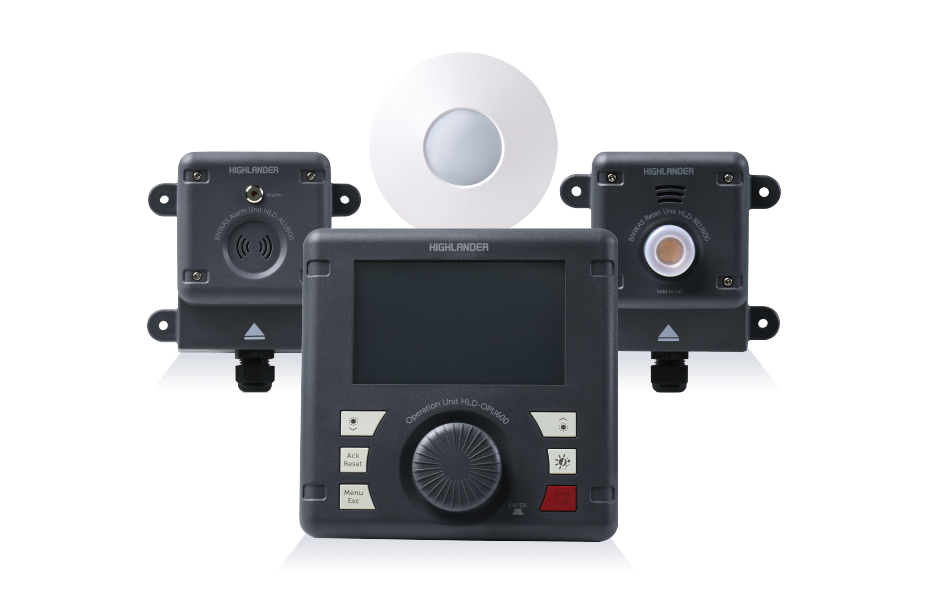

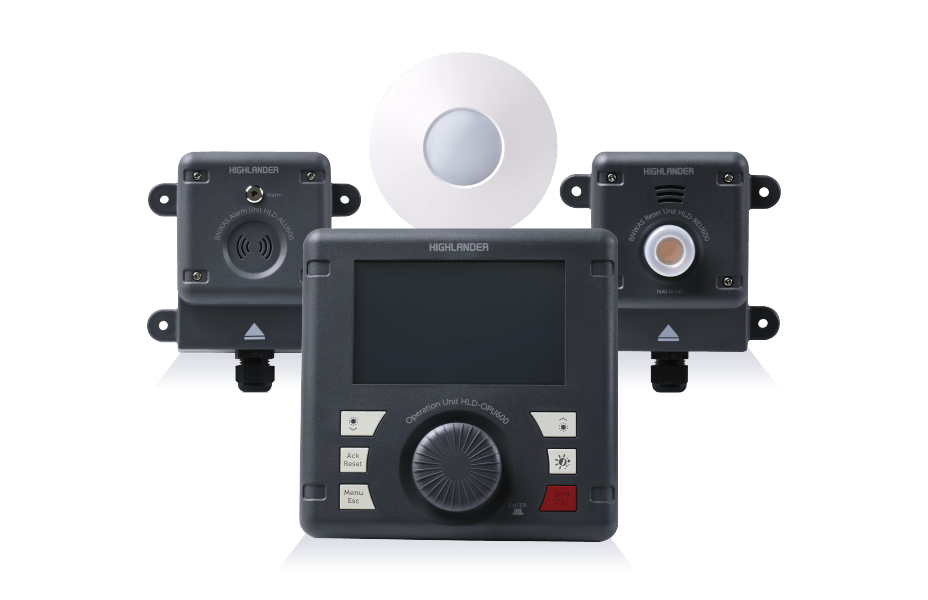

BRIDGE NAVIGATIONAL WATCH ALARM SYSTEM HLD-BNWAS 600

The Bridge Navigational Watch Alarm System (BNWAS) is designed to monitor bridge activity and avoid maritime accidents. The system monitors the alertness of the Officer of the Watch (OOW); should the OOW become unable to perform his duties for any reason, it will automatically alert the master or another competent OOW.

Sales: 18149706718

Maintenance: 18074089111

Downloads

BRIDGE NAVIGATIONAL WATCH ALARM SYSTEM HLD-BNWAS 600

Product Overview

The Bridge Navigational Watch Alarm System (BNWAS) is designed to monitor bridge activity and avoid maritime accidents. The system monitors the alertness of the Officer of the Watch (OOW); should the OOW become unable to perform his duties for any reason, it will automatically alert the master or another competent OOW.

The HLD-BNWAS 600 is Highlander's second-generation bridge navigational watch alarm system. It fully complies with IMO regulations and classification society rules, and can be installed on all types of vessels.

Product Features

Dual-Mode Touch Screen

Dual-Mode Touch Screen

800 × 480 high-resolution colour touch-screen, supporting both touch-screen and physical-button dual-mode operation for an enhanced human-machine interaction experience.

Day/Night Display Modes

Day/Night Display Modes

Simple and clean operation interface; convenient switching between day and night display modes, suitable for night-voyage requirements.

Revolving Warning Light

Revolving Warning Light

Revolving warning light provides better visual indication.

Visual-Audible Reset Unit

Visual-Audible Reset Unit

Reset unit integrates visual and audible alarm functions.

High-Sensitivity Motion Sensor

High-Sensitivity Motion Sensor

High-sensitivity motion detection sensor.

Two-Stage Alarm Design

Two-Stage Alarm Design

Unique two-stage alarm design, supporting individual call and simultaneous call.

Optional Battery Unit

Optional Battery Unit

Optional battery unit.

IEC 61162 / Dry-Contact Input

IEC 61162 / Dry-Contact Input

External device signal input in IEC 61162 format or dry-contact form.

Technical Parameters

HLD-BNWAS 600

HLD-BNWAS 600

Performance:

MSC.128(75); IEC 62616-2010, etc.

EMC/EMI Standard:

IEC 60945 ed.4.0:2002

Power Supply:

Main supply AC 110/220 V, 50 Hz and emergency supply DC 24 V, dual-input automatic switching; power consumption < 30 W

Inputs:

Autopilot, GPS, Radar, ECDIS (digital signal or contact signal)

Output:

VDR (digital signal); other alarm system (alarm signal and/or system failure alarm

Reset Interval:

3–12 min adjustable

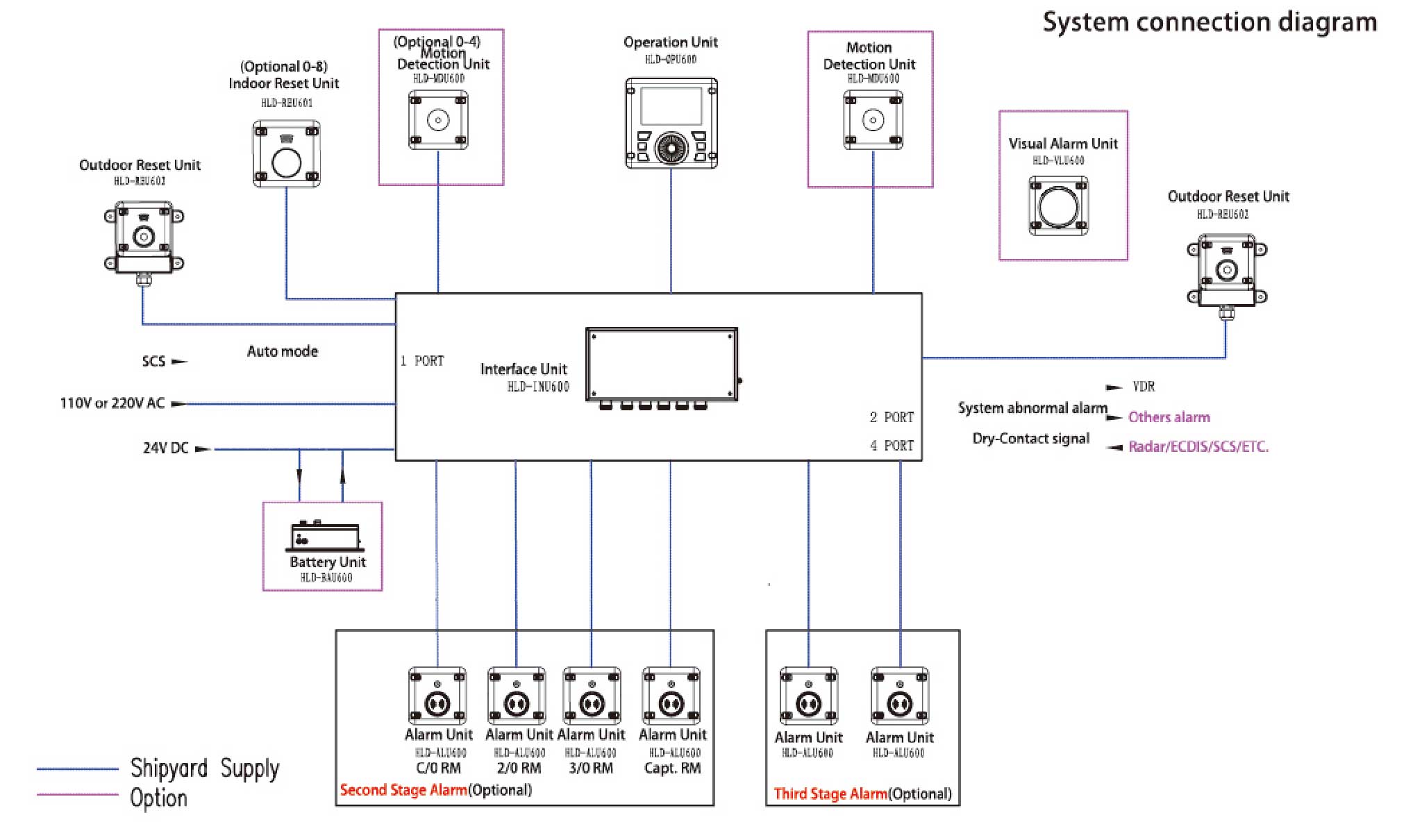

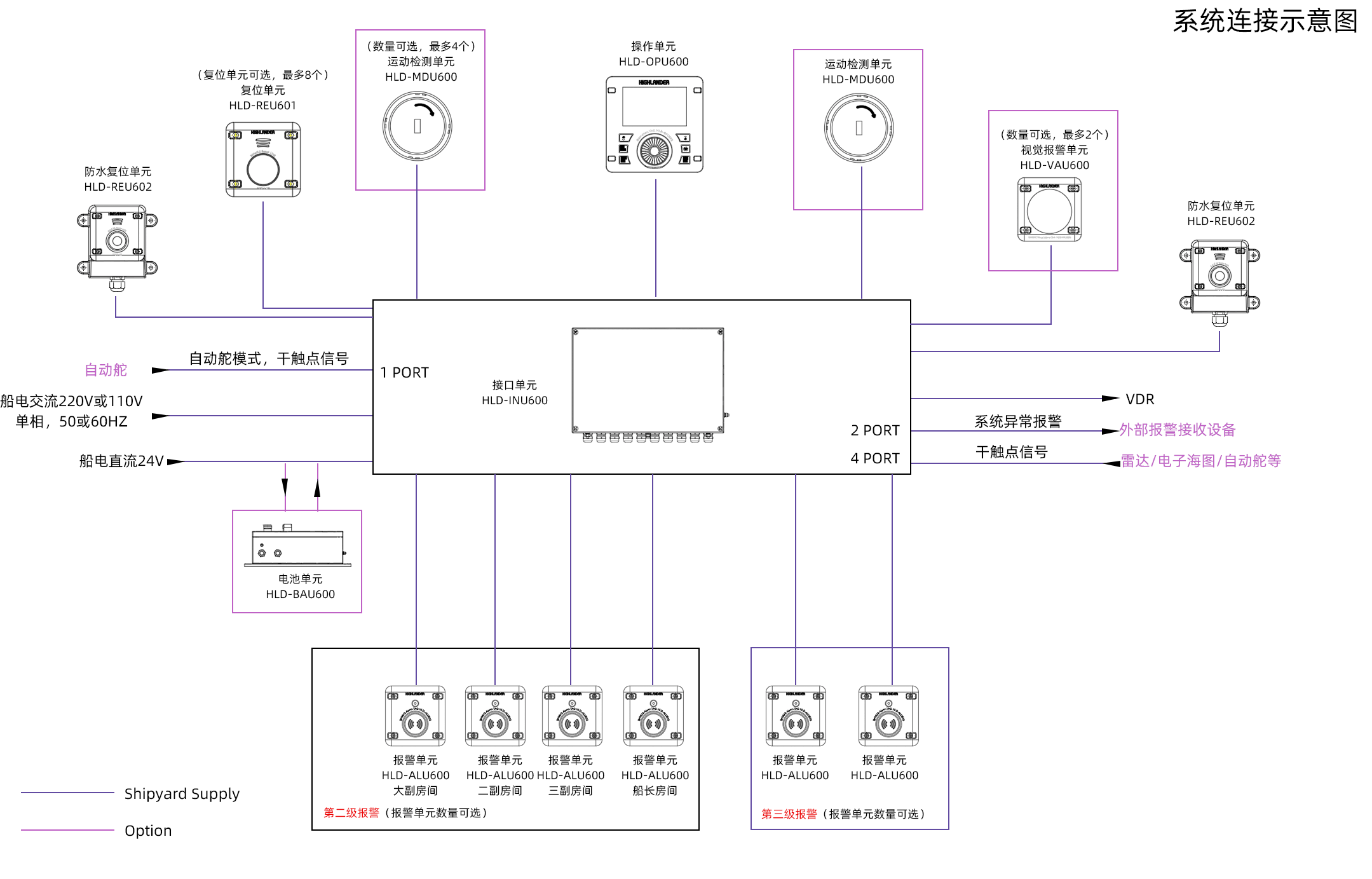

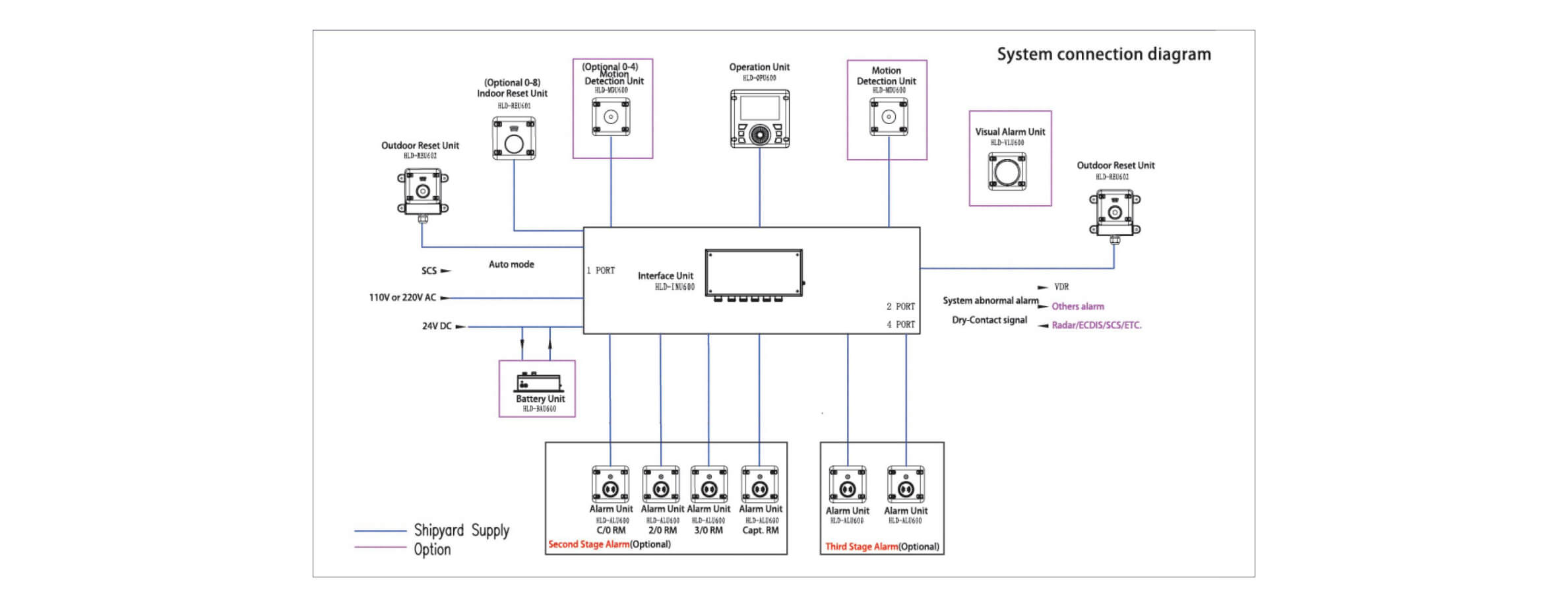

Product System Diagram

Product System Diagram

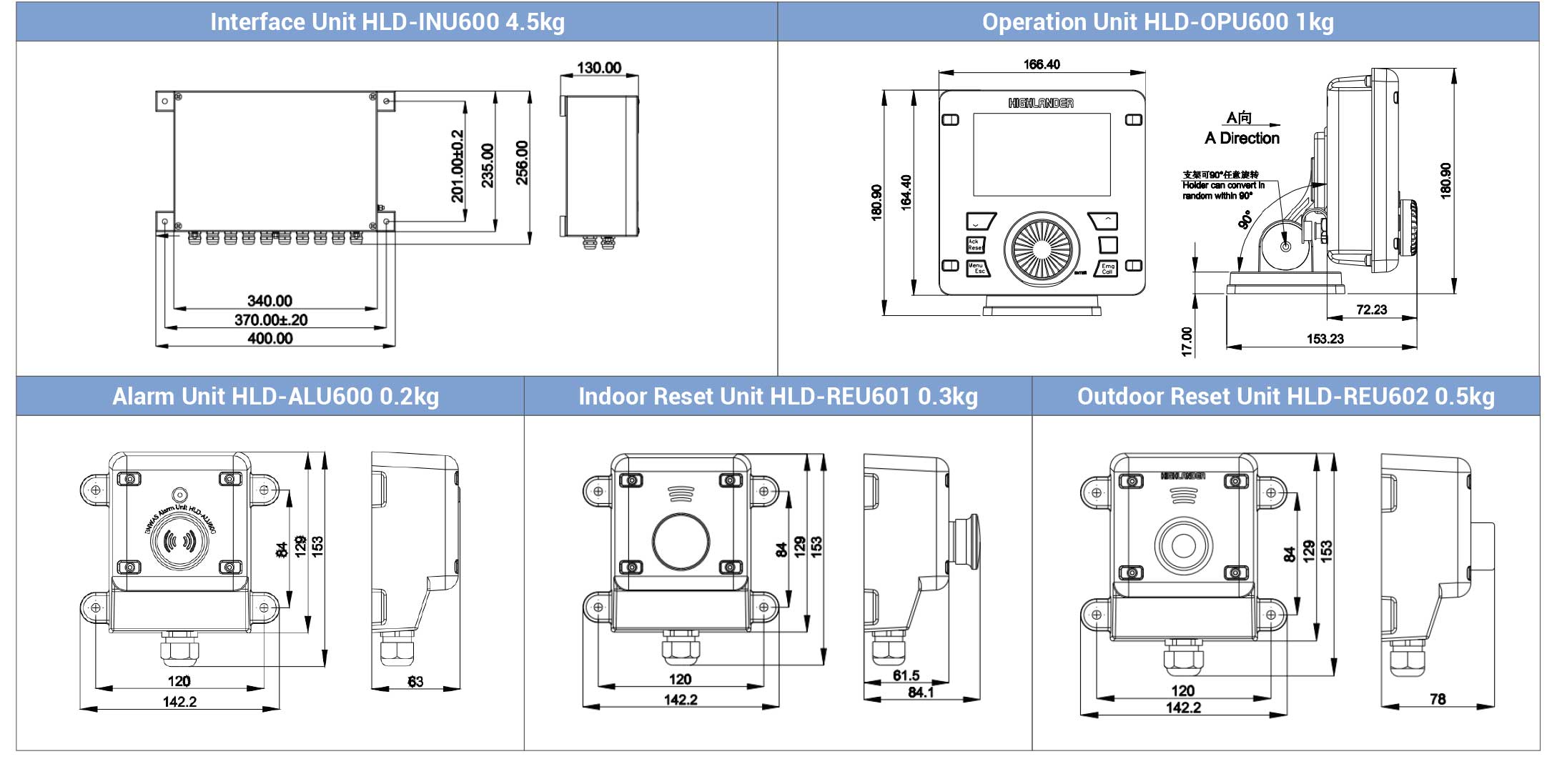

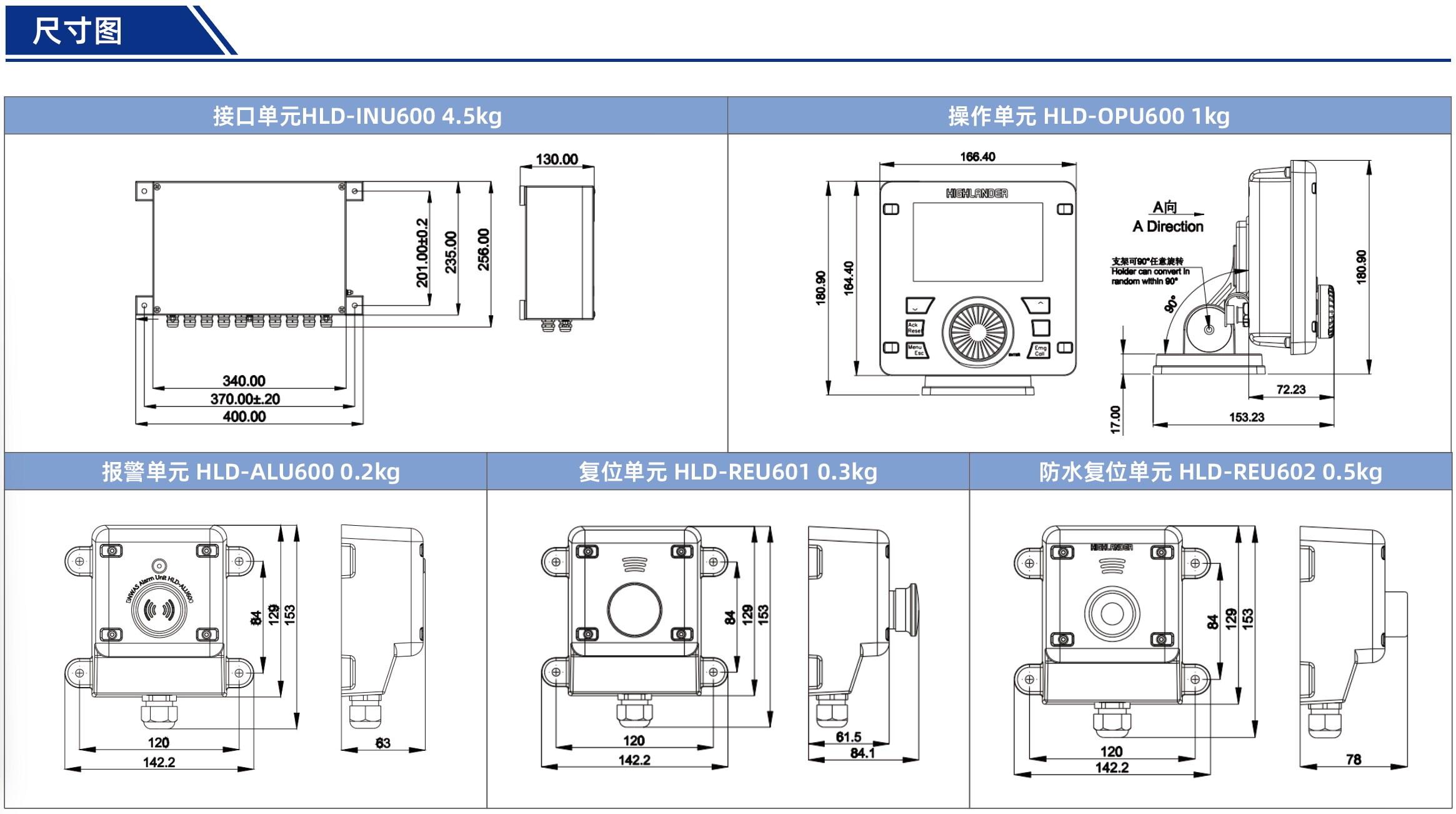

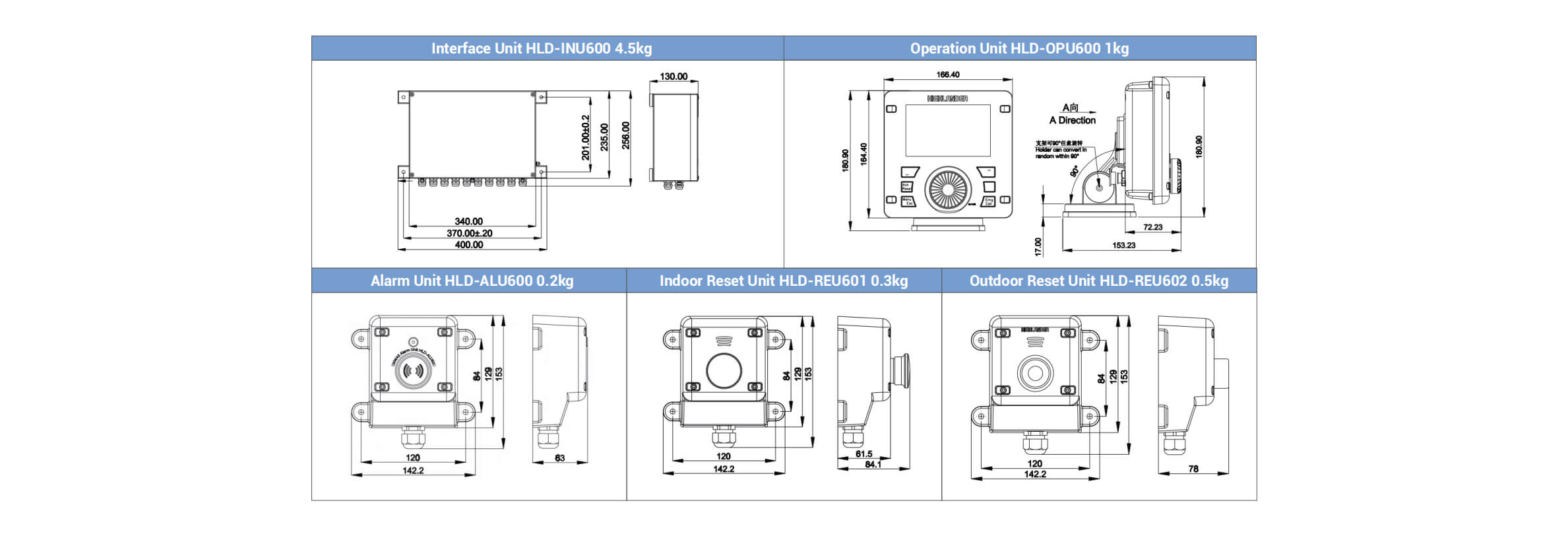

Dimension Diagram

Dimension Diagram
