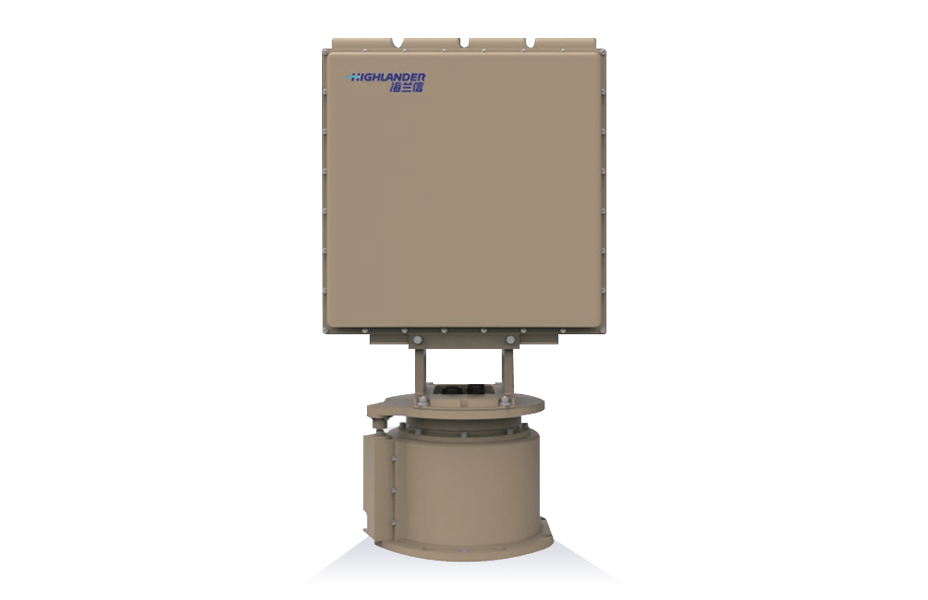

Low-Altitude Surveillance Radar-Highlander

Product Overview

Low-Altitude Surveillance Radar is a product independently designed by Beijing Highlander Digital Technology Co., Ltd. Adopting a fully solid-state, fully coherent pulse-Doppler architecture, it enables effective detection and early warning of "low, small, and slow" targets around the clock in all weather conditions.

Technical Parameters

Performance Specifications

Frequency Band: X-Band	Detection Range: ≥5km (RCS: 0.01㎡, UAV)	Blind Zone: ≤150m
Operating Mode: Supports mechanical scanning and 2D electronic scanning	Search Coverage: Mechanical Scanning: Azimuth 0°~360°, Elevation 0°~80° (configurable per mission requirements); Electronic Scanning: Azimuth -45°~45°, Elevation 0°~80° (configurable per mission requirements);	Tracking Function: Mechanical scanning tracking / TAS function with electronic scanning
TAS Tracking Targets: ≥6	Minimum Detection Altitude: ≤10m	Velocity Range: 1m/s ~ 100m/s
Target Update Rate: Mechanical: ≤3.2s / Electronic: ≤3s (Elevation coverage: 30°, Range: 7.5km);	Resolution: Range: ≤15m, Azimuth: ≤6°, Elevation: ≤6°	Search Accuracy (RMS): Range: ≤10m, Azimuth: ≤0.4°, Elevation: ≤0.5°;
Tracking Accuracy (RMS): Range: ≤10m, Azimuth: ≤0.3°, Elevation: ≤0.4°;	Target Capacity: ≥500 tracks	Weight: ≤26kg
Power Supply: AC220V / DC24V	Power Consumption: ≤350W	Operating Temperature: -40℃ ~ +70℃
Dimensions: ≤575mm × 317mm × 220mm	Ingress Protection: IP66
