Product Overview

The AMS Engine Room Automation Monitoring System is the fifth-generation automation product launched by Rockson Automation, built on thirty years of accumulated experience. Designed to German standards, it has obtained type approval certifications from classification societies including CCS and GL, and continues to advance localized production and supply in China. The system provides comprehensive engine room automation solutions for various types of merchant vessels, including monitoring and alarm, auxiliary machinery control, tank level management, ballast water management, and fuel oil management.

Product Features

Robust and reliable hardware architecture

01 - Rugged stainless steel enclosure, designed for harsh marine environments
02 - Solid-state drive, low-power fanless design, high stability
03 - Embedded Linux operating system, powerful logic processing capability
04 - Supports real-time hot-standby redundant system, ensuring reliable safety

Flexible and scalable system architecture

01 - Management & Control Layer (HMI): Graphical data visualization, supports remote maintenance interface and third-party smart ship system interfaces
02 - Data Processing Layer (PLC): Responsible for logic operations and control functions
03 - Field I/O Layer (I/O): Responsible for data acquisition and control command output

Rich and practical software functions

01 - Graphical HMI with concise and intuitive menus, supporting touch operation
02 - Customizable MIMIC diagrams with vector-scalable graphics
03 - Chinese/English interface with multi-language selection support
04 - Historical data visualization analysis tool; trend chart analysis for easy fault diagnosis
05 - Supports paperless printing and historical data export
06 - Clear authorization with secure access control settings
07 - Scheduled logging and printing functions

Easy to use, low maintenance cost

01 - Preset backup channels, configurable by crew
02 - Hot-swappable hardware, maintenance-free, easy replacement
03 - Automatic software upgrade via USB drive, simple operation
04 - System self-diagnostics for hardware fault detection
05 - External sensor fault protection
06 - Standard 3-year warranty, supports remote maintenance and online troubleshooting

Technical Parameters

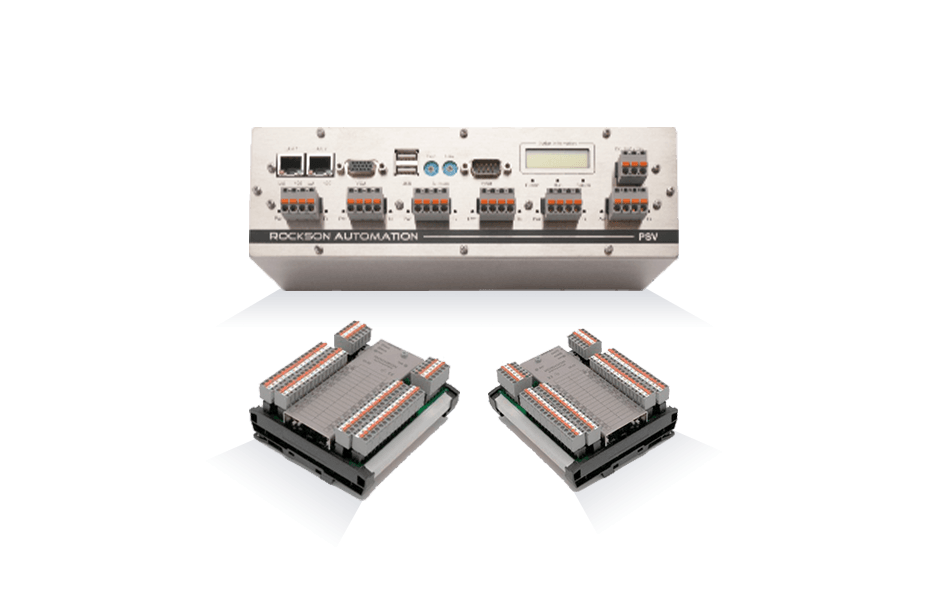

PSV Programmable Controller

I/O Acquisition Modules (4 Standard Modules)

PSV Programmable Controller

Enclosure: Rugged stainless steel	Storage: Solid-state drive	Design: Low-power, fanless
Operating System: Embedded Linux	Redundancy: Supports real-time hot-standby	Mounting: 35mm DIN rail mounting
Upgrade: USB upgrade	Status Indication: LED and textual status display

I/O Acquisition Modules (4 Standard Modules)

CI-32:

Digital Input

32 digital channels, replaceable channel labels, supports pulse/frequency signal measurement, insulation monitoring alarm

MI-8:

Analog Input

8 analog channels, supports 12 types of signal inputs, designed for complex conditions, insulation monitoring alarm

ROX-12:

Digital Output

12 relay outputs, output status indication

MO-8:

Analog Output

8 analog outputs, supports voltage/current output

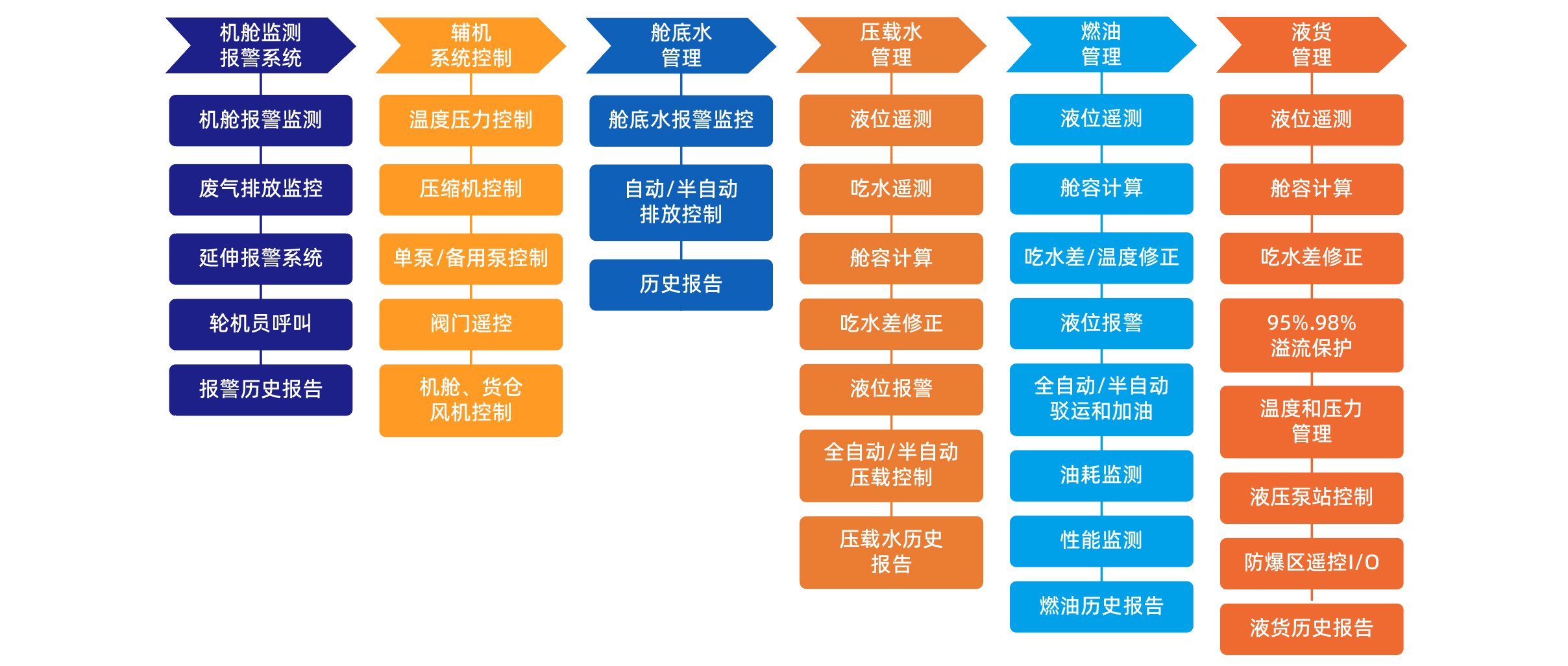

Product System Diagram
