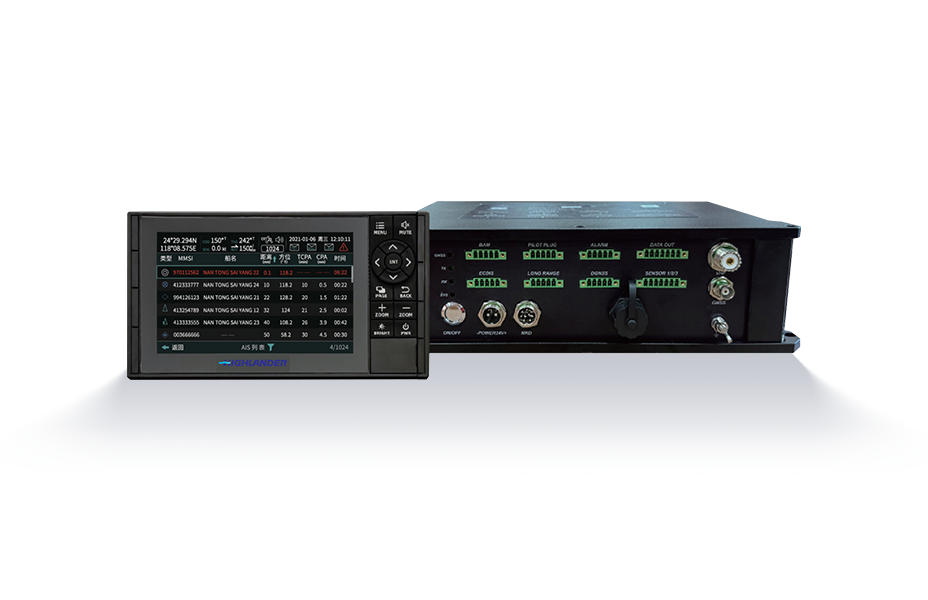

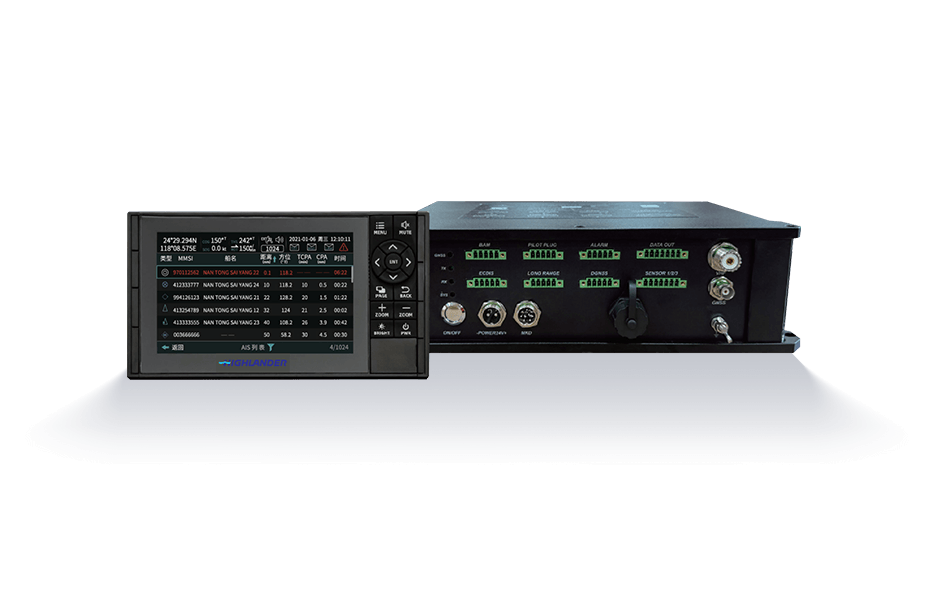

HLD-AS 200 Class A Shipborne Automatic Identification System-Highlander

Product Overview

This device is a Class A shipborne AIS (Automatic Identification System), powered by DC 24V, utilizing GMSK modulation, with an operating frequency range of 156.025MHz to 162.025MHz. It features AIS transmission, AIS reception, and DSC reception capabilities. The system integrates a multi-system positioning module supporting BDS and GPS reception, enabling stable acquisition, transmission, and display of vessel dynamic information. The system provides BAM alarm, PILOT PLUG interface, ECDIS, LONG RANGE, DGNSS, and multiple sensor data input/output interfaces, facilitating integration with onboard navigation, alarm, and chart systems. Equipped with a 7-inch or 10.1-inch MKD display, supporting Simplified Chinese, Traditional Chinese, and English, the device meets the requirements of various maritime applications including navigation, monitoring, collision avoidance, and information exchange.

Product Features

Touchscreen and keypad dual-mode operation

The Class A shipborne AIS features both touchscreen and keypad operation modes

Full device interoperability

Equipped with ECDIS, Long Range, BAM, and multi-sensor interfaces, providing excellent compatibility with electronic chart systems, radar, and other marine electronic equipment

User-friendly LED interactive interface

A simple and user-friendly interface combined with a multi-function color LED display

Dual-mode high-precision differential positioning

Supports high-precision positioning with BDS and GPS, and can accept external differential data for differential positioning

Multi-dimensional intelligent collision avoidance warning

Multiple intelligent alarms, providing real-time collision avoidance information

Full IMO standard compliance

Designed and manufactured in accordance with the latest international regulations and standards, complying with IMO MSC.302(87), ITU-R M.1371-5, IEC 62288, IEC 61993-2:2018, and IEC 60945

Three AIS autonomous transmission modes

AIS transmission features three modes: autonomous, assigned, and polled

Two-way AIS data exchange

Capable of receiving AIS targets and transmitting own ship's static/dynamic parameters and related navigation data

50NM panoramic radar overlay

The AIS radar display can switch between different viewing angles to show AIS targets within 50NM centered on own ship

Dual-source UTC precise time-slot synchronization

Time-slot synchronization: Uses the built-in GNSS receiver or external positioning sensor as the primary UTC source; alternatively, it can synchronize time-slots using received messages from base stations or mobile stations

Multi-sensor fusion integration

Supports integration with various sensors including GNSS positioning source, log, gyrocompass, and rate of turn indicator

19-item BIIT intelligent self-check and alarm

Features BIIT self-check and 19 alarm indications including equipment failure, position lost, and heading lost

Remote DCS one-click regional configuration

Regional settings support configuration via received message 22 from base stations or DCS remote messages; alternatively, the system's receive and transmit settings can be configured through the onboard system or manually entered via the MKD

Technical Parameters

Technical Specifications

Power Supply: DC 24V	Class: Class A	Bandwidth: 25KHz
Modulation: GMSK	Bit Rate: 9600bps	Operating Frequency: 156.025MHz ~ 162.025MHz
AIS Transmit Channels/Frequencies: AIS1 (CH87B): 161.975MHz AIS2 (CH88B): 162.025MHz	AIS Receive Channels/Frequencies: AIS1 (CH87B): 161.975MHz AIS2 (CH88B): 162.025MHz	DSC Receive Channel: 70 / 156.525MHz
Receive Sensitivity: Better than -107dBm	Frequency Error: < ±500Hz	Transmit Power: 1W / 12.5W
Multi-System Positioning Module Receive Frequencies: BDS: B1I: 1561.098MHz GPS: L1: 1575.42MHz	External Data Interfaces: BAM alarm interface PILOT PLUG interface Data output interfaces: 3 channels ECDIS: bidirectional data interface LONG RANGE: bidirectional data interface DGNSS differential data interface Sensor data input interfaces: 3 channels	MKD Display: 7-inch or 10.1-inch (optional) Display Languages: Simplified Chinese, Traditional Chinese, English
Applicable Standards: IEC 61993-2:2018, R-REC-M.1371-5-2014, 《Domestic Navigation Sea-going Ship Statutory Survey Technical Rules》, IMO MSC.74(69), IMO MSC.302(87), IEC 62923-1, IEC 62923-2, IEC 62288:2021, IEC 61162-1, IEC 61162-2, IEC 60945

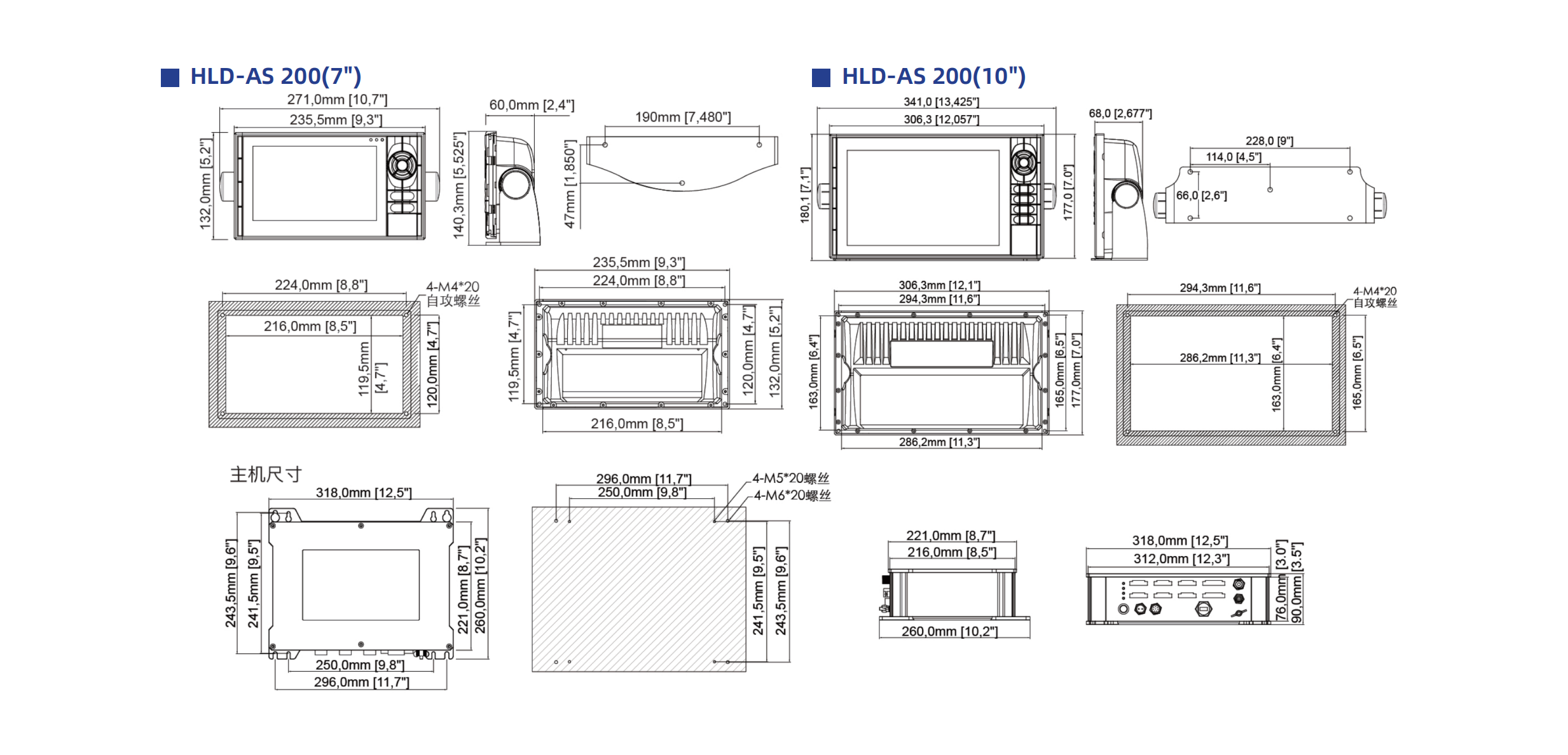

Dimension Diagram
