New-Generation Navigation System NavMind-Highlander

Product Overview

NavMind is a next-generation navigation system for autonomous inland and offshore navigation scenarios. The system integrates multiple types of navigation sensors and relies on AI algorithms to achieve multi-source target integration such as AIS, radar ARPA, and video vision. It integrates intelligent awareness, computing, decision-making, and control.

It provides core functions such as assisted collision avoidance, route warning, tracking driving, route optimization, assisted/automatic docking and unberthing, and remote control. It can integrate and expand energy efficiency and cabin equipment management, AMS, and other functions to improve the four core requirements of "navigation safety, crew efficiency, driving experience and Shipping benefits".

Leveraging an integrated ship-to-shore communication network, the product collaborates with Highlander's shore-based big data and AI computing platform. This synergy establishes a "Shipboard Sensing + Shore-based Processing + Remote Empowerment" system. It provides full lifecycle digital-intelligent services, facilitating intelligent vessel upgrades and enabling greener, safer shipping.

Product Features

Equipment

60% Reduced number of devices

Space

40% reduction in installation space

Cost

50% reduction in equipment costs

Technical Parameters

Navigation Radar: Same as HLD900/900S Series Radar

ECDIS: Same as ECDIS1000/ECS100

Vision Awareness

Navigation Sensors

Ship-Shore Communication

Navigation Radar: Same as HLD900/900S Series Radar

Peak Power: Magnetron: 6/10/25/30kw; Solid-State: 200/250/300w	Antenna Length: 6/8/12ft	Polarization: Horizontal Polarization
Frequency Band: 3050±30; 39410±30MHz	Azimuth Resolution: 1.3/1/2°	Range Resolution: Better than 20m
Range: Supports 0.125, 0.25, 0.5, 0.75, 1.5, 3.0, 6.0, 12.0, 24, 48, 96NM	ARPA Target Count: ≥100	AIS Active Targets: ≥100
Power Supply: AC220V, 50Hz	AIS Display Targets: ≥500	Power Consumption: < 300w

ECDIS: Same as ECDIS1000/ECS100

ARPA Targets: ≥100	AIS Active Targets: ≥100	AIS Targets: ≥500
Information Update Cycle: 1s	Power Supply: AC220V, 50Hz	Power Consumption: < 200w

Vision Awareness

Surveillance Range: 0 ~ 5000m	Electron telescope: With visibility 5000 meters condition, the maximum detection for visible light is 3000 meters and the maximum detection for infrared is 1500 meters.	Enhanced Night Navigation: With visibility 5,000 meters condition, visible light at night can see the outline of the navigation mark within 1,000 meters; infrared can detect ships at a distance of 5,000 meters.
Enhanced Fog Navigation: Visibility≥800 meters, infrared light can detect the navigation mark profile within 1000 meters.	Range Rings: Supports ship-side 50/100/200m (configurable) equidistant line overlay display; Error: ≤ 5m (within 100m range); Error: ≤ 10m (within 200m range).

Navigation Sensors

Heading Accuracy: 0.2°RMS	Position Accuracy: 1.5 m	SOG Accuracy: 0.03 m/s
AIS Output Power: Class B: 2W; Class A: 12.5W (High) / 1W (Low)	AIS Receiver Sensitivity: Class B: Better than -110 dBm; Class A: Better than -107 dBm	Echosounder Accuracy: 200kHz: 1% of full scale; 50kHz: 2.5% of full scale
Speed Log Accuracy: 0.2 knots or 2%, whichever is greater	Distance Log Accuracy: 0.2 nautical miles or 2%, whichever is greater

Ship-Shore Communication

4G/5G Communication:

Supports both IoT SIM cards and standard mobile data SIM cards.

LAN Interface:

Supports the IEEE 802.11b/g/n standard.

Communication Rate:

The maximum data rate reaches 50 Mbps (uplink) / 100 Mbps (downlink).

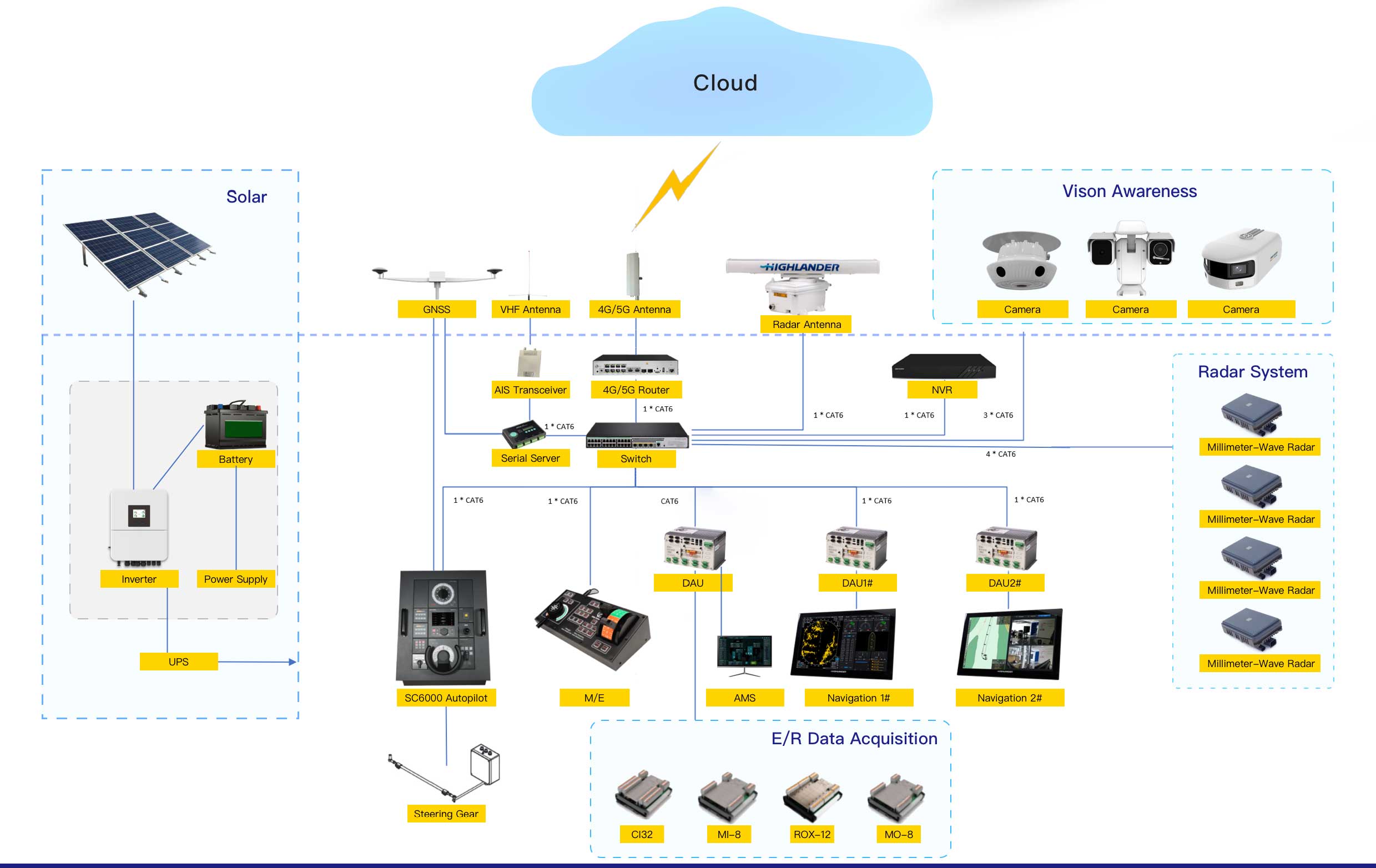

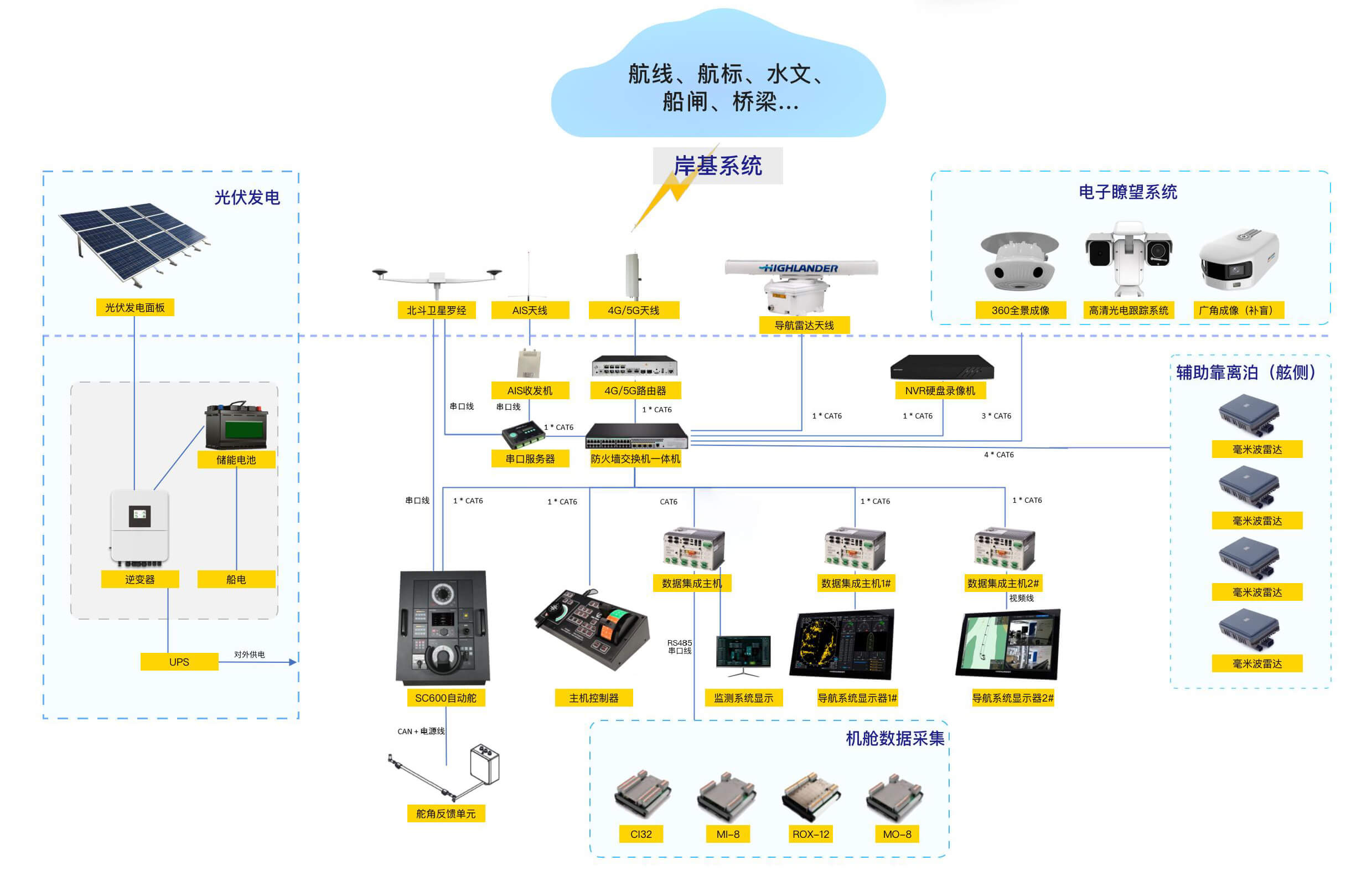

Product System Diagram
