Home Products & Services Navigation Products Wind Speed and Direction Repeater HLD-AMD601
Technical Parameters Dimension Diagram
Expert Consultation

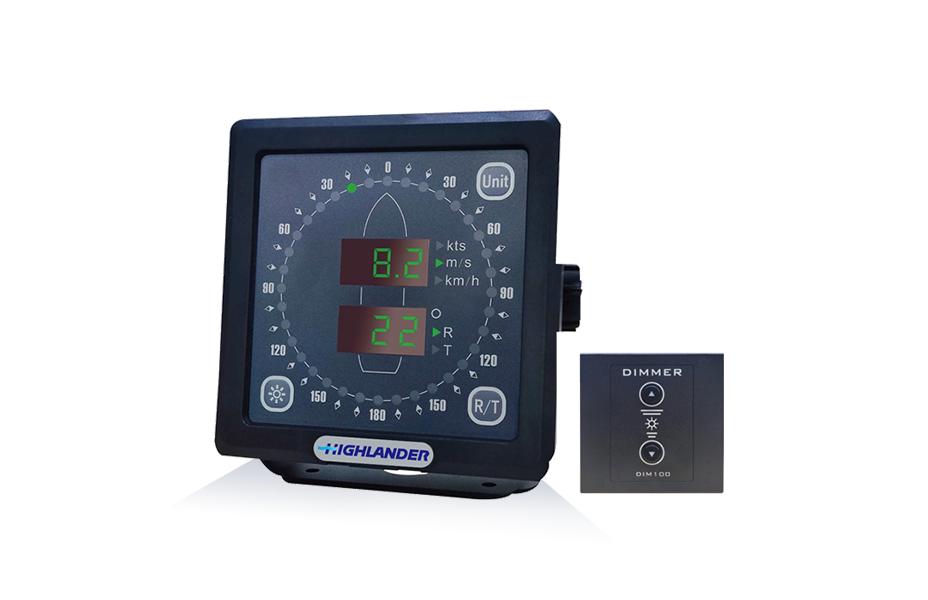

Wind Speed and Direction Repeater HLD-AMD601
HLD-AMD601 Wind Speed and Direction Repeater
Sales: 18149706718
Maintenance: 18074089111
Related Solutions
Wind Speed and Direction Repeater HLD-AMD601
Technical Parameters
Technical Specifications
Technical Specifications
Dimensions:

144mm (W) × 144mm (H) × 62mm (D)

Display Angle:

000~359°

Data Input:

$--MWV, xxx, R, xx.x, M, A*27 (NMEA 0183)

Operating Temperature:

-25°C ~ +55°C

Protection Rating:

IP23 / IP56

Gross Weight:

1.0kg

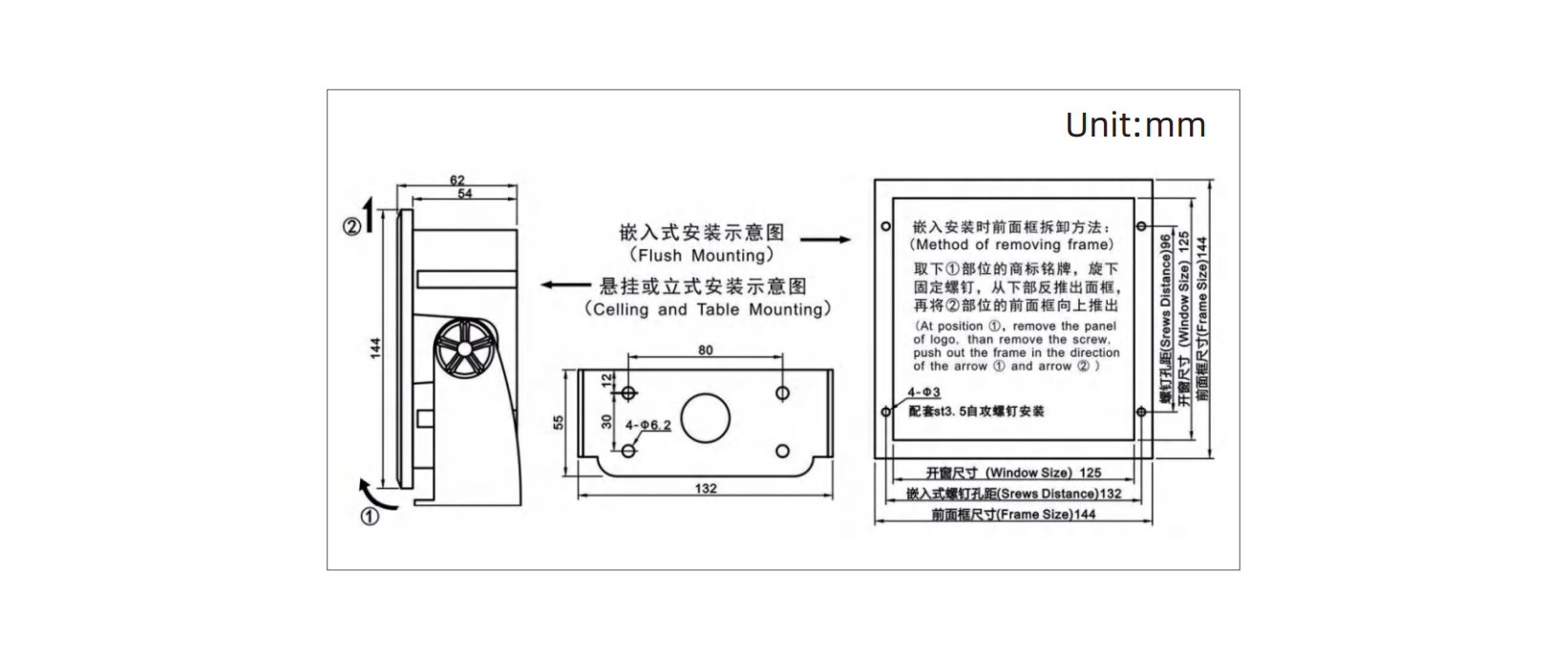

Dimension Diagram
Dimension Diagram
