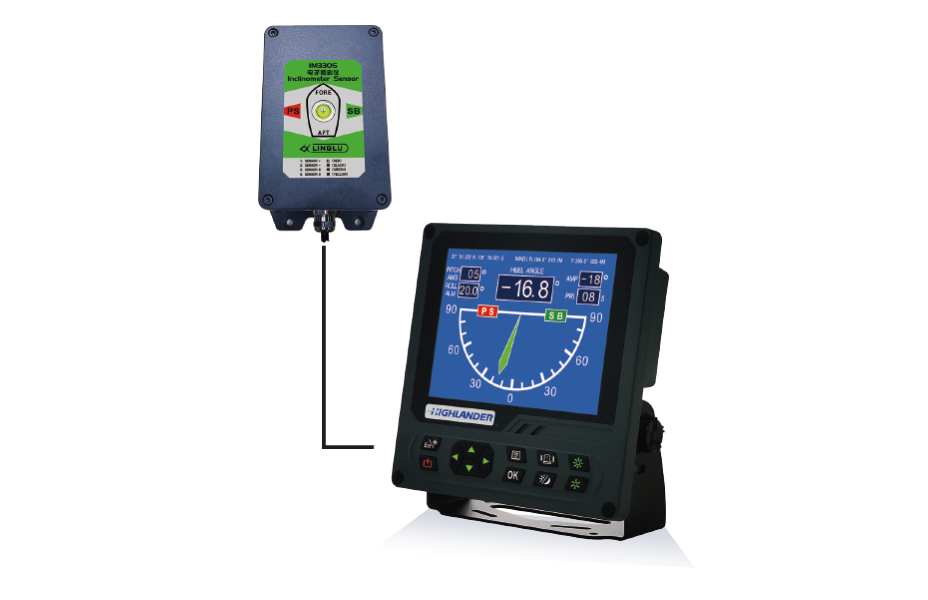

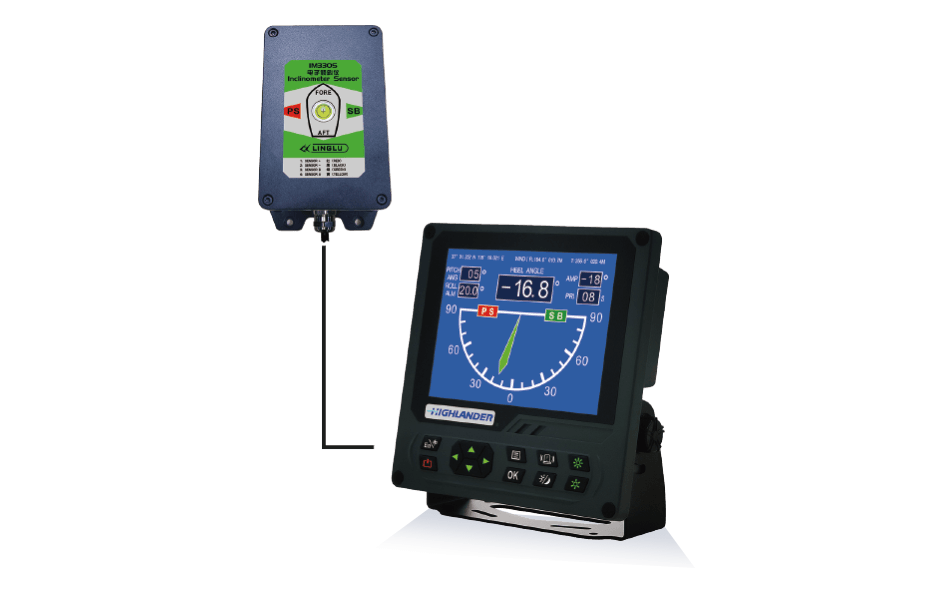

HLD-EI 610 Electronic Inclinometer-Highlander

Product Overview

The device is equipped with an 8-inch TFT display with a resolution of 800×600 pixels, displaying parameters such as angle, amplitude, and period. The angle range is -90° ~ +90° with an accuracy of ±0.1°; the amplitude range is -90° ~ +90° with an accuracy of ±1°; the period range is 4s ~ 40s with an accuracy of 1s. The product supports roll alarm, system alarm, and power failure alarm, with alarm indication via buzzer (defeatable) and flashing, and supports external alarm sentence input/output. The display has a protection rating of IP23, the sensor IP67, and a gross weight of approximately 3kg.

Technical Parameters

Technical Specifications

Display: 8-inch TFT, 800×600 pixels	Angle Range: -90° ~ +90°	Angle Accuracy: ±0.1°
Amplitude Range: -90° ~ +90°	Amplitude Accuracy: ±1°	Period Range: 4s ~ 40s
Period Accuracy: 1s	Alarm Modes: Roll alarm, system alarm, power failure alarm	Alarm Indication: Buzzer alarm (defeatable), flashing alarm
External Alarm Sentences: Output (OUT): HRM, POS, ALR; Input (IN): ACK, DDC, GGA	Protection Rating: Display: IP23, Sensor: IP67	Gross Weight: 3kg

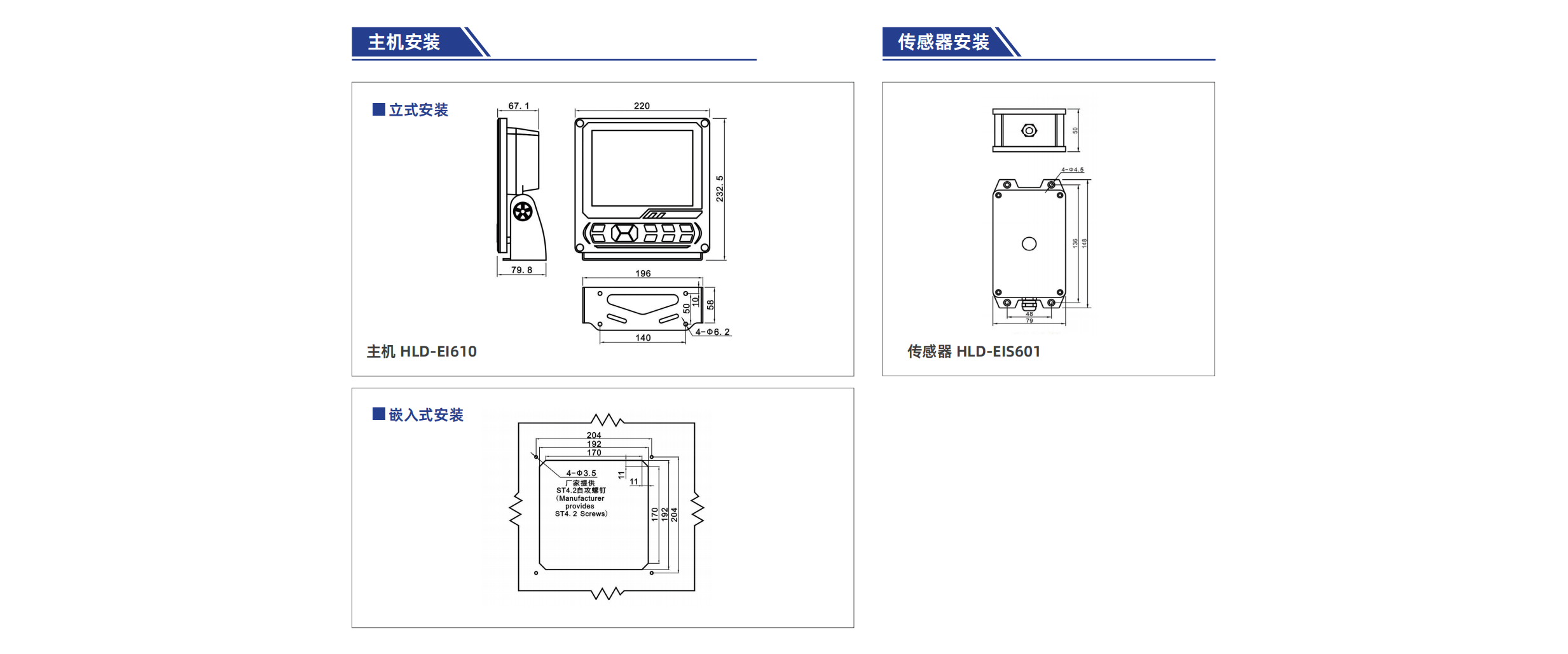

Dimension Diagram
