Home Products & Services Navigation Products Log Repeater HLD-DSLD601
Technical Parameters Dimension Diagram
Expert Consultation

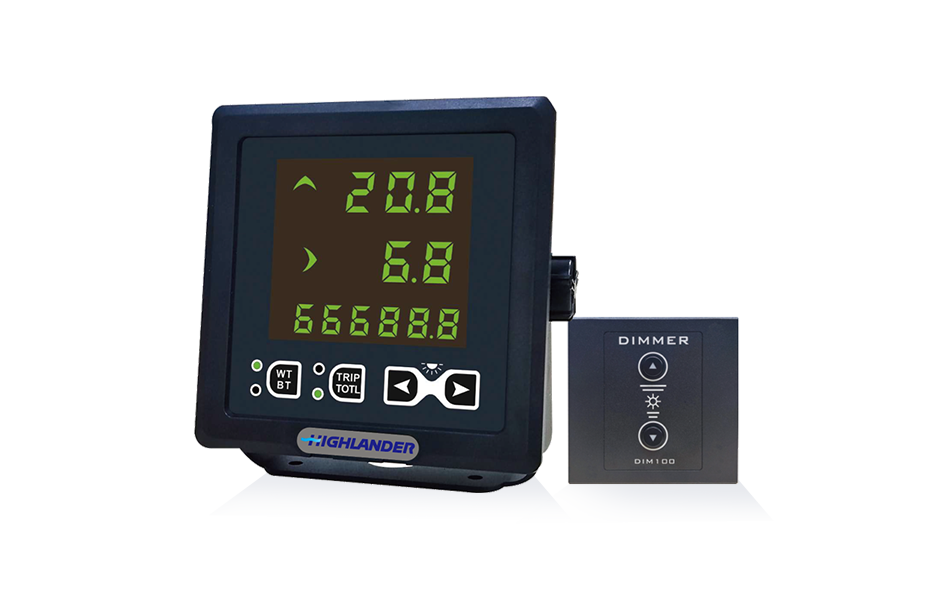

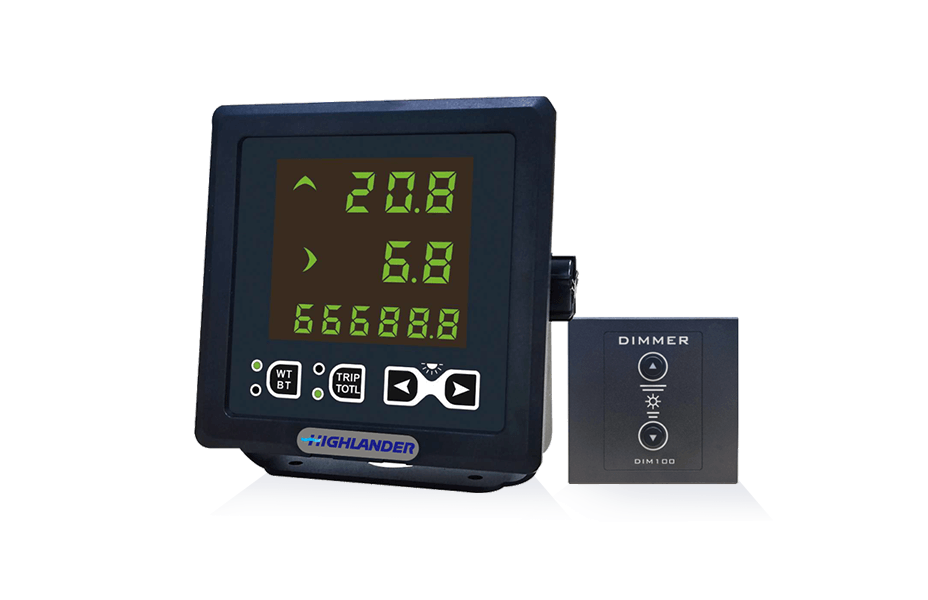

Log Repeater HLD-DSLD601
HLD-DSLD601 Log Repeater
Sales: 18149706718
Maintenance: 18074089111
Related Solutions
Log Repeater HLD-DSLD601
Technical Parameters
Technical Specifications
Technical Specifications
Dimensions:

144mm(W) × 144mm(H) × 62mm(D)

Speed Data:

Speed relative to bottom/water (NMEA 0183) $--VBW,x.x,x.x,A,x.x,x.x,A,x.x,A,x.x,A*hh

Distance Data:

Distance relative to water (NMEA 0183) $--VLW,x.x,N,x.x,N,x.x,N,x.x,N*hh

Operating Temperature:

-25°C ~ +55°C

Protection Rating:

IP23 / IP56

Gross Weight:

1.0kg

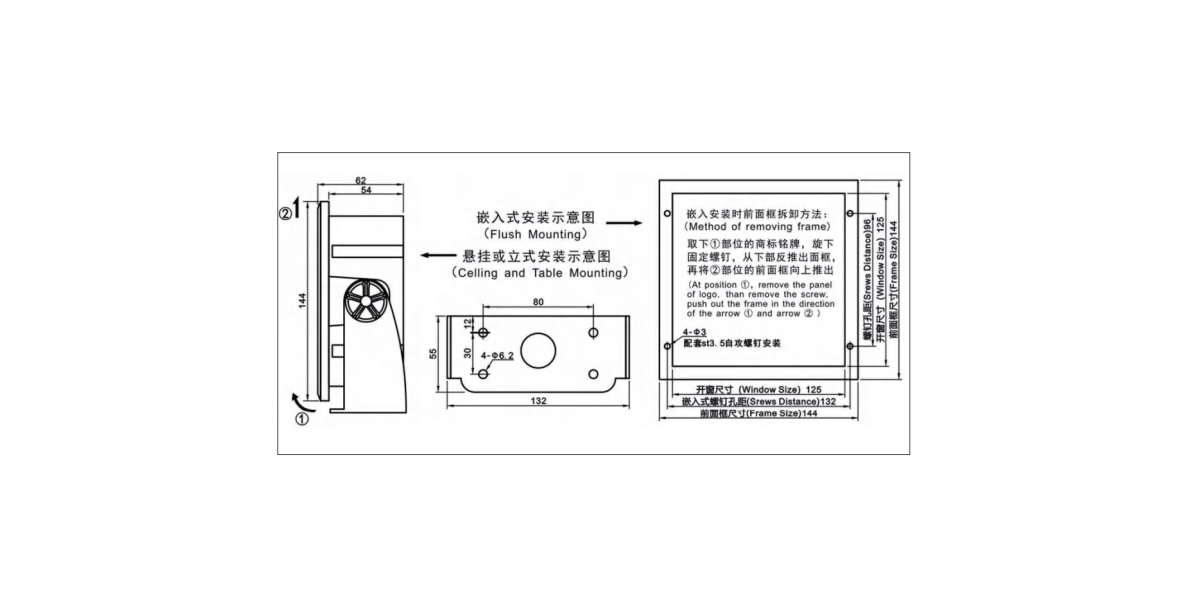

Dimension Diagram
Dimension Diagram
