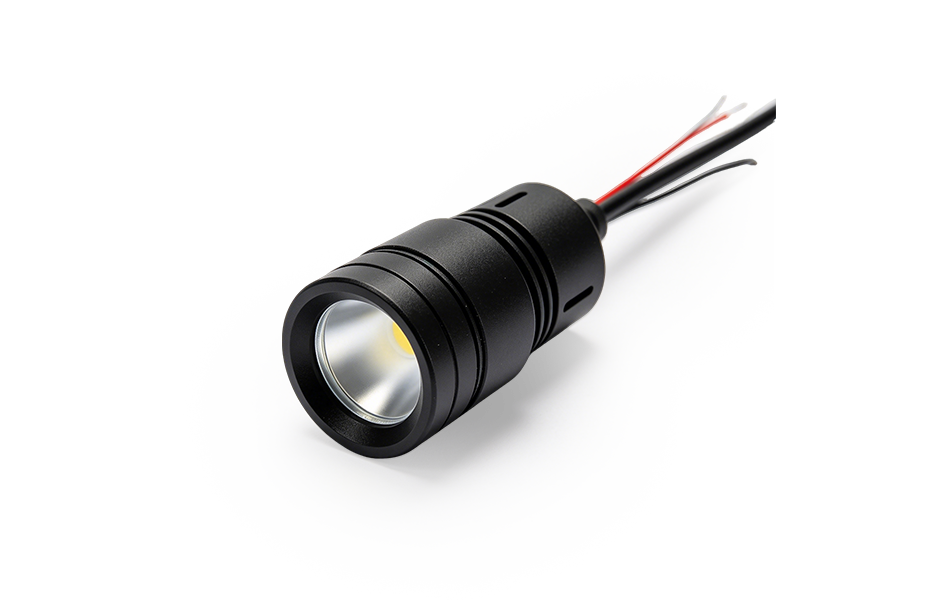

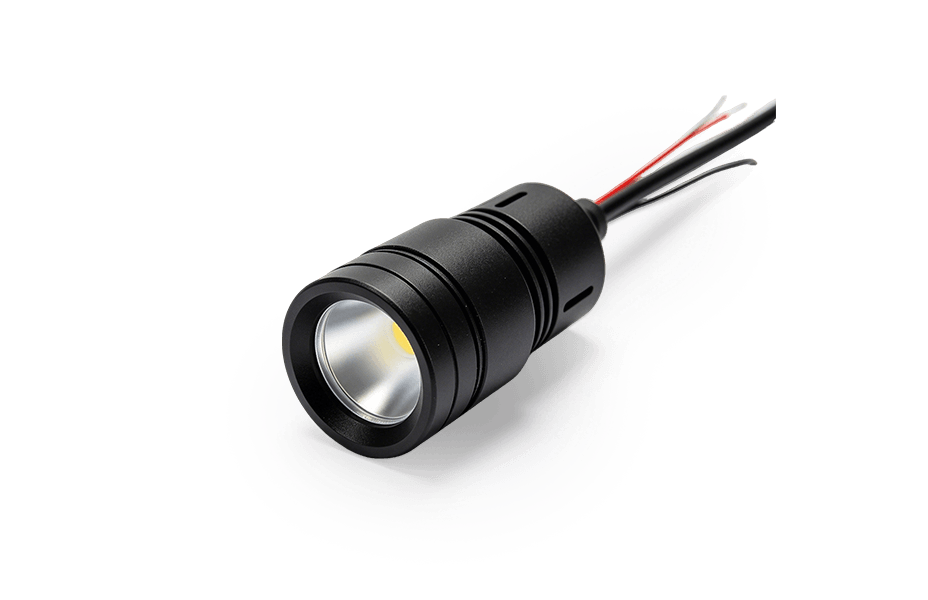

Subsea LED Light

Suitable for a range of subsea operations, including robotic arms and small underwater vehicles with limited space. Covers supplemental lighting for seafloor network observation, professional submersible operation illumination, and marine engineering maintenance lighting needs.

Marine Instruments & Equipment: 13601709553

Subsea Network: 18368081047

Subsea LED Light

Product Overview

Suitable for a range of subsea operations, including robotic arms and small underwater vehicles with limited space. Covers supplemental lighting for seafloor network observation, professional submersible operation illumination, and marine engineering maintenance lighting needs.

Product Features

Features brightness adjustment via RS485 serial communication interface

Features brightness adjustment via RS485 serial communication interface

Multi-level continuous dimming with smooth, flicker-free brightness transition during adjustment

Multi-level continuous dimming with smooth, flicker-free brightness transition during adjustment

Illumination Type: Floodlight

Illumination Type: Floodlight

Technical Parameters

Technical Specifications

Technical Specifications

Voltage: 24VDC (12–28VDC)	Power: ≤15W	Dimensions: ≤Ø31mm × 50mm (excluding tail cable)
Weight: ≤0.5kg (in air)	Interface: Fixed tail cable with flying leads at the end	Maximum Operating Depth: ≥500m
Brightness: ≥1500 lumens	Luminous Flux Maintenance (70%): ＞36,000 hours	Luminous Efficacy: ≥105 lumens/Watt
Beam Angle: 80°–75°	Color Temperature: 5200K–5700K (neutral white)	Dimming Method: RS485 stepless dimming, 0–100% brightness
