Home Products & Services Navigation Products Electronic Inclinometer Repeater HLD-EID601
Technical Parameters Dimension Diagram
Expert Consultation

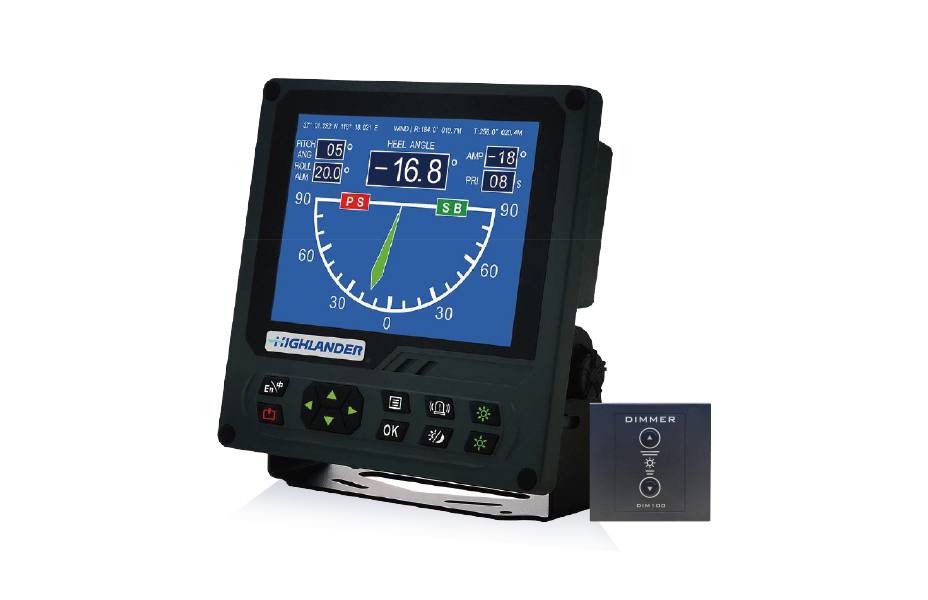

Electronic Inclinometer Repeater HLD-EID601
HLD-EID601 Electronic Inclinometer Repeater
Sales: 18149706718
Maintenance: 18074089111
Related Solutions

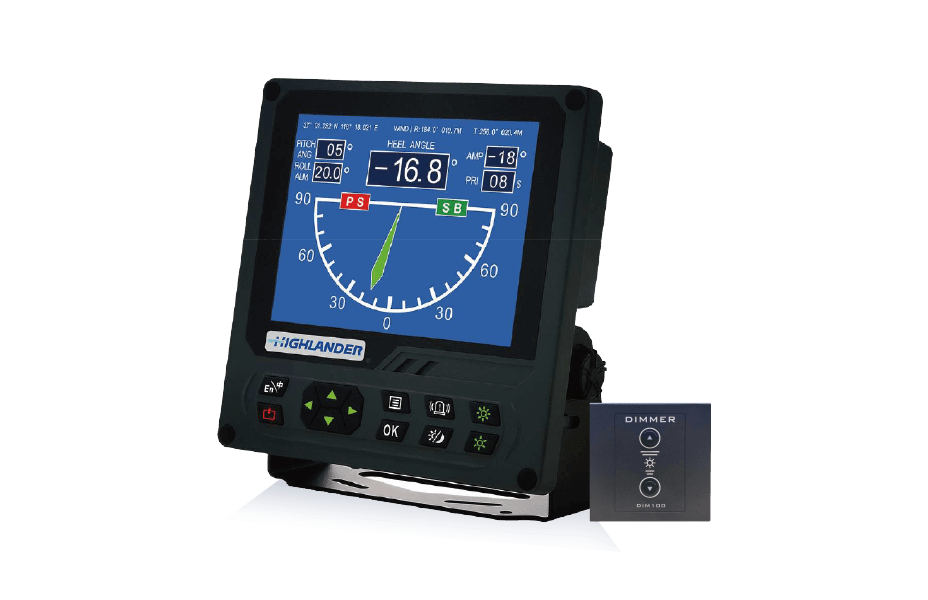

Electronic Inclinometer Repeater HLD-EID601
Technical Parameters
Technical Specifications
Technical Specifications
Dimensions:

220mm(W) × 232.5mm(H) × 79.8mm(D)

Roll Range:

-90° ~ +90°

Pitch Range:

-90° ~ +90°

Roll Period Range:

4~40s

Heel Angle Sentence:

$IMHRM,x,x,x,x,x,x,x,x,x,x,*hh<CR><LF>

Trim Angle Sentence:

$IMHPM,x,x,x,x,x,x,x,x,x,x,*hh<CR><LF>

Protection Rating:

IP23

Gross Weight:

1.5kg

Operating Temperature:

-25°C ~ +55°C

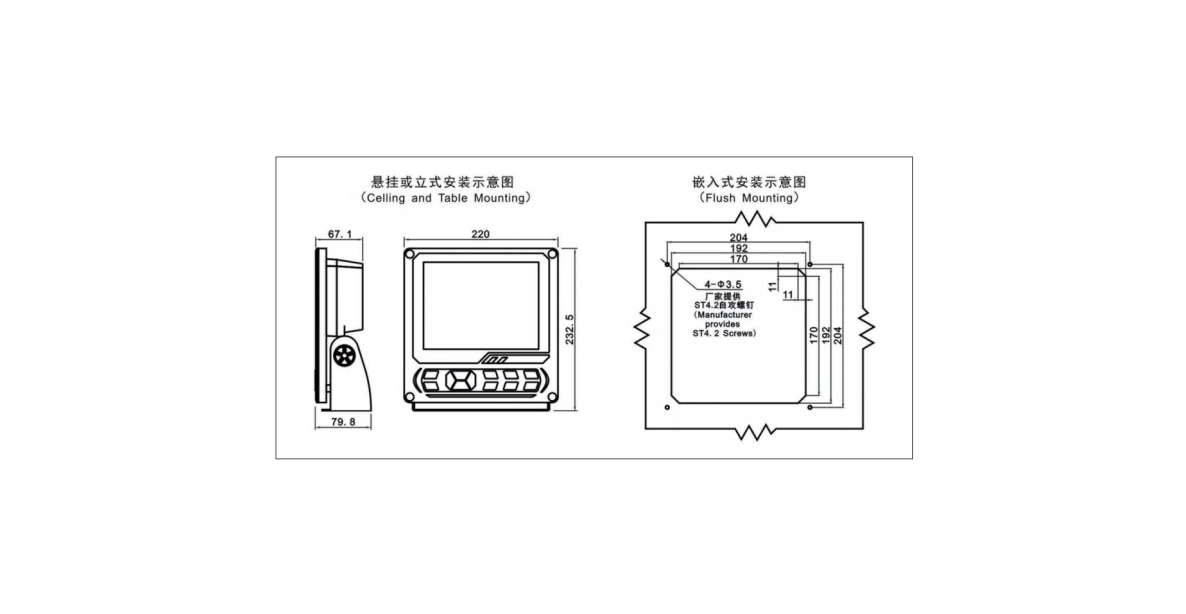

Dimension Diagram
Dimension Diagram
