Home Products & Services Navigation Products 8-inch LCD Echo Sounder HLD-ES 610
Technical Parameters Dimension Diagram
Expert Consultation

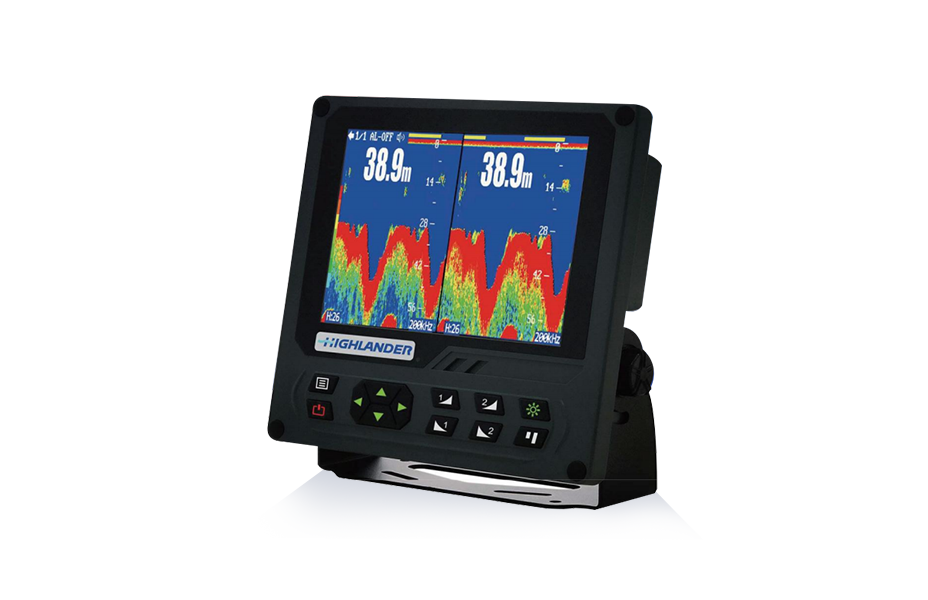

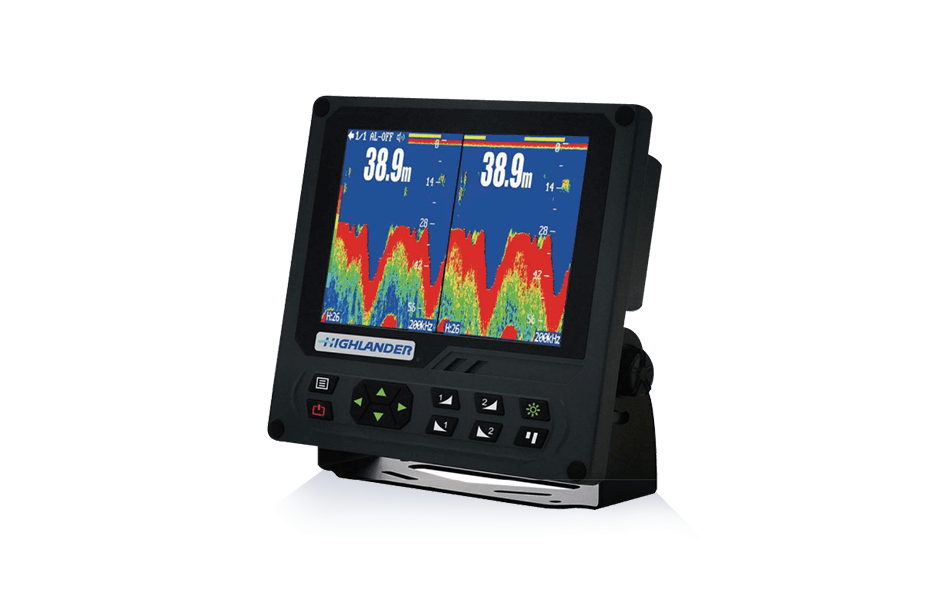

8-inch LCD Echo Sounder HLD-ES 610
HLD-ES 610 8-inch LCD Echo Sounder
Sales: 18149706718
Maintenance: 18074089111
Related Solutions
8-inch LCD Echo Sounder HLD-ES 610
Technical Parameters
Technical Specifications
Technical Specifications
Display:

8-inch TFT, 800×600 pixels

Power Consumption:

AC 220V / DC 24V, ≤8W

Data Output:

NMEA 0183 sentence output

Data Playback:

24h

Data Channels:

1ch / 2ch

Frequency:

200kHz, 50kHz, 200/50kHz,
200/200kHz

Auto Range:

Yes

Auto Gain:

Yes

Operating Temperature:

-25°C ~ +55°C

Protection Rating:

Display: IP23, Transducer: IP68

Gross Weight:

1.8kg

Measurement Accuracy:

200kHz: 1% of full scale; 50kHz: 2.5% of full scale

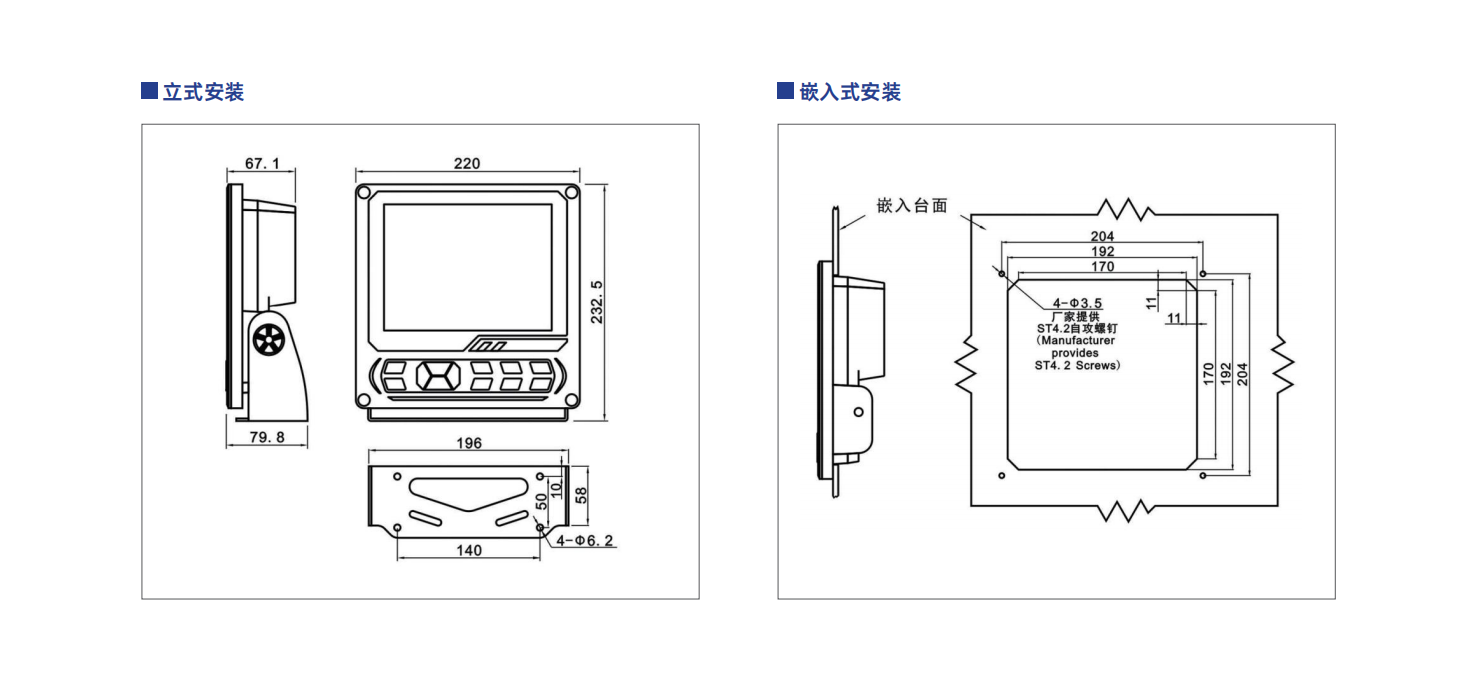

Dimension Diagram
Dimension Diagram
