Home Products & Services Navigation Products 10-inch LCD Echo Sounder HLD-ES 600
Technical Parameters Dimension Diagram
Expert Consultation

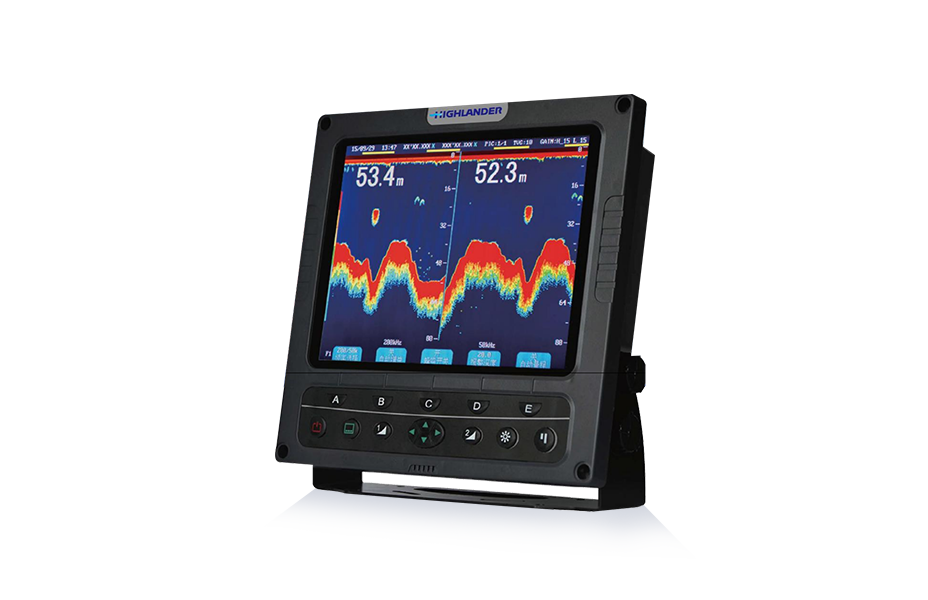

10-inch LCD Echo Sounder HLD-ES 600
HLD-ES 600 10-inch LCD Echo Sounder
Sales: 18149706718
Maintenance: 18074089111
Related Solutions

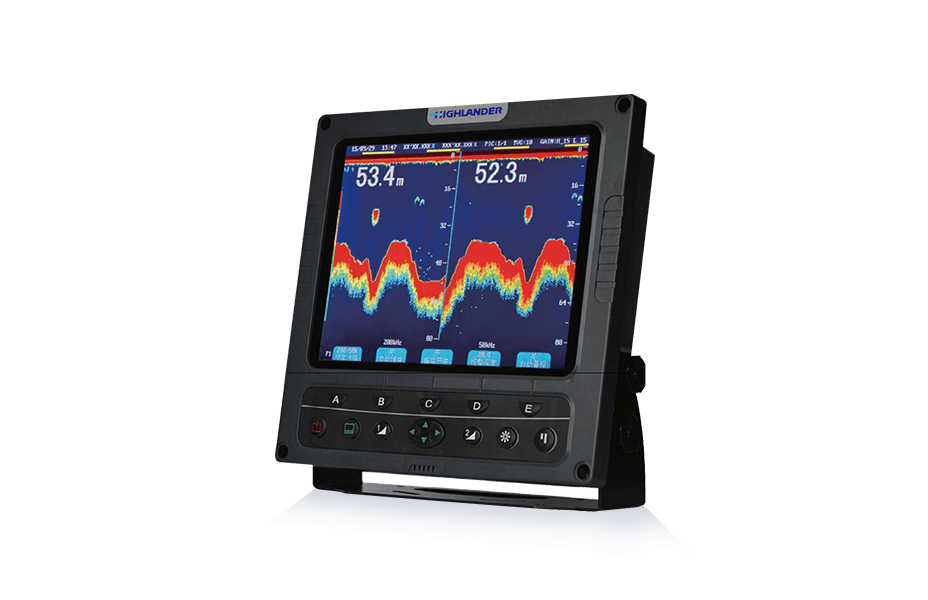

10-inch LCD Echo Sounder HLD-ES 600
Technical Parameters
Technical Specifications
Technical Specifications
Display:

10.4-inch TFT, 800×600 pixels

Power Consumption:

AC 220V / DC 24V, ≤15W

Data Output:

NMEA 0183 sentence output

Data Playback:

24h

Data Channels:

1ch / 2ch

Frequency:

200kHz, 50kHz, 200/50kHz

Measurement Accuracy:

200kHz: 1% of full scale; 50kHz: 2.5% of full scale

Auto Range:

Yes

Auto Gain:

Yes

Operating Temperature:

-25°C ~ +55°C

Protection Rating:

Transducer: IP68, Display: IP23

Gross Weight:

4kg

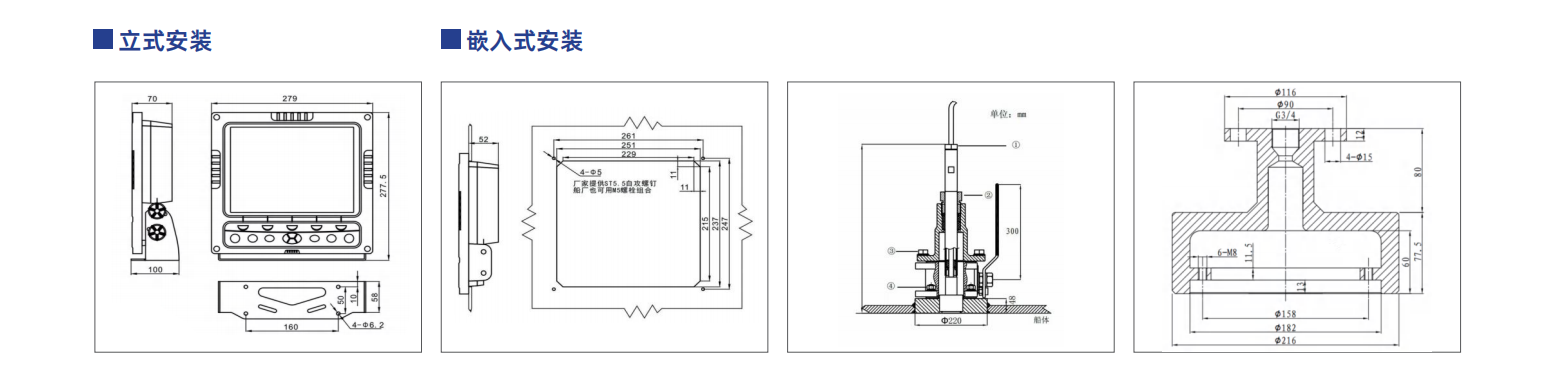

Dimension Diagram
Dimension Diagram
