Home Products & Services Navigation Products Wind Speed and Direction Indicator HLD-AM 600S
Technical Parameters Dimension Diagram
Expert Consultation

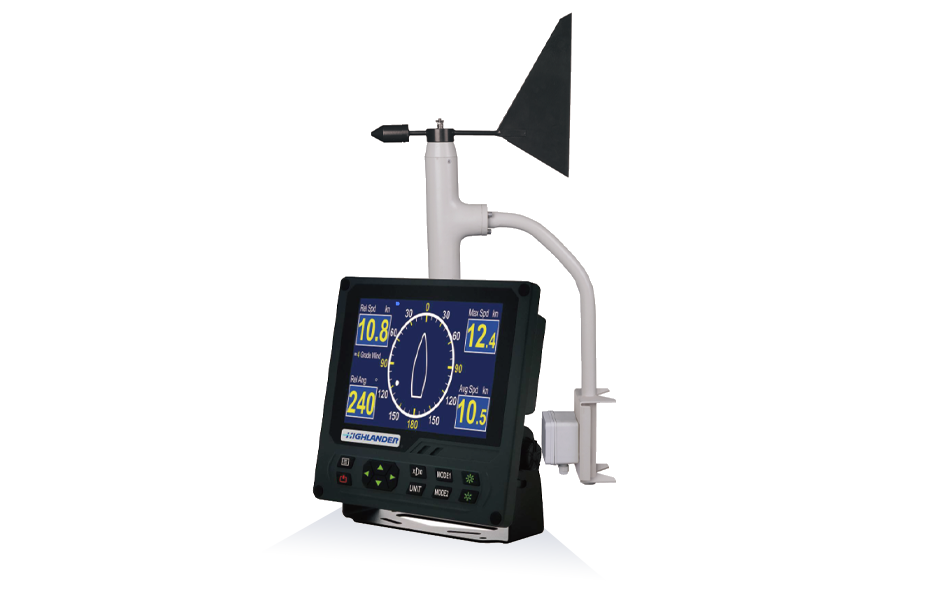

Wind Speed and Direction Indicator HLD-AM 600S
8-inch TFT, 800×600 pixels, multi-level adjustable
Sales: 18149706718
Maintenance: 18074089111
Related Solutions

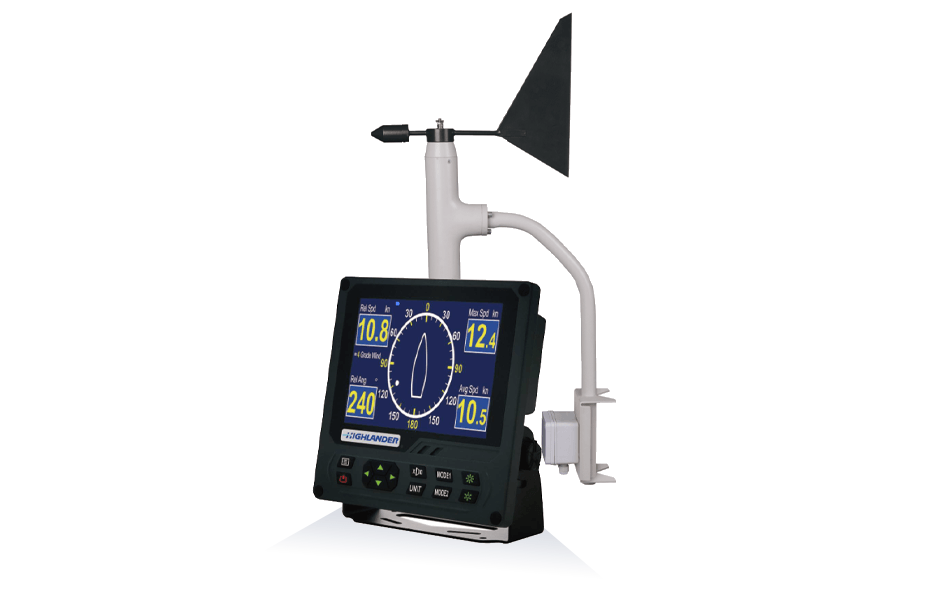

Wind Speed and Direction Indicator HLD-AM 600S
Technical Parameters
Technical Specifications
Technical Specifications
Display:

8-inch TFT, 800×600 pixels

Brightness Adjustment:

Multi-level adjustable

Data Output:

NMEA 0183 sentence output

Wind Direction Accuracy:

±1°

Wind Direction Range:

0~359°

Wind Speed Accuracy:

0.1m/s

Wind Speed Range:

1.2~60m/s

Minimum Start-up Wind Speed:

≤1.2m/s

Power Consumption:

AC 220V / DC 24V, ≤5W

Operating Temperature:

-25°C ~ +55°C

Protection Rating:

Display: IP23, Sensor: IP56

Gross Weight:

12kg

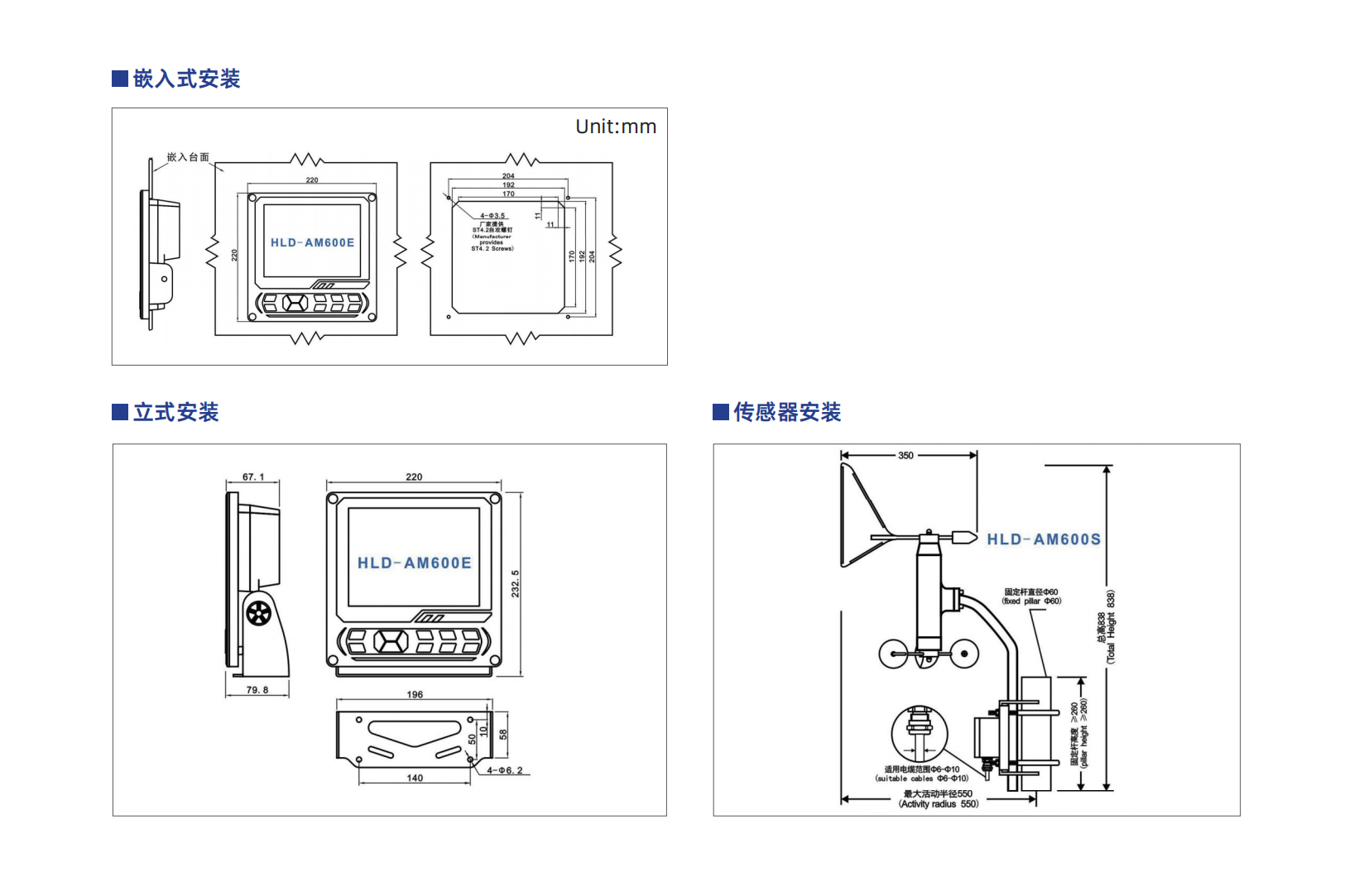

Dimension Diagram
Dimension Diagram
