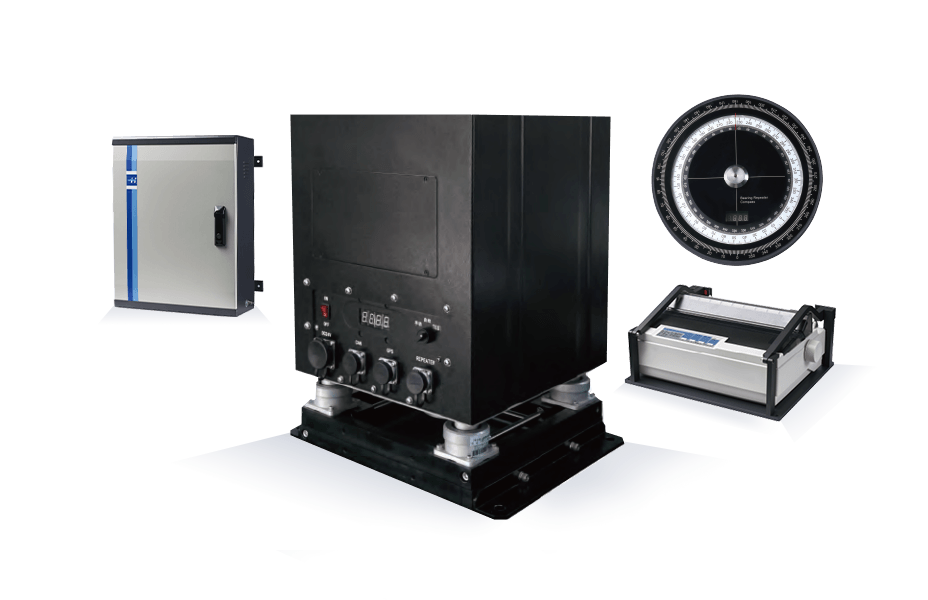

Marine Gyrocompass HLD-GC 100-Highlander

Product Overview

The HLD-GC 100 type marine gyrocompass is a newly developed digital marine navigation product jointly developed by Hyland and CSIC 455 Factory in strict accordance with the latest IMO specifications, drawing on more than ten years of practical ship application experience of previous products. As the first domestically produced gyrocompass compliant with the international standard ISO 8728-1997 and certified with CCS type approval in China, this product also meets the relevant requirements specified in Chapter 6 of IACS UR E26 Rev.1 and Section 1.4 of the CCS Guidelines for Ship Cybersecurity (2025), making it applicable to the navigation, intelligent and cybersecurity compliance requirements of various types of ships.

Product Features

Compliant with international standards and regulations

The HLD-GC 100 Gyrocompass System fully complies with the IEC 60945 general standard and the ISO 8728-1997 special standard.

Fully digital design

Adopting digital servo control, the heading accuracy reaches ±0.25° × secΦ. All input/output interfaces comply with the IEC 61162-1 standard. Latitude and speed errors are automatically compensated.

Short settling time

Equipped with an inertial navigation device combination, the master gyrocompass automatically presets its initial start-up position to the local magnetic north upon power-on, significantly reducing the settling time. The static settling time is less than 2.5 hours.

High dynamic accuracy

Adopting a unique vibration-damping design and dynamic roll/pitch compensation technology, the dynamic performance of the gyrocompass system is enhanced, with a dynamic accuracy error of no more than ±1° × secΦ.

Multiple application modes

Adopting a modular design, various components can be flexibly combined. The application types are divided into: Compact, Standard, and Redundant.

Easy installation and maintenance

The master gyrocompass features a compact size (380×310×452 mm) and light weight (24 kg). Installation baseline deviations can be corrected via software, reducing installation requirements. No annual onboard inspection is needed; only the gyrosphere needs to be replaced before the master gyrocompass reaches its service life.

Technical Parameters

Master Gyrocompass

Master Gyrocompass (FOG) TF601

Master Gyrocompass (FOG) TF605

Distribution Unit

Operation Unit

Power Supply Unit

Heading Printer

Steering Gear Repeater Compass

Bearing Repeater Compass

Steering Repeater Compass

Digital Repeater Display

Master Gyrocompass

Dimensions (L×W×H): 380×322×454mm	Weight (approx.): 27.4kg	IP: IP22
Mounting: Desktop	Input Voltage: DC 24V	Power Consumption: < 60W
Heading Accuracy: 0.25° × secΦ	Dynamic Accuracy: 1.0° × secΦ	Settling Point Error: 0.75° × secΦ
Settling Time: < 2.5h	Gyrosphere Life: 20,000h

Master Gyrocompass (FOG) TF601

Dimensions (L×W×H): 270×212×140mm	Weight (approx.): ≤ 7.2kg (Standard Version)	Supply Voltage: 18-36V (DC)
Operating Temperature: -40°C ~ 65°C	Storage Temperature: -50°C ~ 80°C	Power Consumption: ≤ 20W
Material: Aluminum Alloy	Heading Accuracy: ≤ 0.1°	Pitch/Roll Accuracy: ≤ 0.01°
External Aids: GPS & BDS	Startup Time: ≤ 5s	Alignment Time: ≤ 10min

Master Gyrocompass (FOG) TF605

Dimensions (L×W×H): 270×212×140mm	Weight (approx.): ≤ 7.2kg (Standard Version)	Supply Voltage: 18-36V (DC)
Operating Temperature: -40°C ~ 65°C	Storage Temperature: -50°C ~ 80°C	Power Consumption: ≤ 20W
Material: Aluminum Alloy	Heading Accuracy: ≤ 0.5°	Pitch/Roll Accuracy: ≤ 0.02°
External Aids: GPS & BDS	Startup Time: ≤ 5s	Alignment Time: ≤ 10min

Distribution Unit

Dimensions (L×W×H):

425×360×187mm

Weight (approx.):

9.2kg

IP:

IP22

Mounting:

Wall-mounted

Input Voltage:

DC 24V

Power Consumption:

< 10W

Specifications:

8 x IEC 61162-1 heading outputs, frequency configurable at 1/10/50Hz

8 x digital repeater interfaces

4 x fault contact signal inputs

4 x fault contact signal outputs

Supports GPS/DGPS, serial heading source, and magnetic compass signal input

Adaptive baud rate for serial input signals

Operation Unit

Dimensions (L×W×H):

96×193×54mm

Weight (approx.):

2.74kg

IP:

IP22

Mounting:

Flush-mounted

Input Voltage:

DC 24V

Power Consumption:

< 5W

Specifications:

Heading management

Audible and visual alarms

Adjustable illumination brightness

CAN bus communication

Power Supply Unit

Dimensions (L×W×H):

330×220×120mm

Weight (approx.):

4.2kg

IP:

IP22

Mounting:

Wall-mounted

Input Voltage:

AC 110/220V, DC 24V

Power Consumption:

< 300W

Specifications:

Seamless switching between AC and DC power inputs

Input-output isolation

Power fault contact output

Heading Printer

Dimensions (L×W×H): 390×325×115mm	Weight (approx.): 10kg	IP: IP22
Mounting: Desktop	Input Voltage: AC 220V	Power Consumption: < 25W
Specifications: RS232 communication

Steering Gear Repeater Compass

Dimensions (L×W×H):

222×222×58mm

Weight (approx.):

2.8kg

IP:

IP44

Mounting:

Desktop

Input Voltage:

DC 24V

Power Consumption:

< 6W

Specifications:

Accuracy: 0.1°

Single-dial analog and digital display

Configurable baud rate

Standard IEC 61162-1 input interface

Manual zero adjustment

Adjustable brightness

Bearing Repeater Compass

Dimensions (L×W×H):

Φ245×180(H)

Weight (approx.):

10.5kg

IP:

IP56

Mounting:

Desktop

Input Voltage:

DC 24V

Power Consumption:

< 6W

Specifications:

Accuracy: 0.1°

Single-dial analog and digital display

Configurable baud rate

Standard IEC 61162-1 input interface

Manual zero adjustment

Adjustable brightness

Azimuth ring optional

Steering Repeater Compass

Dimensions (L×W×H):

222×222×57mm

Weight (approx.):

3kg

IP:

IP22

Mounting:

Flush-mounted

Input Voltage:

DC 24V

Power Consumption:

< 10W

Specifications:

Accuracy: 0.1°

Dual-dial analog and digital display

Configurable baud rate

Standard IEC 61162-1 input interface

Manual zero adjustment

Adjustable brightness

Digital Repeater Display

Dimensions (L×W×H):

144×144×49mm

Weight (approx.):

1kg

IP:

IP22

Mounting:

Flush-mounted, Desktop, Wall-mounted

Input Voltage:

DC 24V

Power Consumption:

< 5W

Specifications:

Multi-function digital display

Adaptive baud rate

Standard IEC 61162-1 input interface

Displays heading, turn rate, depth, speed, distance, wind speed/direction, rudder angle, and latitude/longitude

Product Configuration

Standard Configuration

Master Gyrocompass: 4201	Distribution Unit: 4202	Operation Unit: 4204
Power Supply Unit: 4203

Optional Accessories

Heading Printer: 4205	Bearing Repeater Compass: 4210	Steering Gear Repeater Compass: 4211
Steering Repeater Compass: HLD-RP200	Digital Repeater Display: HLD-MD100	Signal Distributor (1-in-16 / 2-in-8): HLD-DU220
Rate of Turn Indicator: HLD-ROT 100

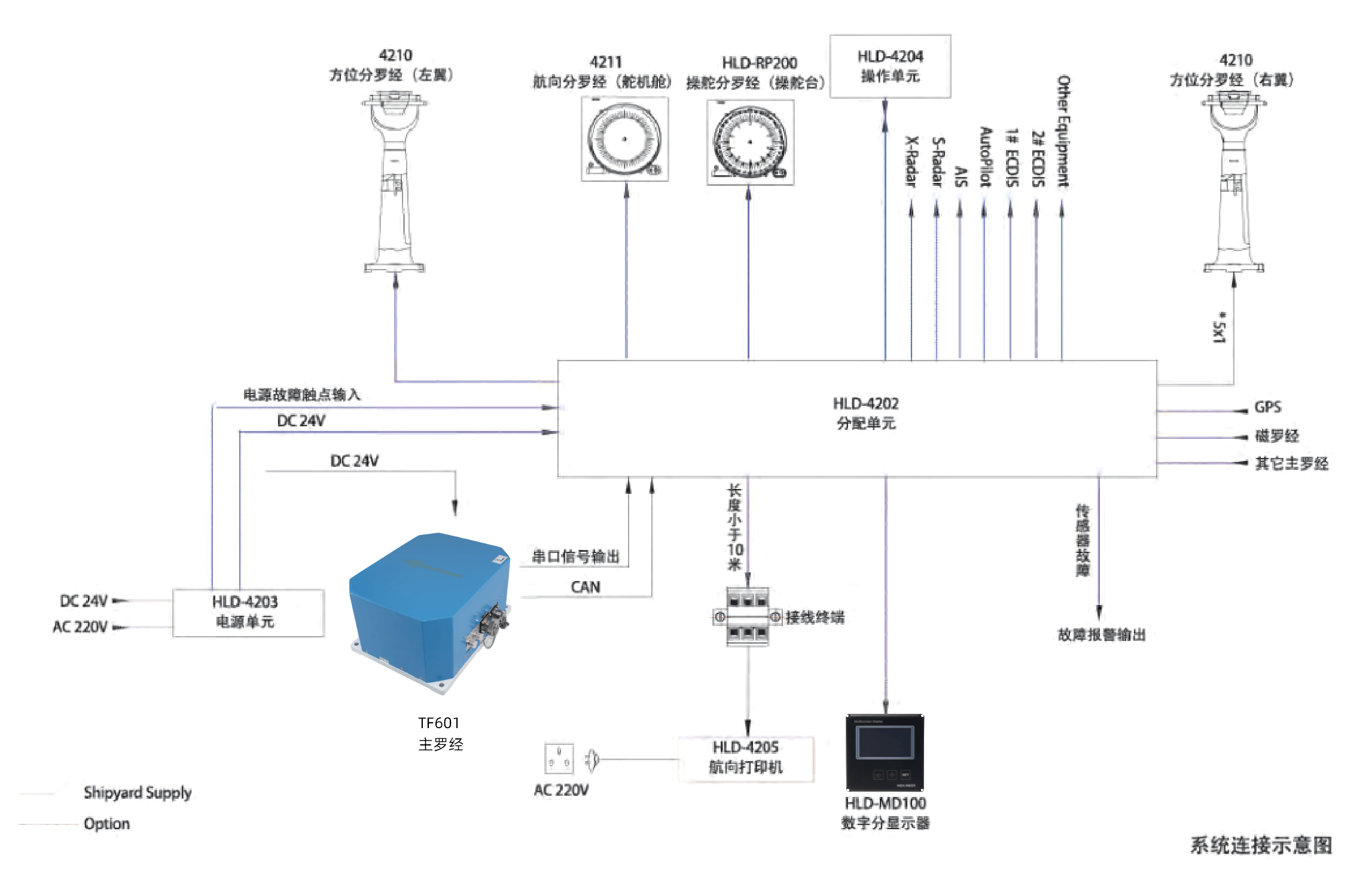

Product System Diagram
