Voyage Data Recorder Ship Data Integration Platform HLD-VDR 700-Highlander

Product Overview

Based on the data functional advantages of VDR, we integrate more data sources, enhance informatization, and support intelligent development.

Reduce redundant cabling for intelligent systems, lowering construction and service costs.

High-capacity storage: In addition to standard fixed, float-free, and long-term recording units, an expanded storage capacity of up to 4TB onboard or cloud-based storage is available.

Provides data distribution and remote data download functions, supporting shipowners in achieving remote monitoring and data re-application.

Product Features

Compliance

The product complies with the requirements of standards including IMO A.861(20), MSC.333(90)/MSC.163(78), MSC.493(104)/MSC.494(104), IEC 61996-1:2021/IEC 61996-2, MSC.302(87), and IEC 60945, and provides VDR basic functions in accordance with the latest specifications.

Reliability

Reliability is ensured through the adoption of industrial-grade chips, embedded software and hardware technology, and a low-power fanless design. The product undergoes strict factory testing and is backed by a global service network, providing attentive and timely support.

Efficiency

The system is compatible with the installation and wiring methods of other VDR models, enabling quick replacement. Configuration files can be imported and exported via USB drive, reducing installation and service costs. Flexible configuration options are available to meet a wide range of requirements.

Intelligence

The product features powerful data processing capabilities, supports the capture of 4K images, and interfaces with AMS, onboard electronic monitoring, and engine room management systems to acquire a greater volume of ship information.

Independence

Backed by over 20 years of experience in VDR product manufacturing and sales, the product features independent intellectual property rights and a long product life cycle, helping to reduce full-lifecycle operating costs.

Value-added

Optional expansion data acquisition units and remote management modules enable ship data integration platform functions.

Product Configuration

Main Unit MU700

AC 100V–240V power supply, power consumption not exceeding 50W	8-channel MIC, 4-channel VHF	24-channel IEC 61162-1/2 serial data acquisition, 4800 kbps–38400 kbps, configuration-free adaptive baud rate
10 Gigabit LAN interfaces (available)	Built-in long-term storage, recording at least 720 hours of data	2 USB interfaces
Built-in 24V battery, meeting the 2-hour recording requirement after main power supply interruption

Data Acquisition Unit DAU700

64-channel digital switching inputs

Optional 8-channel analog inputs, configurable as ±10V or 0-20mA input

Indoor/Outdoor Microphone MIC600/610

Integrated microphone self-test function

Response frequency: 100 Hz–8 kHz

Float-free Data Recording Capsule FFC600A

Storage time: not less than 48 hours	Meet the special requirements of IEC 61996 for memory banks	EPIRB meets the requirements of IEC 61097-2, MSC.494(104)/MSC.493(104), IMO A.810(19), and ITU-R M.633-3:2004
Watertight at a depth of 10 meters for at least 5 minutes	Capable of floating in any seawater; floats upright in calm seawater	No damage when dropped into seawater from a height of 20 meters

Fixed Protective Data Recording Capsule PDC600

Storage time: no less than 48 hours

Meets the special requirements of IEC 61996 for memory banks

Operation Display Unit OPU700

800x480 resolution, touch LCD screen

Displays faults and alarms; user-friendly human-machine interface

Optional HD Image Acquisition Unit VAU700

Up to 4 channels of DVI/HDMI image data

Maximum resolution: 3840×2160 @ 60 Hz

Optional Expansion Data Acquisition UnitsSI: Serial Input, AI: Analog Input, DI: Digital Input

DAU710: 8 SI, 64 DI	DAU720: 8 SI, 8 AI, 64 DI	DAU730: 16 SI, 64 DI
DAU740: 8 SI, 8 AI

Optional VGA Image Acquisition Unit VAU600

Up to 4 channels of VGA image data

Maximum resolution: 1920×1200 @ 60 Hz

Optional Remote Management Unit RMU700

2 Gigabit Ethernet interfaces

6 RS485 interfaces, 2 USB interfaces

Optional 512GB, 1TB, 2TB, 4TB storage space

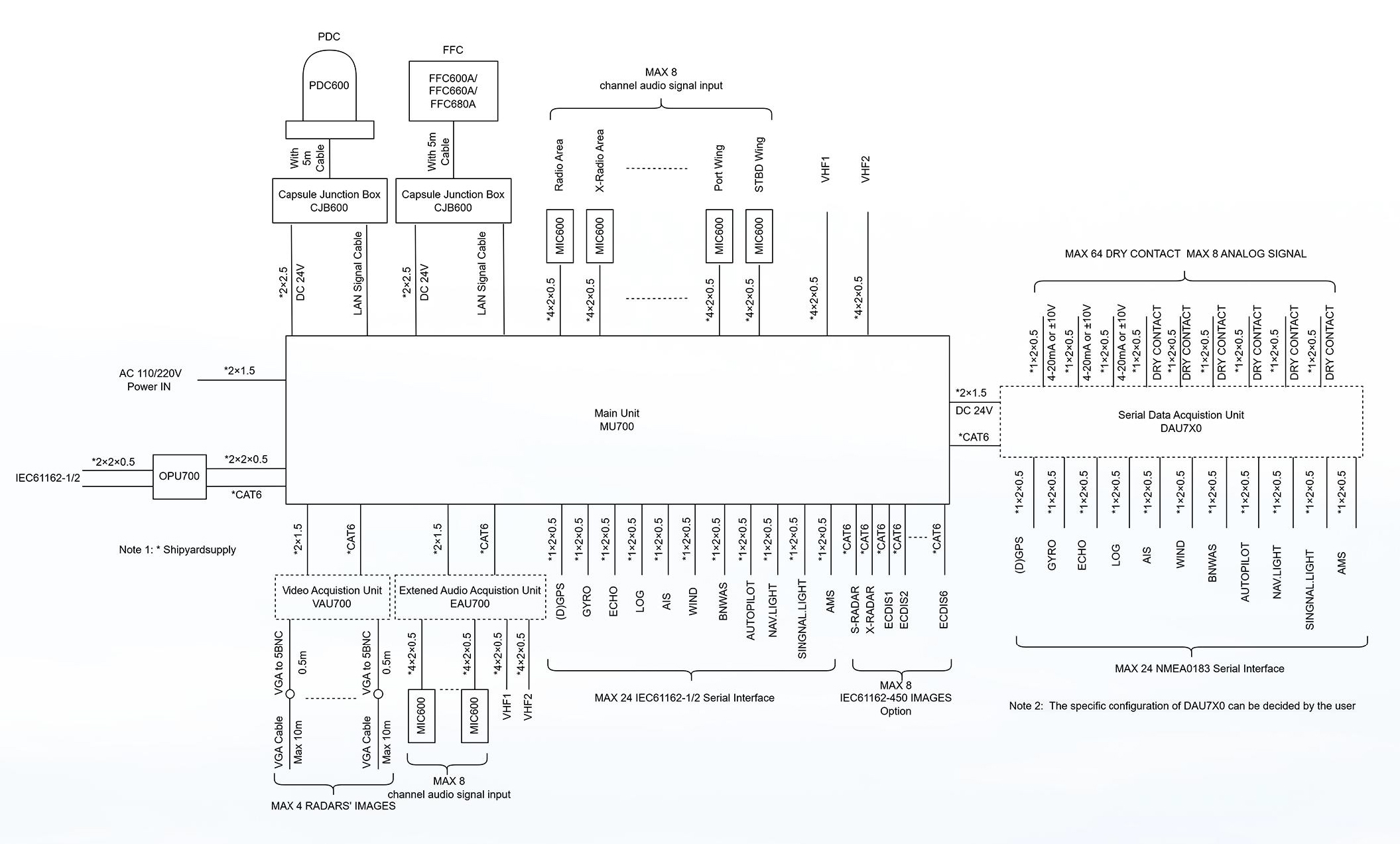

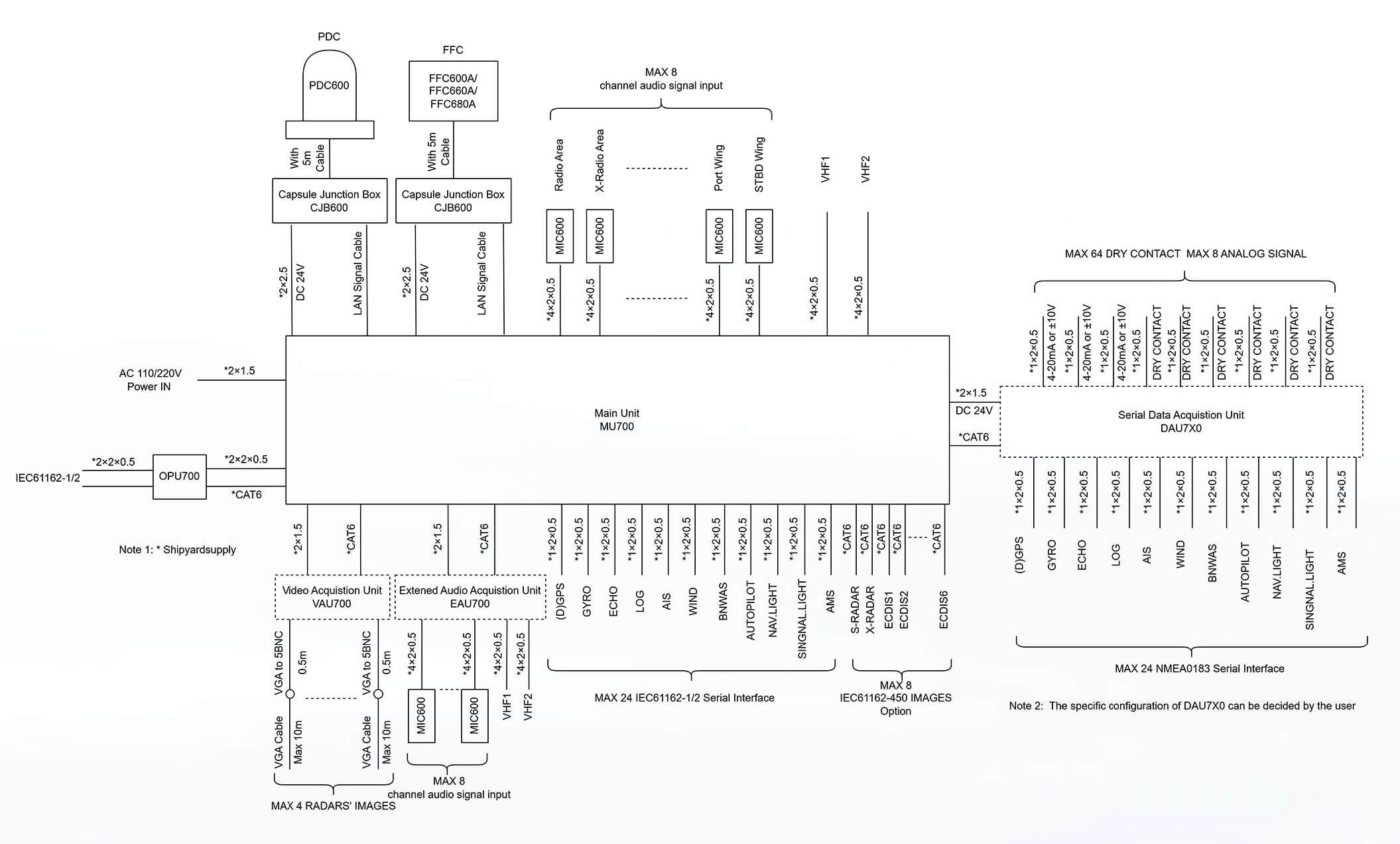

Product System Diagram

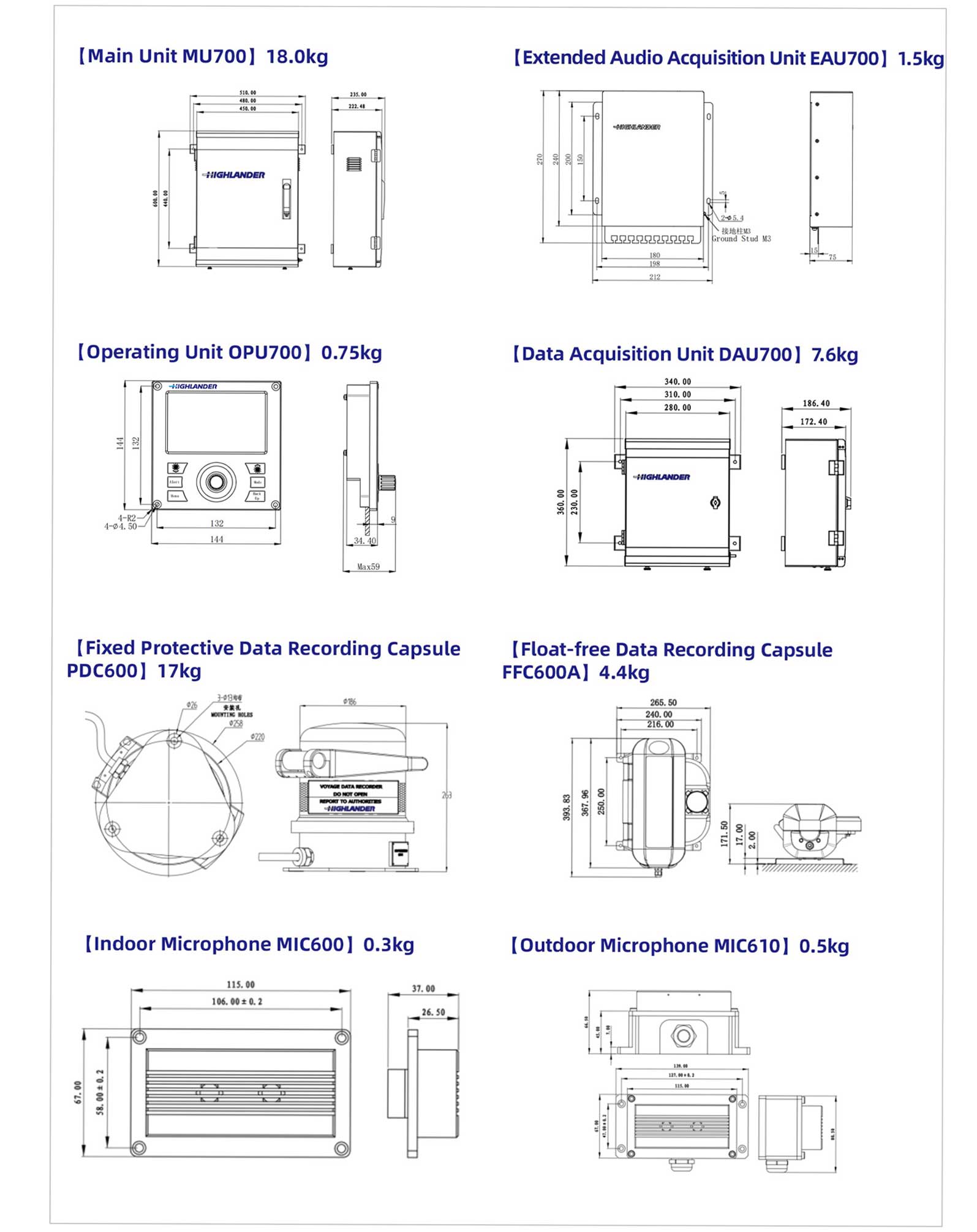

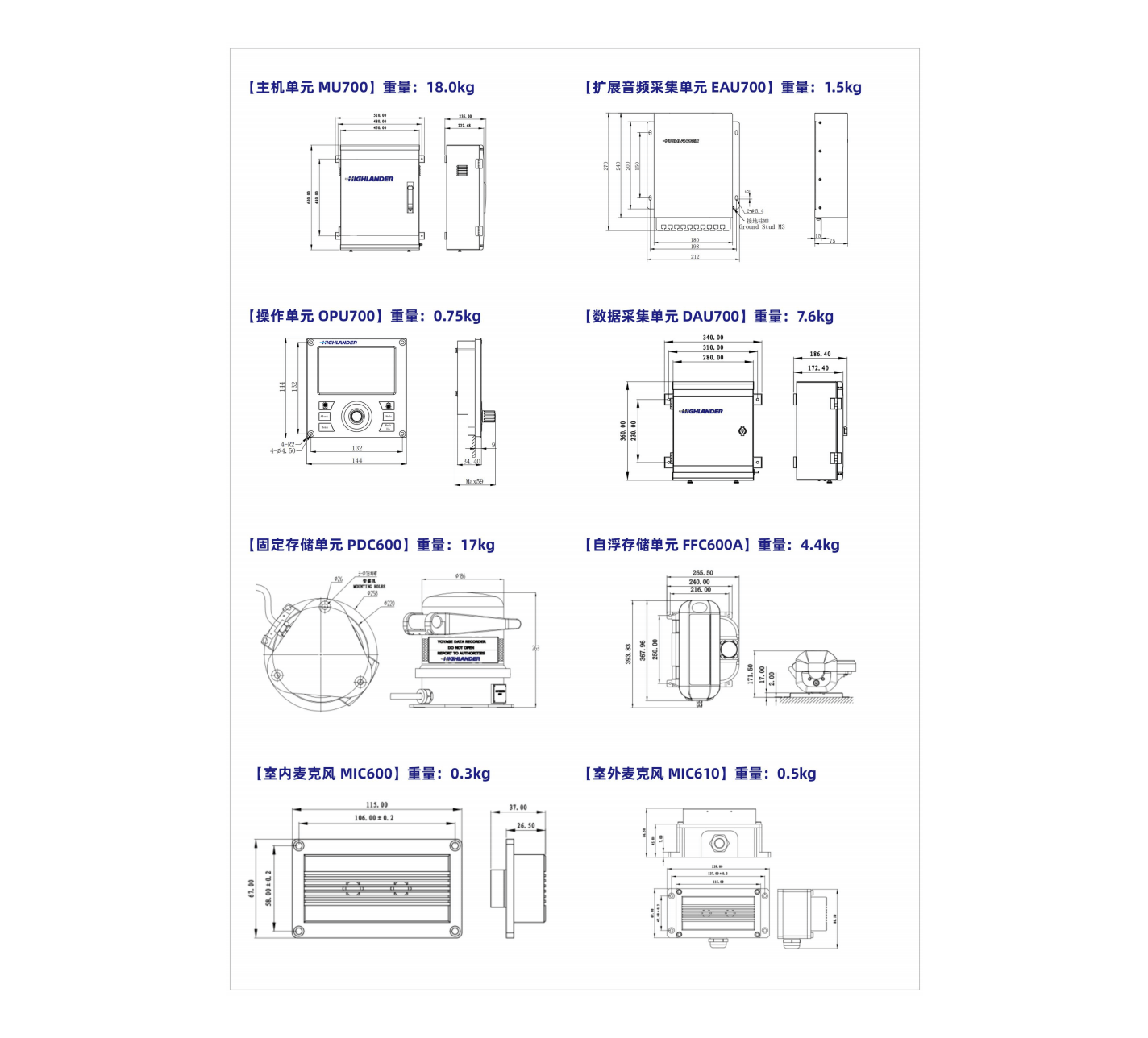

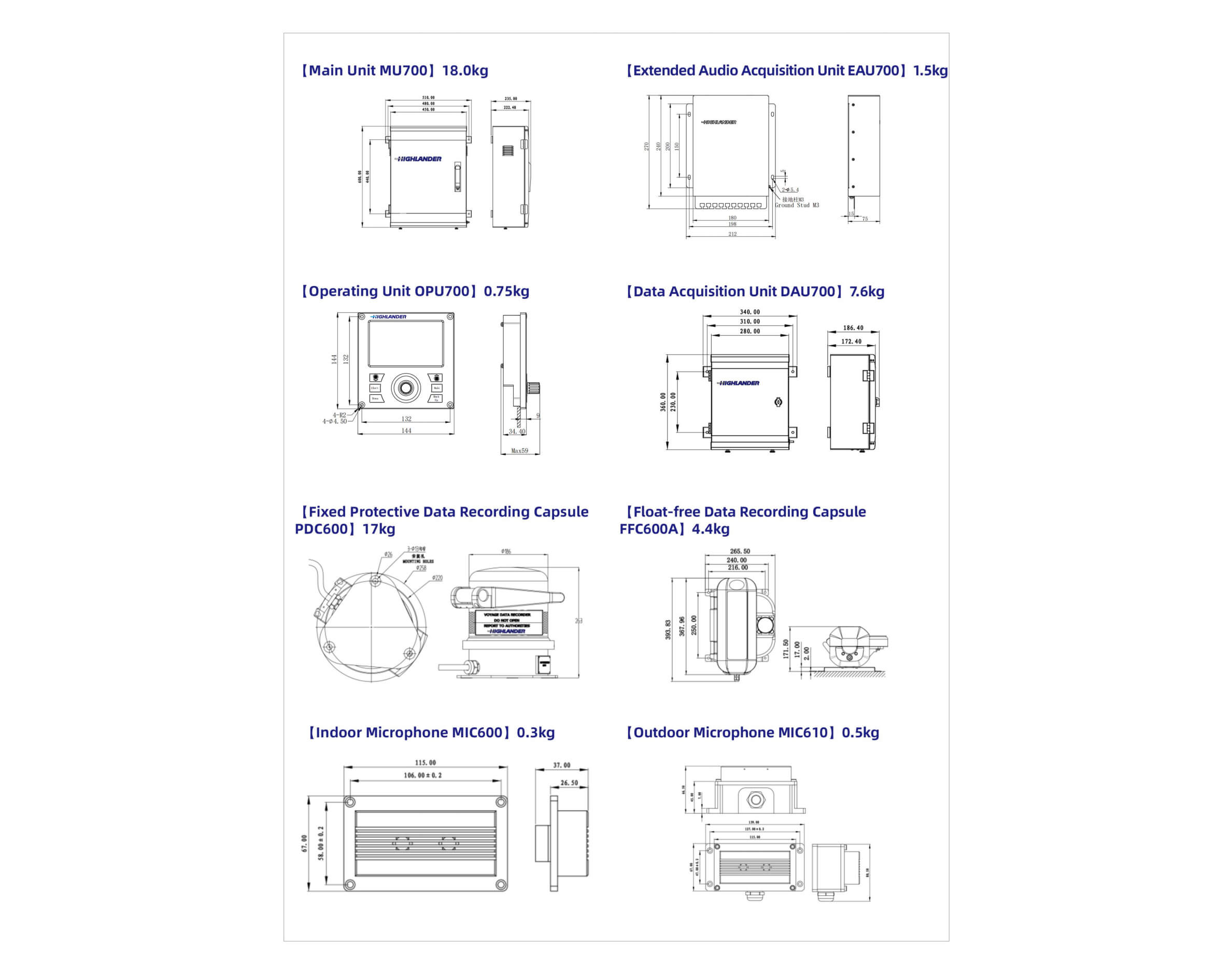

Dimension Diagram
