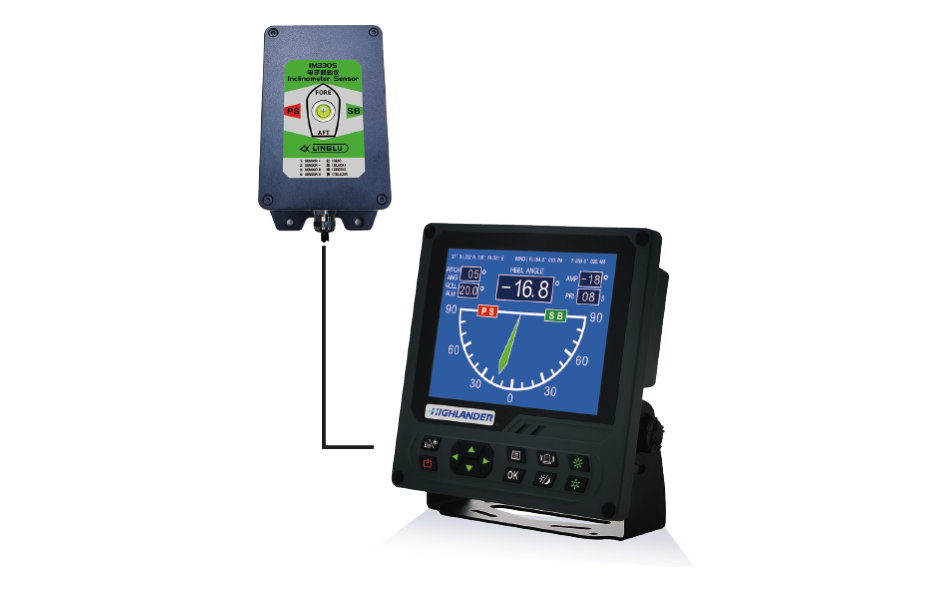

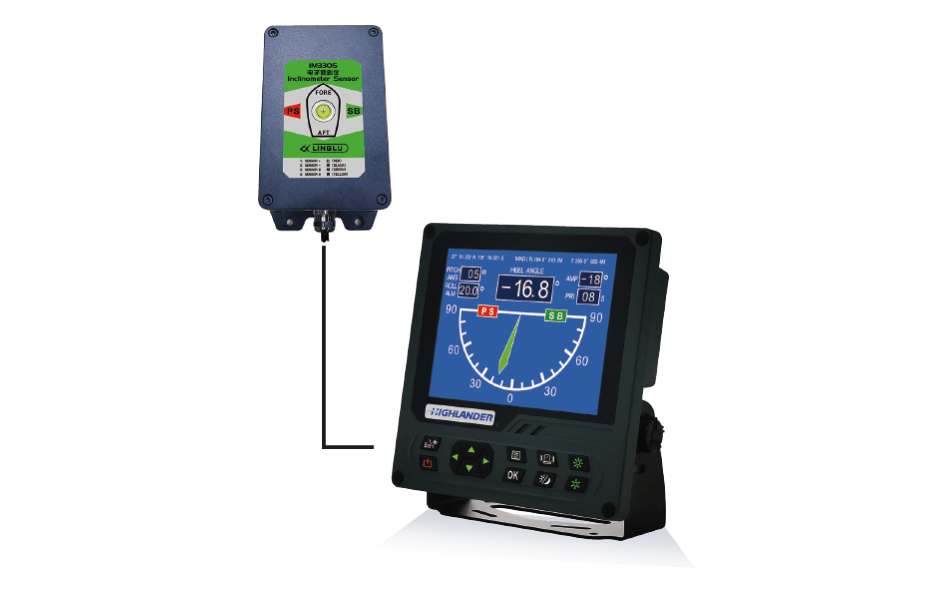

Electronic Inclinometer HLD-EI 600
HLD-EI 600 Electronic Inclinometer
Sales: 18149706718
Maintenance: 18074089111
Related Solutions
Electronic Inclinometer HLD-EI 600
Technical Parameters
Technical Specifications
Technical Specifications
Display:

10.4-inch TFT, 800×600 pixels

Angle Range:

-90° ~ +90°

Angle Accuracy:

±0.1°

Amplitude Range:

-90° ~ +90°

Amplitude Accuracy:

±1°

Period Range:

4s ~ 40s

Period Accuracy:

1s

Alarm Modes:

Roll alarm, system alarm, power failure alarm

Alarm Indication:

Buzzer alarm (defeatable), flashing alarm

External Alarm Sentences:

Output (OUT): HRM, POS, ALR; Input (IN): ACK, DDC, GGA

Protection Rating:

Display: IP23, Sensor: IP67

Gross Weight:

4kg

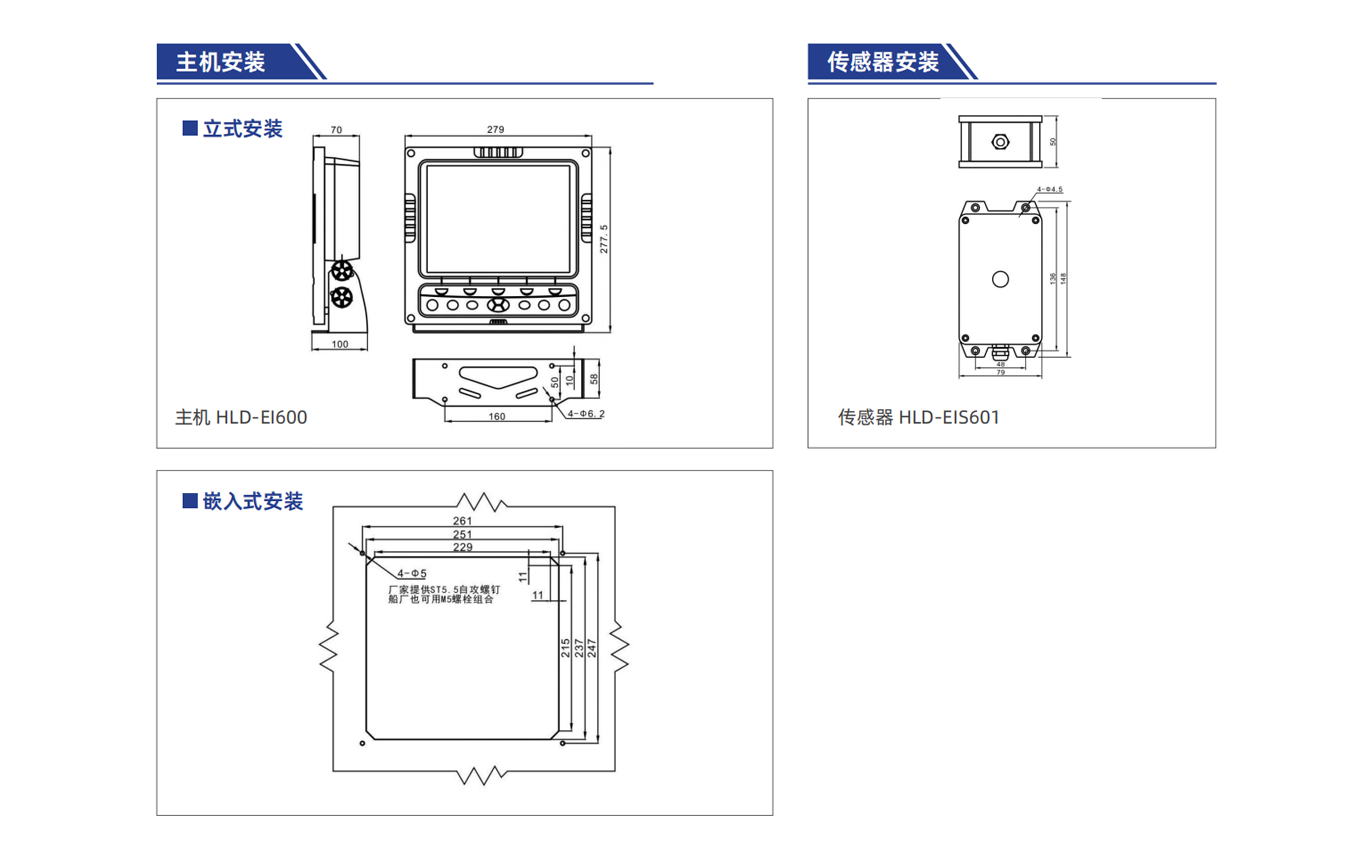

Dimension Diagram
Dimension Diagram
