Solid State Navigation RADAR HLD-RADAR 900S
Home Products & Services Navigation Products FULLY AUTOMATIC WORKING RADAR HLD-RADAR 300
Product Features Product Configuration Product System Diagram Dimension Diagram
Expert Consultation
FULLY AUTOMATIC WORKING RADAR HLD-RADAR 300
Easy and convenient installation, automatic target acquisition
Sales: 18149706718
Maintenance: 18074089111
Related Solutions Downloads
FULLY AUTOMATIC WORKING RADAR HLD-RADAR 300
Product Features
DIM Auto-Dimming + Co-frequency rejection
DIM Auto-Dimming + Co-frequency rejection
Target Tracking (Manual/Automatic, Target Capture & Tracking)
Target Tracking (Manual/Automatic, Target Capture & Tracking)
IP camera access + Integrated navigation information display
IP camera access + Integrated navigation information display
Distance is measured with a fixed pitch ring/VRM (variable pitch collar)+ Measure the bearing with EBL (Electronic Azimuth Line)
Distance is measured with a fixed pitch ring/VRM (variable pitch collar)+ Measure the bearing with EBL (Electronic Azimuth Line)
True Motion Mode / Relative motion mode
True Motion Mode / Relative motion mode
Vector and trail display
Vector and trail display
Product Configuration
HLD-RADAR 300 Configuration
Antenna:

HLD-AT104/106/108

Transceiver Unit:

HLD-TU106/110

On-board all-in-one machine:

HLD-MCS215

HLD-MCS219 (with HMI Unit)

Optional HLD-RADAR 300 Configuration
HMI Unit:

HLD-IU600

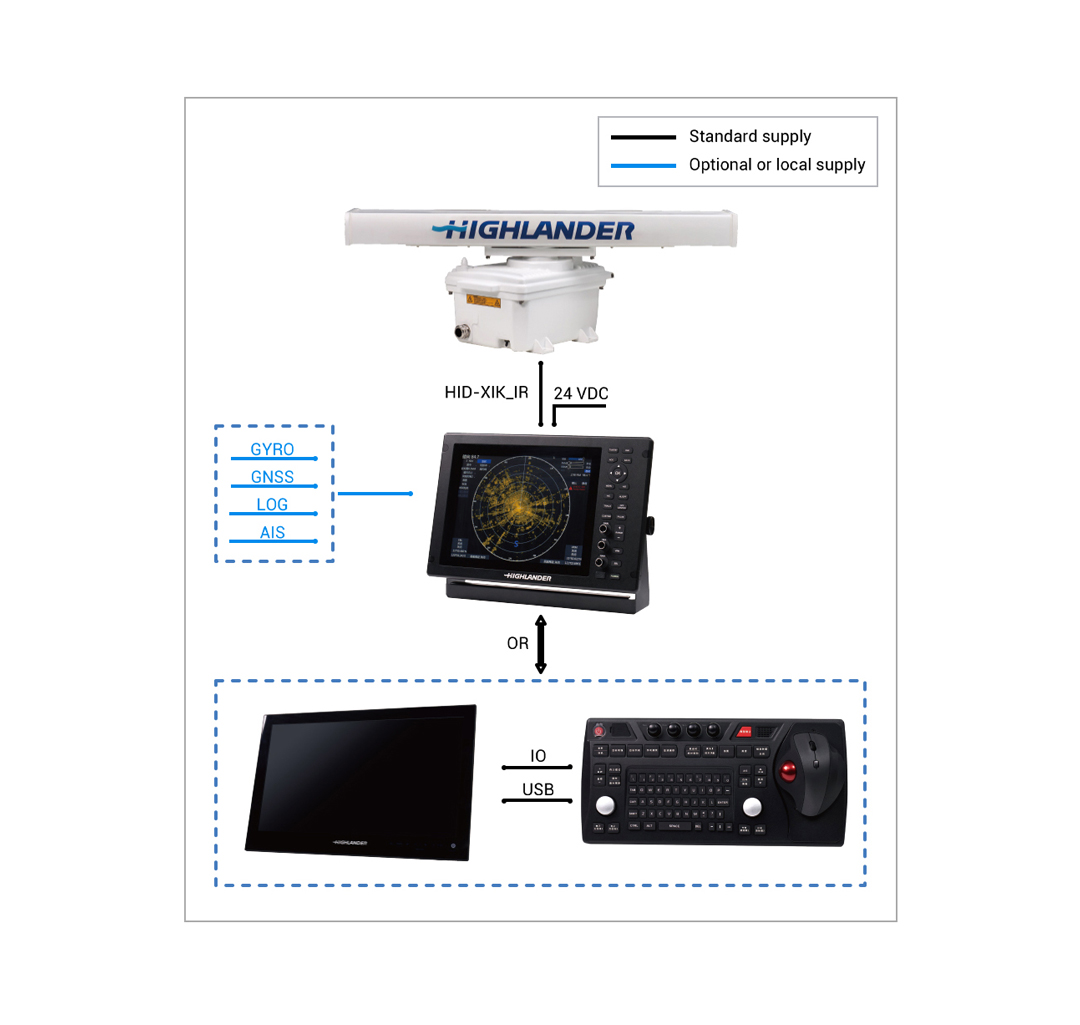

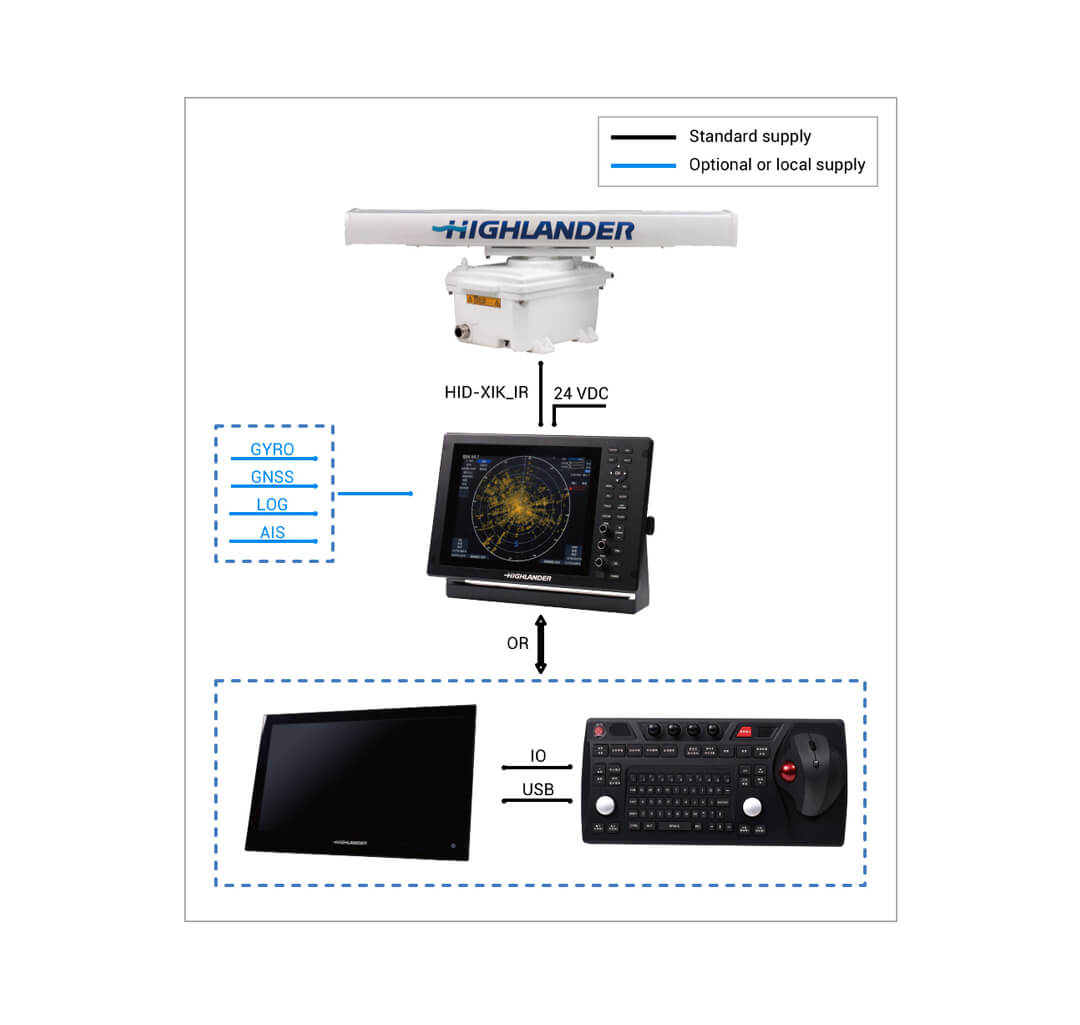

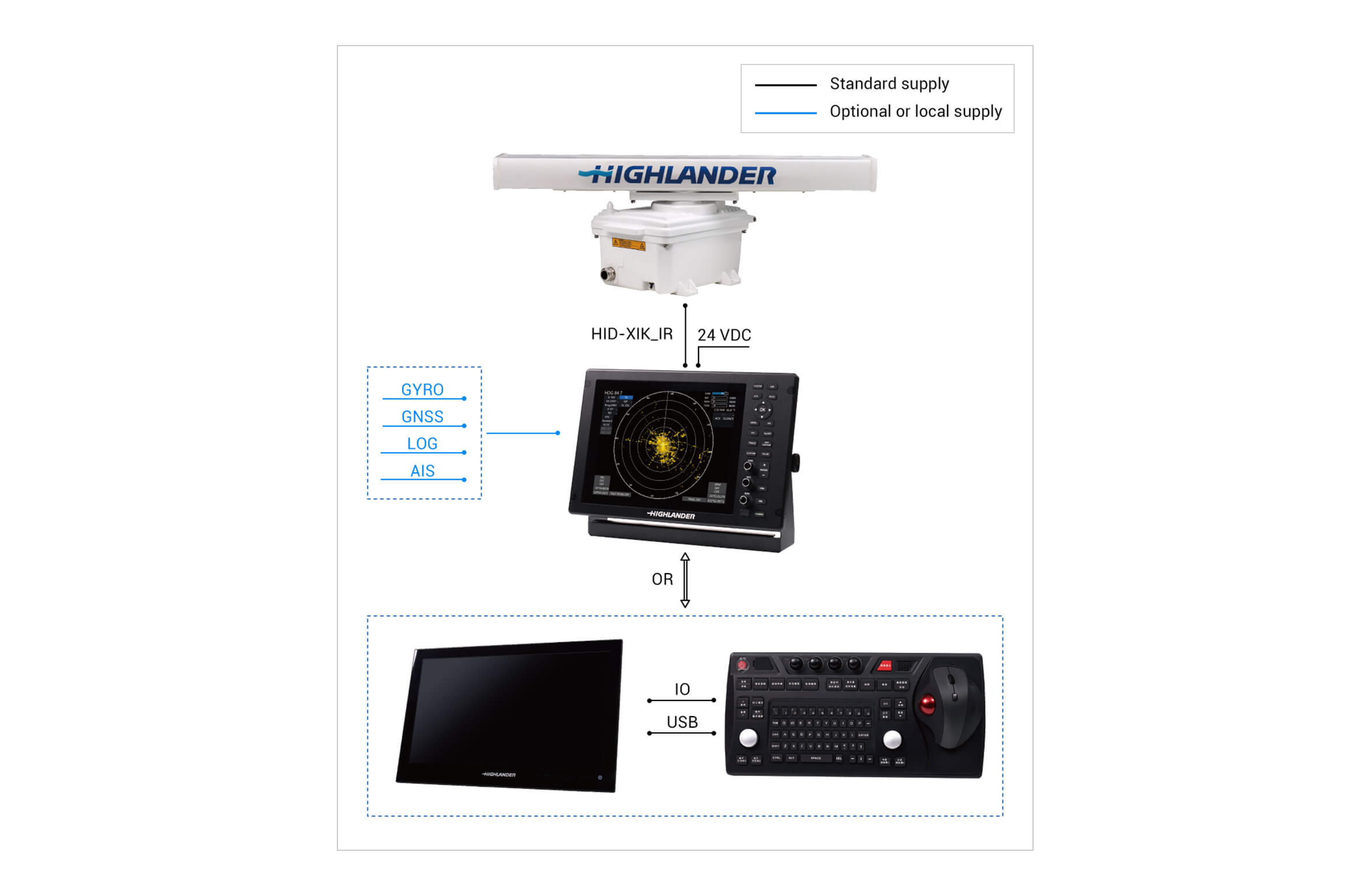

Product System Diagram
Product System Diagram

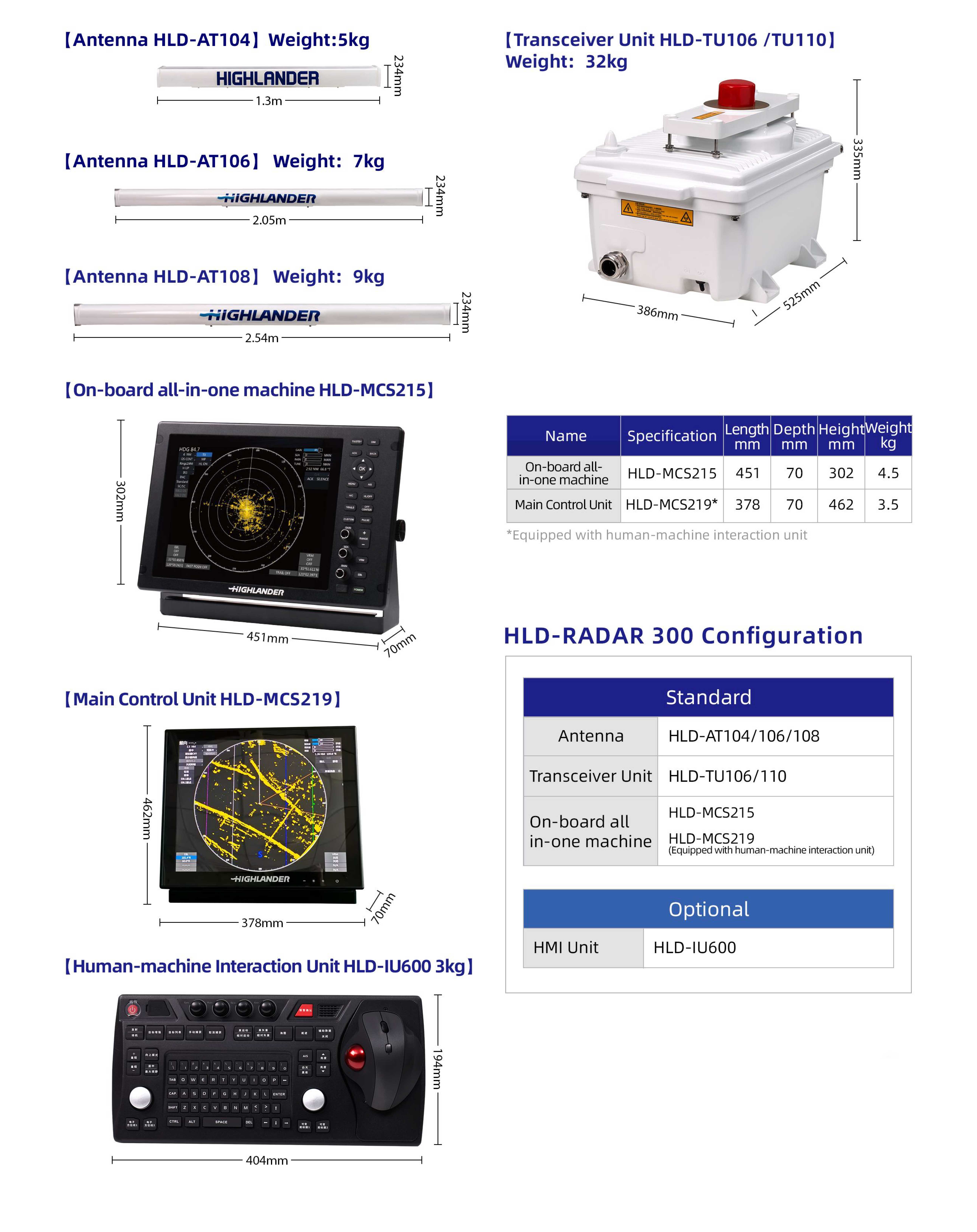

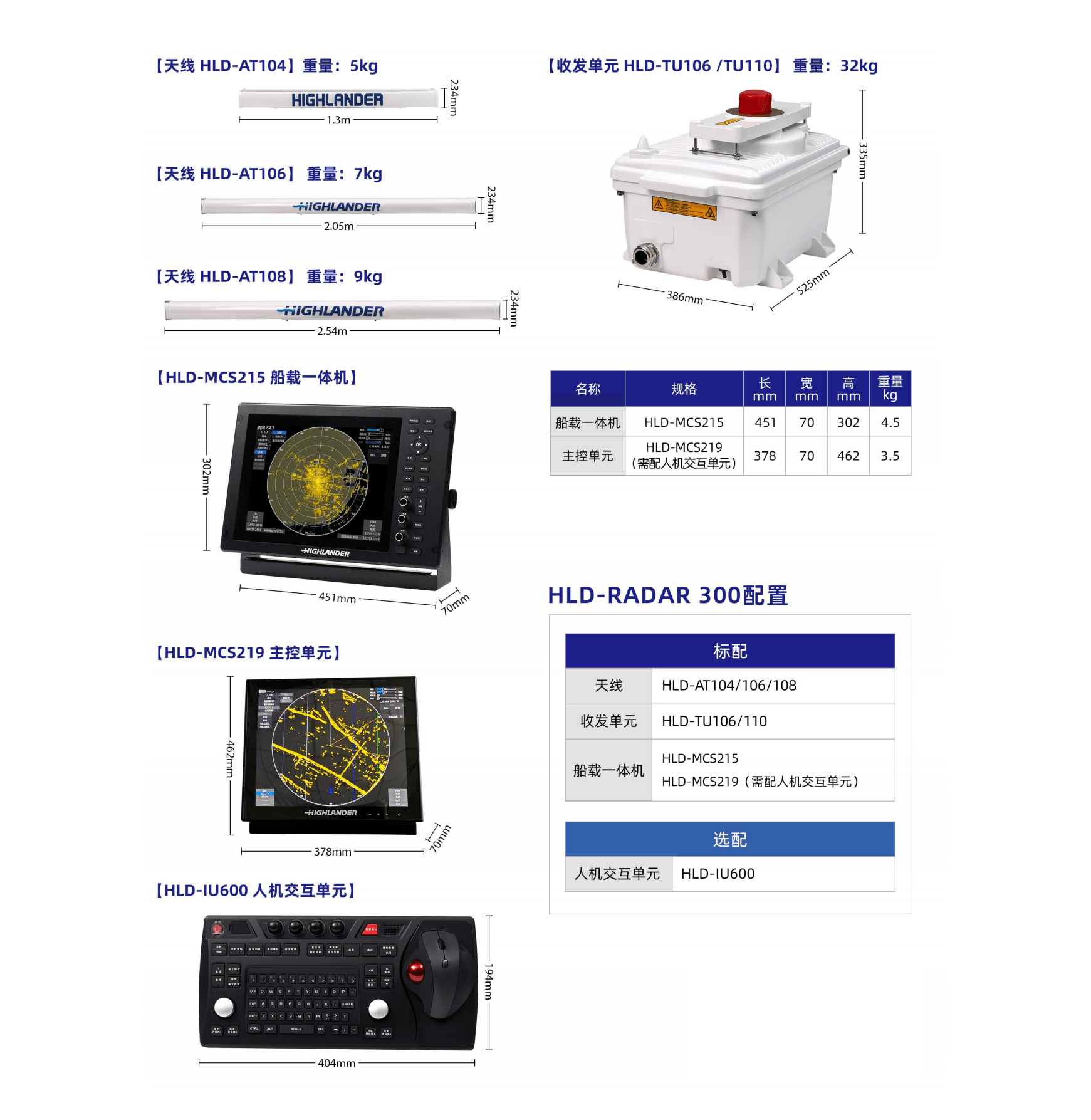

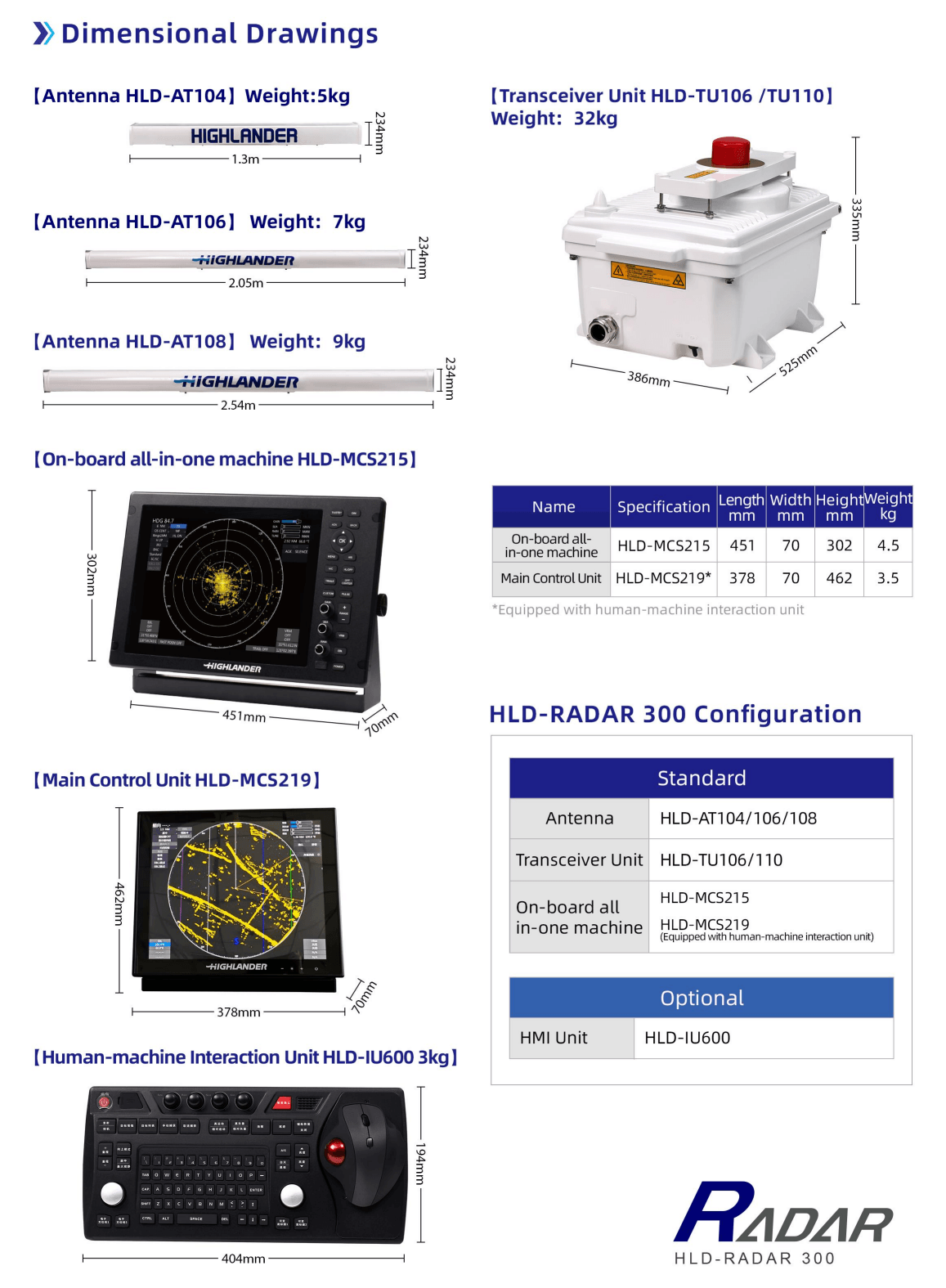

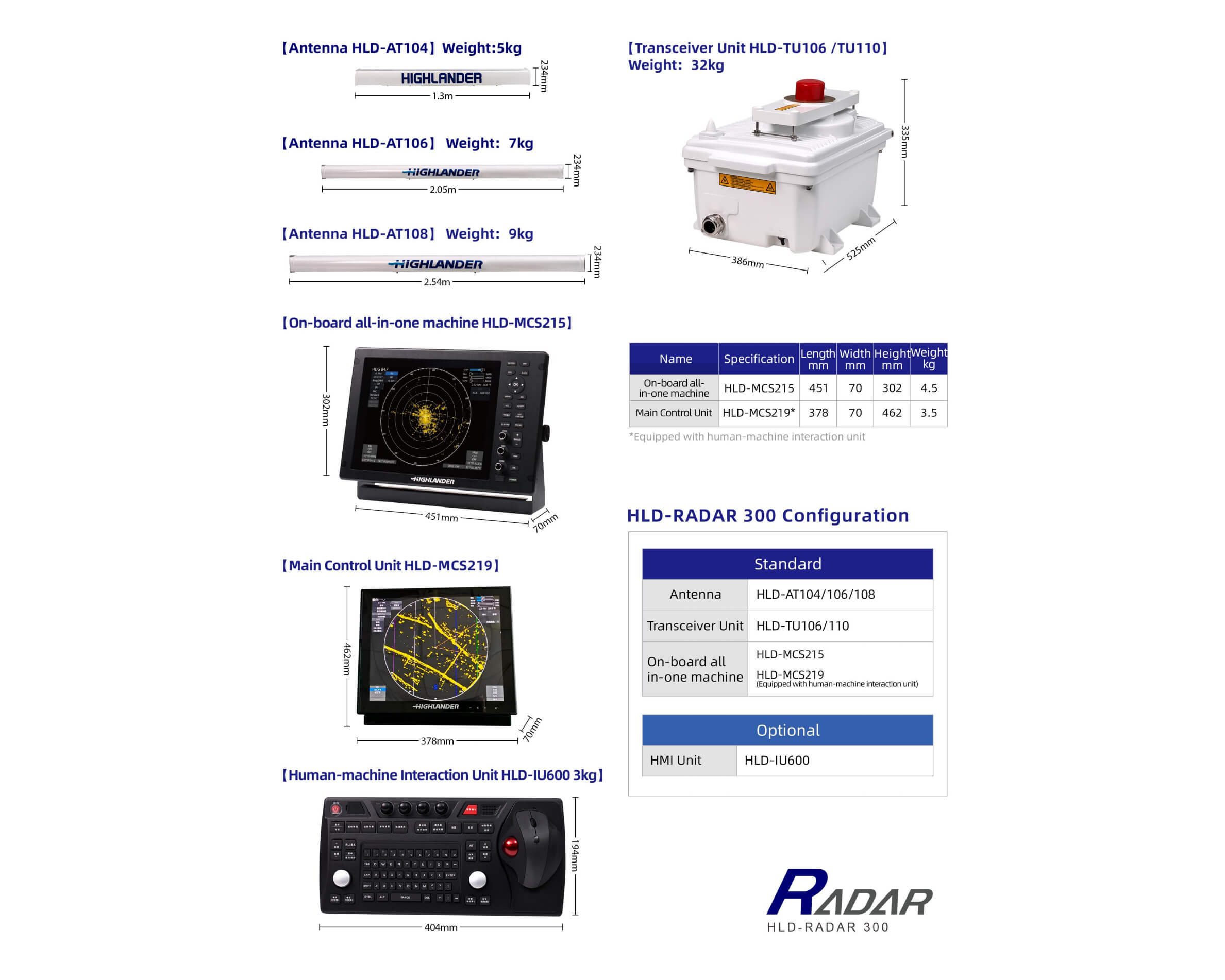

Dimension Diagram
Dimension Diagram
