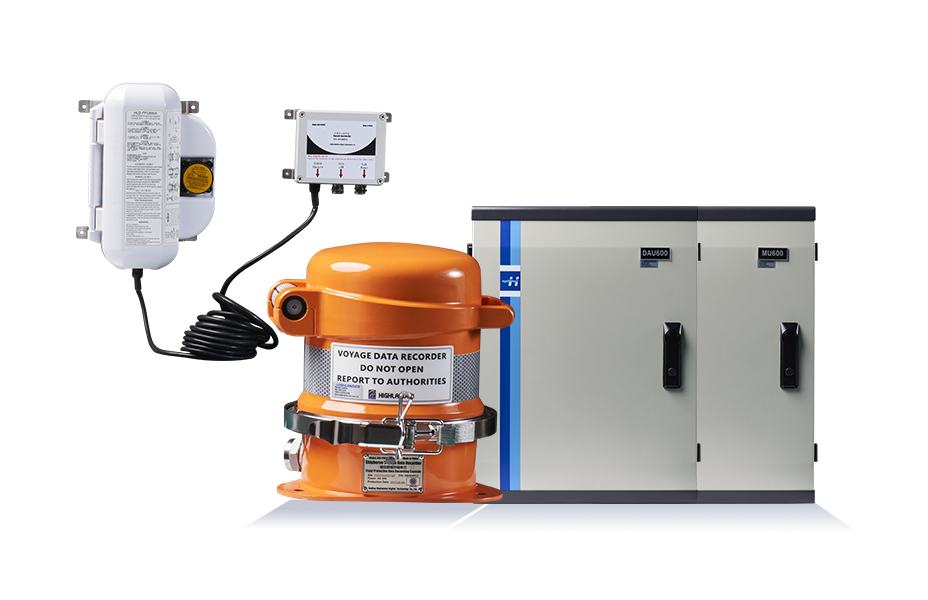

Voyage Data Recorder HLD-VDR 600-Highlander

Product Overview

HLD-VDR 600/SVDR 600 is a Voyage Data Recorder (VDR) developed by Highlander. It is the fruition of nearly two decades of endeavor in the challenging field of maritime black boxes and embodies the wealth of experience gained from VDRs fitted in thousands of seagoing vessels around the World.

HLD-VDR 600/SVDR 600 fully complies with the latest standards including IMO A.861(20), MSC.333(90), MSC.163(78), IEC 61996-1:2013, IEC 61996-2, IMO MSC.494(104), IMO MSC.493(104) and IEC 60945, and has obtained multiple certifications including DNV-GL, RS, and CCS.

Product Features

High Reliability

All modules are based on embedded operating systems, ensuring long-term stable operation of the system.

Easy Installation

The compact size and lightweight design make it suitable for installation on various types of vessels.

Flexible Configuration

Independent image, serial data and non-standard data acquisition modules can be flexibly configured as required, effectively reducing costs.

Strong Adaptability

Supports multiple data acquisition modules and a large number of signal inputs, meeting the recording requirements of various vessels.

Advanced Interfaces

Supports network-based acquisition of radar images, electronic chart images and related information.

Data Security

Multiple encryption and protection measures are adopted for the data, effectively preventing deletion or tampering.

Technical Parameters

Main Unit

Operation Unit

Long-term Data Storage Unit

Self-floating Data Storage Unit

Image Acquisition Unit

Serial Data Acquisition Unit

Non-standard Data Acquisition Unit

Fixed Data Storage Unit

Microphone Assembly

Main Unit

Power supply: AC110/220V, 50-60Hz; DC24V	Power consumption: <150W	Backup battery capacity: 7Ah; backup time: no less than 2 hours
5-channel audio recording: Up to 8 microphone interfaces, 2 VHF audio interfaces	10 × 100M LAN interfaces, for acquiring radar and electronic chart information, and for connecting user equipment to expand functionalit	Built-in long-term data storage unit, capable of storing 720 hours of data
Dimensions (L×W×H): 600×450×235 mm	Weight: 27 kg	Mounting method: Wall-mounted
IP Protection: IP22	Operating temperature: -15°C ~ 55°C

Operation Unit

800×480 high resolution, touch LCD screen	Displays faults and alarms; user-friendly HMI	Supports data backup operations
Dimensions (L×W×H): 166×164×70 mm	Weight: 0.5 kg	Mounting method: Embedded
IP Protection: IP22	Operating temperature: -15°C ~ 55°C

Long-term Data Storage Unit

Integrated in the main unit	Storage capacity: 512 GB	Operating system: Embedded Linux, high reliability and stability
Data interface: 100M network interface	Operating temperature: -15°C ~ 55°C

Self-floating Data Storage Unit

Storage time: no less than 48 hours	Storage capacity: 32 GB	Operating system: Embedded Linux, high reliability and stability
Meets the special requirements of IEC 61996-2 for protective capsules	Release function meets IMO A.662(16) requirements; automatically released when submerged to 4 meters underwater	EPIRB meets the requirements of IEC 61097-2, IMO A.810(19) and ITU-R M.633-3:2004
Watertight for at least 5 minutes at 10 meters underwater	Capable of floating in any seawater; can float upright in calm seawater	Undamaged after dropping into seawater from a height of 20 meters
Operating temperature: -15°C ~ 70°C

Image Acquisition Unit

Supports up to 4-channel image acquisition, VGA forma	Supports resolution up to 1920×1200×60Hz	Can be installed near the image source
Dimensions (L×W×H): 360×260×150 mm	Weight: 8 kg	IP22
Operating temperature: -15°C ~ 55°C

Serial Data Acquisition Unit

Supports up to 24-channel IEC 61162 format signal input	Baud rate configurable; provides signal status indicator	Dimensions (L×W×H): 360×260×150 mm
Weight: 8 kg	IP22	Operating temperature: -15°C ~ 55°C

Non-standard Data Acquisition Unit

Supports 8-channel analog voltage or current signal acquisition	Supports 64-channel switch signal acquisition, among which 8 channels can be configured as active or passive contact signal acquisition mode as required	Dimensions (L×W×H): 360×260×150 mm
Weight: 8 kg	IP22	Operating temperature: -15°C ~ 55°C

Fixed Data Storage Unit

Storage time: no less than 48 hours	Storage capacity: 32 GB	Operating system: Embedded Linux, high reliability and stability
Meets the special requirements of IEC 61996-1 for protective bodies	Dimensions (D×H): Φ180×240 mm	Weight: 17 kg
Operating temperature: -25°C ~ 70°C

Microphone Assembly

Pickup range: 100Hz–12kHz

Indoor: Embedded IP22; Outdoor: Wall-mounted IP56

Integrated microphone self-test function

Specially designed sound chamber to improve recording effect, preserving original recording quality

Indoor: Dimensions (L×W×H): 115×67×33.7 mm, Weight: 0.4 kg

Outdoor: Dimensions (L×W×H): 139×81×64 mm, Weight: 0.5 kg

Operating temperature: -15°C ~ 55°C

Product Configuration

Standard Configuration

Main Unit: HLD-MU600	Operation Unit: HLD-OPU600	Fixed Protective Data Recording Capsule: HLD-PDC600
Float-free Data Recording Capsule: HLD-FFC600A HLD-FFC660A HLD-FFC680A	Storage Unit Adapter Box: HLD-CJB600	Video Acquisition Unit: HLD-VAU600
Serial Data Acquisition Unit: HLD-DAU600	Non-Standard Data Acquisition Unit: HLD-NAU600	Microphone (Indoor): HLD-MIC600
Microphone (Outdoor): HLD-MIC610	Playback Software

Product System Diagram

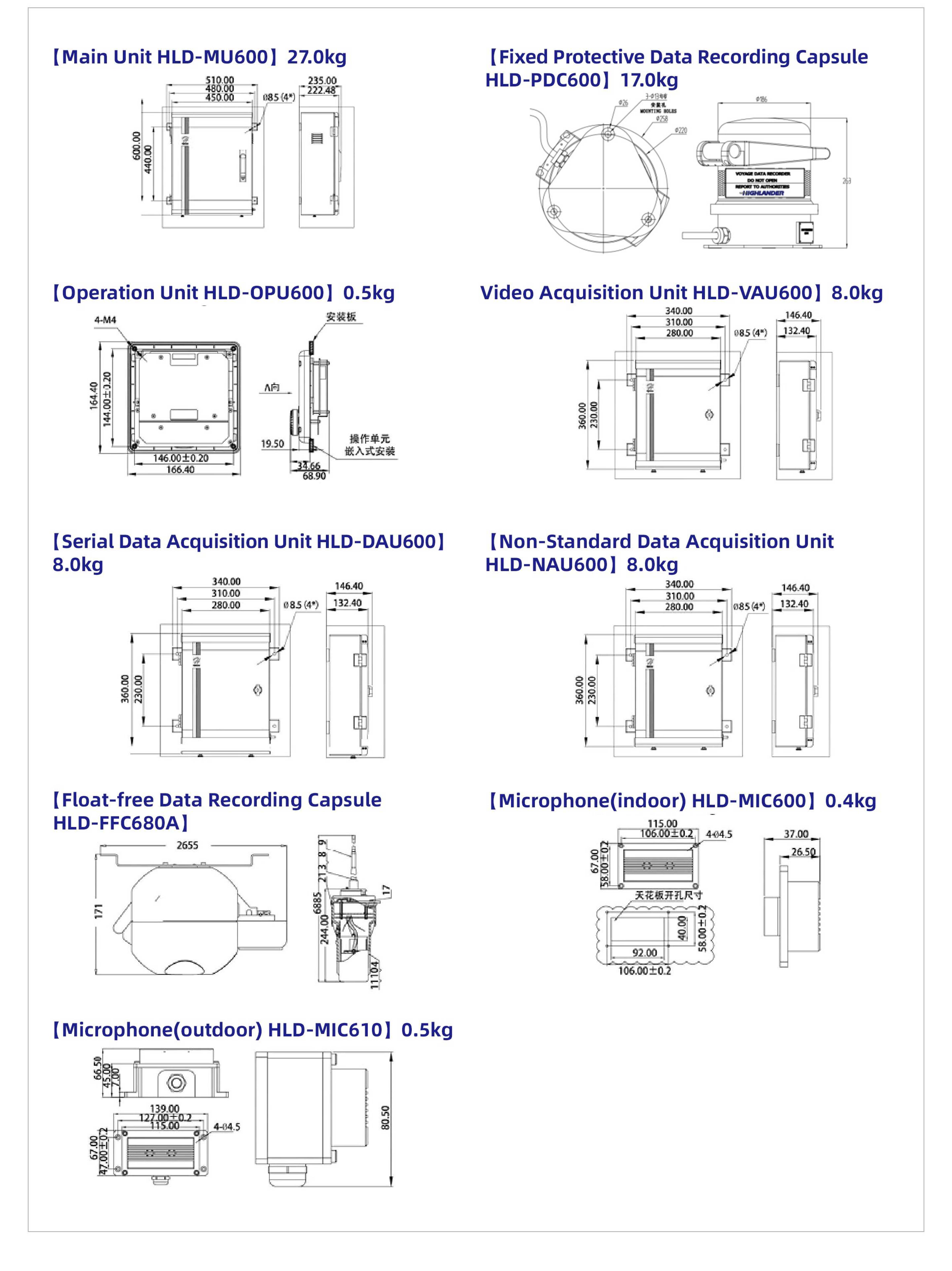

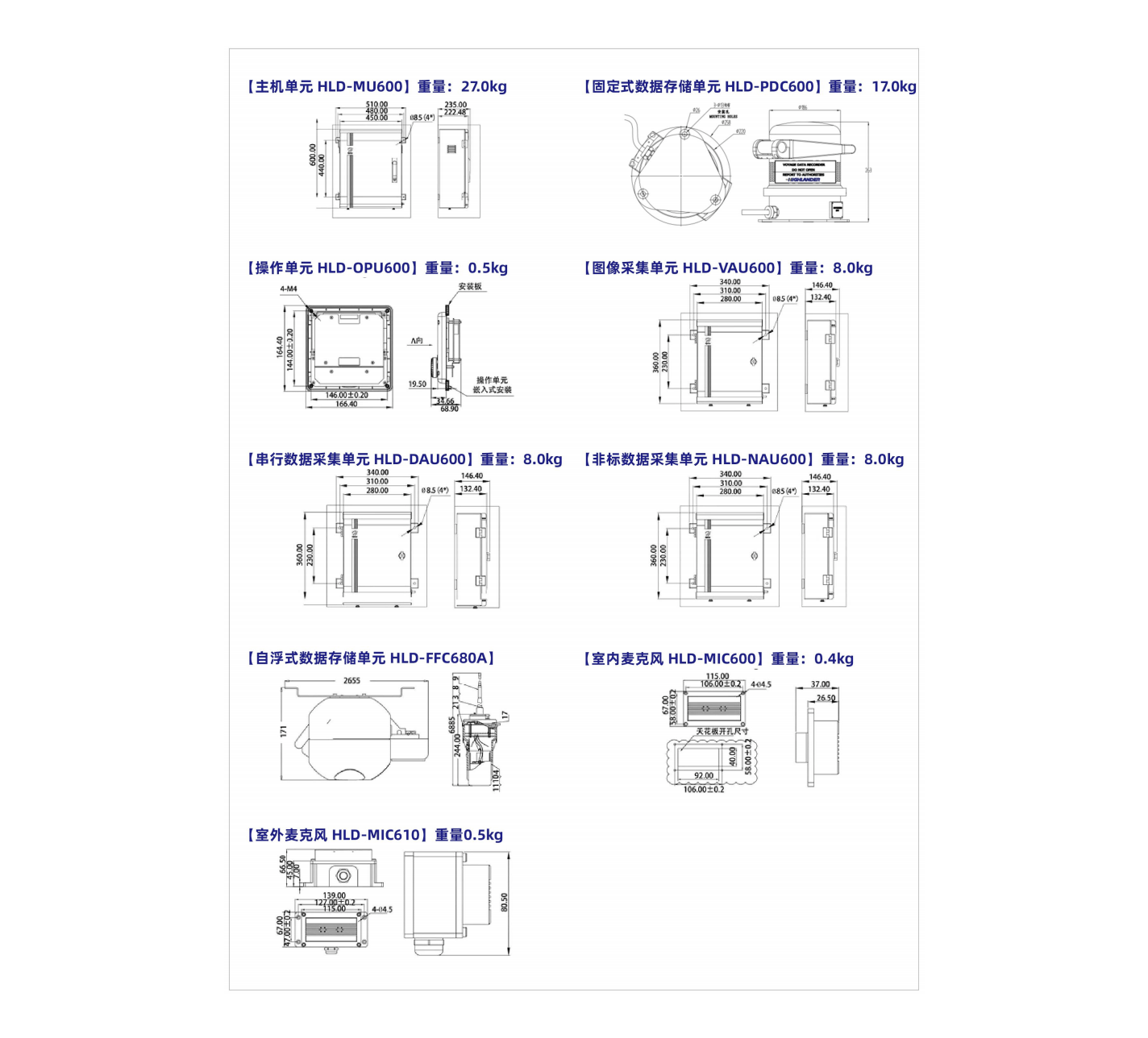

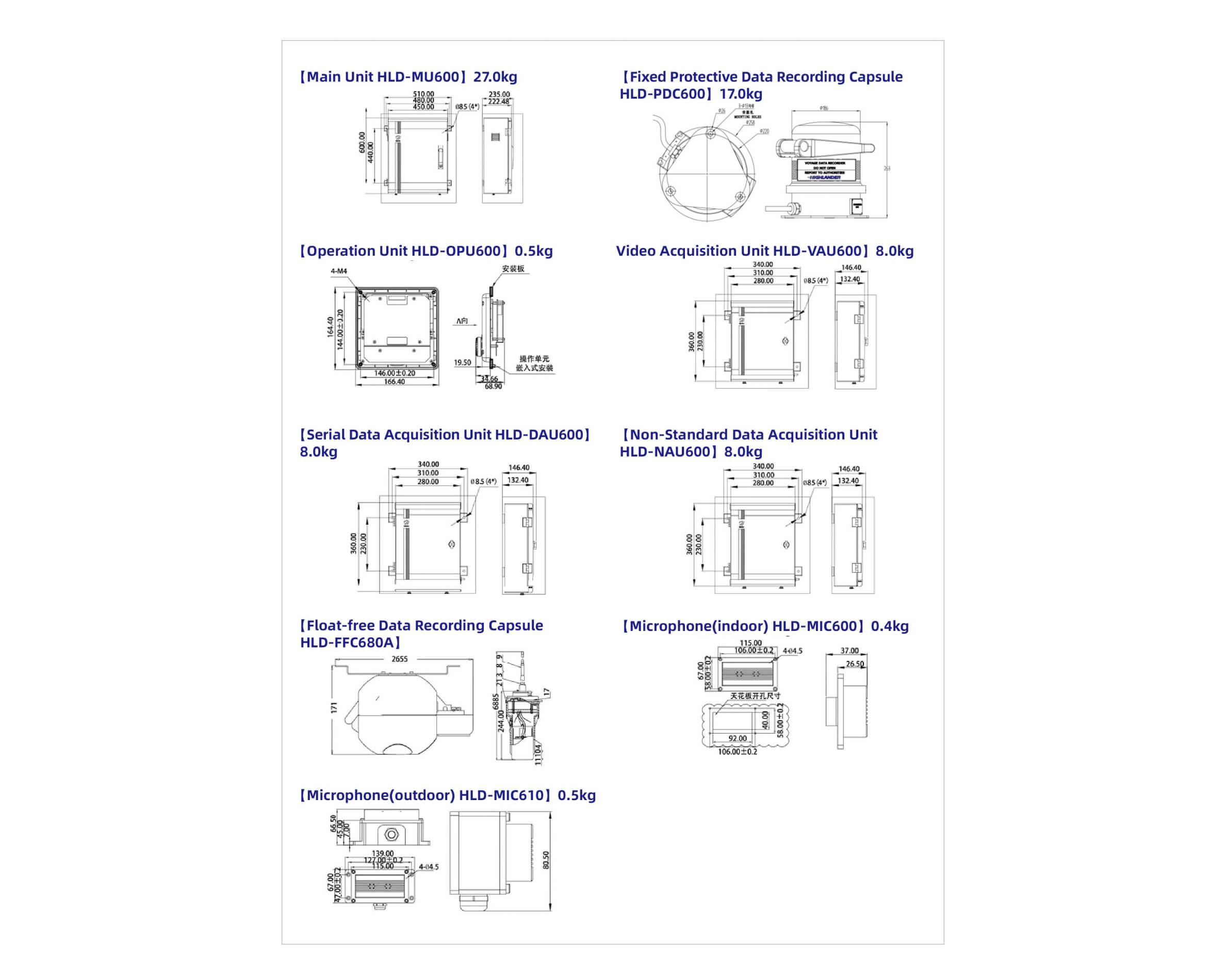

Dimension Diagram
